Infrared Green Fluorescent Fingerprints Extraction System OR-GIR120
Description
The Infrared Green Fluorescent Fingerprints Extraction System OR-GIR120 is an innovative forensic tool designed to revolutionize the way latent fingerprints are detected and visualized. Utilizing a powerful Infrared 980nm light source, this system enhances the visibility of latent fingerprints treated with Anti-stokes fingerprint dusting powders, making them clearly visible in green fluorescence. This advanced technology allows forensic professionals to visualize fingerprints against a wide range of complicated backgrounds, including A4 paper, banknotes, newspapers, invoices, magazines, rough surfaces, leather surfaces, and latex painted walls.
Designed with user convenience and efficiency in mind, the OR-GIR120 features a small friction area at the base, minimizing wear on evidence while ensuring accurate results. Its strong background removal capabilities and high fluorescence contrast ensure that even the most subtle fingerprints can be detected with ease. The system is equipped with a battery level indicator light, allowing users to monitor the battery status and ensure uninterrupted operation during critical forensic investigations.

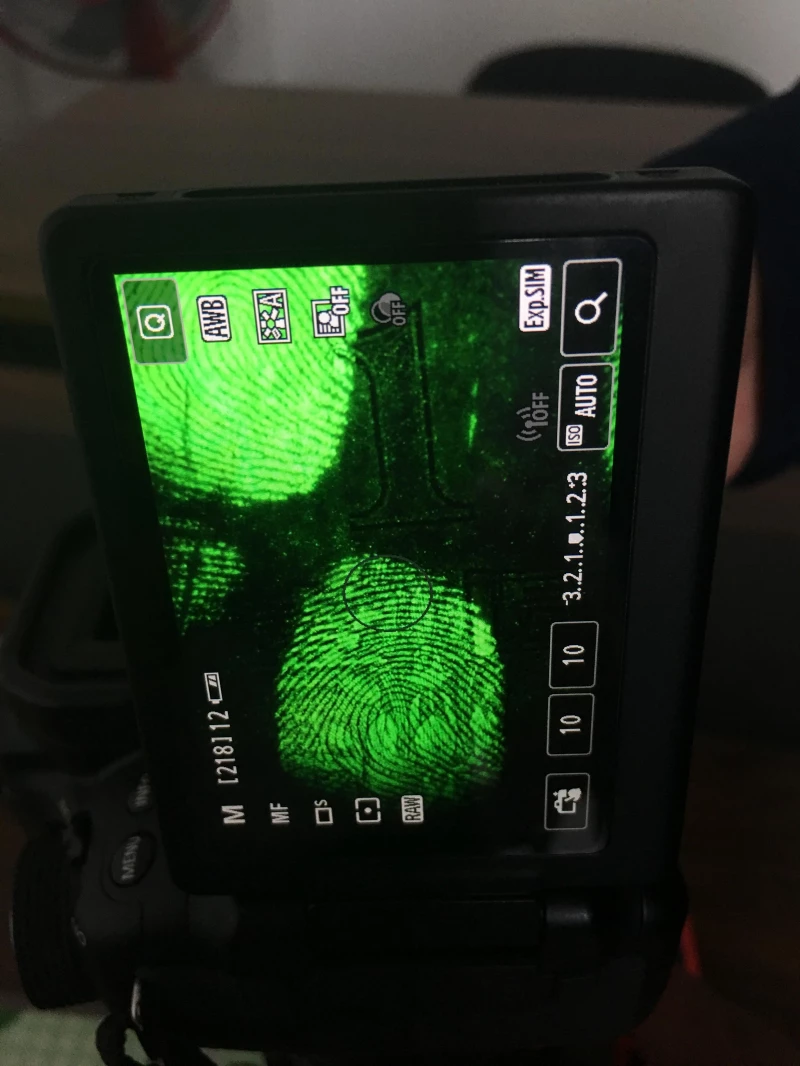

The OR-GIR120 is compatible with camera systems, featuring a φ67mm port for easy attachment of camera lenses. This compatibility, combined with its built-in cooling system, makes the OR-GIR120 an invaluable tool for forensic professionals who need to capture high-quality photographic evidence. The viewing field diameter of over 40mm ensures a broad and detailed view of the evidence, facilitating thorough examination and documentation.
Constructed from durable materials, the OR-GIR120 is built to withstand the rigors of forensic work. It is powered by a lithium battery with a capacity of 2200mA and operates at a voltage of DC16.8V. The system includes a lithium battery charger with a 16.8V / 5A output, ensuring that the device is always ready for use.
Whether in a forensic laboratory or at a crime scene, the Infrared Green Fluorescent Fingerprints Extraction System OR-GIR120 provides forensic professionals with a reliable and effective solution for detecting and visualizing latent fingerprints. Its advanced features and robust design make it an essential tool for any forensic investigation, helping to ensure that critical evidence is accurately captured and analyzed.
Infrared Green Fluorescent Fingerprints Extraction System OR-GIR120
Specifications |
|
|---|---|
| Emission Spectral Range: | 980-980nm |
| Application: | Forensic Analysis |
| Power: | Power 120 W |
| Battery Type: | Lithium battery |
| Battery Capacity: | 2200 mA |
| Battery Voltage: | DC16.8 V |
| Lithium Battery Charger: | 16.8V / 5A |
| Ower Supply: | Li battery & Li battery charger |
| Base Size: | 111x111x92 mm |
| Cylinder Size: | φ90x110 mm |
| Weight: | ≤1.16 Kg |
| Viewing Field Diameter: | >40mm >40mm |
Features
- Infrared 980nm Light Source: Enhances latent fingerprints with green fluorescence
- Minimal Wear: Small friction area to reduce wear on evidence
- High Fluorescence Contrast: Strong background removal for clear visualization
- Battery Level Indicator: Easily monitor battery status
- Camera Compatibility: Equipped with a φ67mm port for camera lens attachment
- Built-in Cooling System: Ensures efficient operation
- Wide Viewing Field: Viewing field diameter greater than 40mm
Applications
- Crime Scene Investigation: Ideal for detecting latent fingerprints on various surfaces
- Document Examination: Effective on A4 paper, banknotes, newspapers, invoices, and magazines
- Surface Analysis: Suitable for rough surfaces, leather, and latex painted walls
- Forensic Laboratories: Essential tool for forensic professionals
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2017
Frequently Asked Questions
The OR-GIR120 is used for enhancing the visibility of latent fingerprints treated with Anti-stokes fingerprint dusting powders. It visualizes fingerprints in green fluorescence, making them detectable against complicated backgrounds such as paper, banknotes, newspapers, magazines, leather surfaces, and painted walls.
The OR-GIR120 uses an Infrared 980nm light source to enhance the fluorescence of treated fingerprints, providing strong background removal and high contrast. This makes it easier to visualize and photograph fingerprints even on challenging surfaces.
The OR-GIR120 is powered by a lithium battery with a capacity of 2200mA and a voltage of DC16.8V. It also comes with a lithium battery charger (16.8V / 5A).
The OR-GIR120 can operate for an extended period on a single charge, thanks to its efficient lithium battery. The exact duration will depend on usage conditions, but the system is designed for prolonged forensic work.
Yes, the OR-GIR120 features a φ67mm port that allows for easy attachment of camera lenses. This compatibility facilitates high-quality photographic documentation of fingerprints.
The base of the OR-GIR120 measures 111x111x92mm, and the cylinder has a diameter of φ90x110mm. The system weighs approximately 1.16kg.
The OR-GIR120 is versatile and can be used on various surfaces including A4 paper, banknotes, newspapers, invoices, magazines, rough surfaces, leather surfaces, and latex painted walls.
Yes, the OR-GIR120 is designed for both laboratory and field use. Its portable design, battery operation, and robust features make it ideal for crime scene investigations and forensic analysis on-site.
