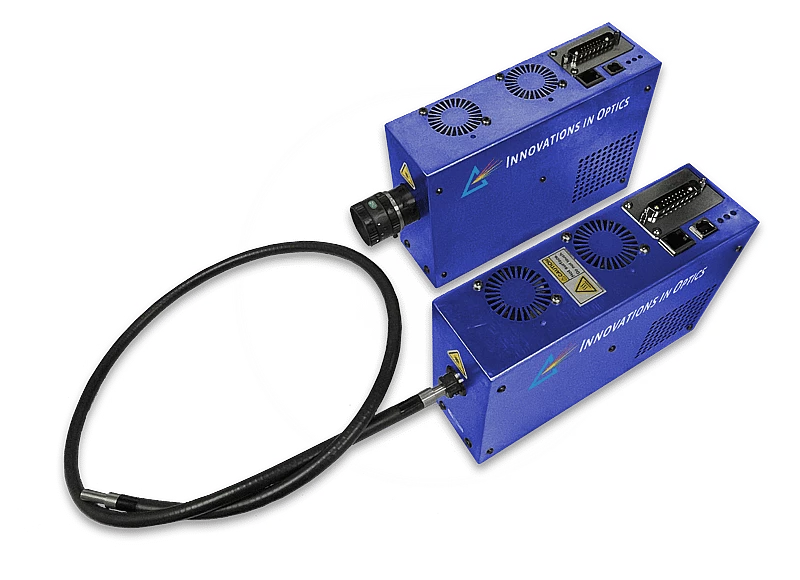

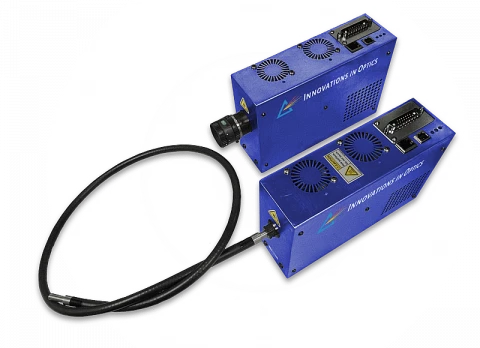

LumiSpectra Light Engine - Innovations in Optics
Description
The innovative LumiSpectra provides a continuous broadband spectrum and high CRI > 95 with individually controllable wavelengths ranging from visible to near IR. IOI’s robust, patented design enables extreme radiance, stability, and long lifetime. Thermal management is handled by proprietary heat sink, board design, and air-cooling to maintain low junction temperatures, allowing higher drive currents and densely packed die arrays.
Two user-friendly options can be operated in CW or Pulsed modes with external trigger and fast rise time. Thus, wavelengths can be turned on one at a time in quick succession. In addition, the LED wavelength distribution can be customized to suit the application.
The output of the fibre coupled option is designed to a standard endoscopic NA of 0.66 and can accept up to 6mm diameter fiber bundles. Remote digital control is enabled by RS-485 interface with Modbus RTU communication protocol. The versatile and powerful LumiSpectra LED device is ideal for numerous applications as a more efficient alternative to Xenon and Tungsten-Halogen lamps. Where maximum photon delivery, illumination uniformity, wavelength selection, and stable optical power are important, LumiSpectra is an excellent choice.
ALRAD Instruments are appointed distributors for a wide range of Innovations in Optics products in the UK/Ireland. Please view our full range here https://alrad.com/collections/innovations-in-optics and contact us directly for enquiries and pricing in this region.
LumiSpectra Light Engine - Innovations in Optics
Specifications |
|
|---|---|
| Emission Spectral Range: | 400-1700nm |
| Application: | Industrial, Commercial, Miscellaneous |
Features
- Two options: optical fiber for up to 6mmm diameter or direct illumination by lens
- Radiant power output > 0.30mW/(nm-mm2-sr)
- Contiguous spectrum 400nm - 990nm
- Extendable to 1700nm
- 12 Individually controllable wavelengths
- Highly uniform far field
- Near field uniformity >90% all λ
- Pulsed or CW
- External trigger
Applications
Medical & Life Sciences
- Endoscopy and diagnostic imaging
- Xenon or tungsten halogen lamp replacement
Industrial & Commercial
- Inspection
- Multispectral illumination
For pricing, technical or any other questions please contact the supplier
