Z-Axis Focusing Units
Frequently Asked Questions

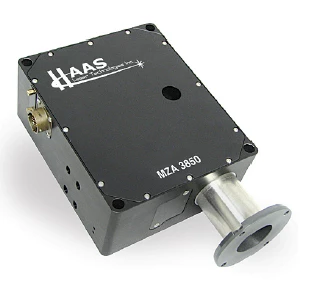

A Z-axis focusing unit is a device that adjusts the position of the laser focal point along the Z-axis (perpendicular to the material surface) in laser engravers, cutters, and other laser material processing machines. It typically consists of a linear motion stage and a focusing lens mounted on it.
An aftermarket Z-axis focusing unit allows for precise control of the laser focus point position along the Z-axis, which is essential for achieving optimal cutting and engraving results on materials of varying thicknesses. Typically, aftermarket z-axis focusing units offer higher precision than those supplied with the laser machines. They might also enable the use of autofocus and height sensing functions, which can improve process consistency and efficiency.
The right Z-axis focusing unit will depend on your specific applications. You should consider whether you need a motorized or a manual unit, the level of precision in the adjustment as well as the ability to interface with a computer. You should also consider factors such as maximum travel range, speed, resolution, repeatability, and compatibility with the laser machine's controller.
Yes, many laser machine manufacturers offer Z-axis focusing units as optional upgrades or retrofits for their machines. There are also third-party Z-axis focusing units that can be retrofitted to a wide range of laser machines.
The accuracy and repeatability of the Z-axis focusing unit are crucial for achieving consistent and precise cutting and engraving results. High accuracy and repeatability ensure that the laser focus point stays on the desired material surface and that the process parameters are consistent from one part to another.
Z-axis focusing units can improve laser material processing speed by allowing for faster positioning and focusing of the laser beam on the material surface. This is especially true when using autofocus and height sensing functions, which can eliminate the need for manual adjustment and increase throughput.
The Z-axis focusing unit controls the laser focus point position along the Z-axis, which determines the cutting or engraving depth. By adjusting the focus position, the Z-axis focusing unit can achieve optimal processing depth for various material types and thicknesses.
Key features when selecting a Z-axis focusing unit include the inclusion of motorized focusing lenses, position sensors, limit switches, and compatible software interfaces. Some units also offer autofocus and height sensing capabilities, as well as programmable control of focus position and speed.
