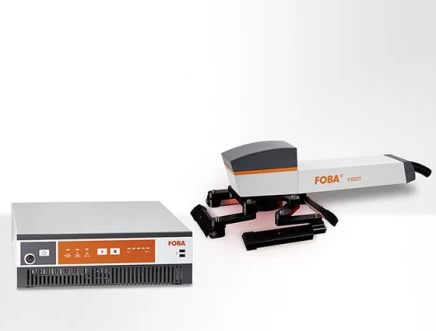

20W Fiber Laser Marker Y.0200
Description
The powerful fiber laser markers in the Y-Series are ideally suited for industrial part marking. They are used in almost all metal and plastic processing industries for precise and efficient direct marking of parts and products: from automotive construction through medical and security technology to electronics.
All kinds of codes (QR codes, DMC / DataMatrix Codes, Barcodes), alphanumeric characters, logos and letterings are marked reliably and highly accurate with fiber lasers.
The vision system which can be optionally integrated in the marking unit, features markings in zero-defect quality and process reliability through automatic optical verification and validation steps.
The Marking Field Calibration as well as parameter sets for optimizing marking speed, quality and accuracy allow optimum adaptation to the respective application.
The modular construction enables highest flexibility, application-specific configuration and easy integration in production lines and stand-alone systems like FOBA fiber laser marking machines: The Y-Series includes 9 different fiber laser sources, spanning power and pulse width ranges on one modular platform.
20W Fiber Laser Marker Y.0200
Specifications |
|
|---|---|
| Work Area X: | 60 mm |
| Work Area Y: | 76 mm |
| Beam Delivery: | Other |
| Laser Source: | Fiber |
| Laser Output Power: | 20 W |
| Laser Wavelength: | 1064 nm (IR) |
| Marking Speed: | 1000 mm/sec |
| Voltage Requirement: | 110V - 60Hz, 240V - 50Hz |
| Materials: | Stainless Steel, Steel/Iron, Steel Alloy, Aluminum, Anodized Aluminum, Brass, Copper, Gold, Silver, Nickel, Titanium, Platinum, Glass, Plastic, Acrylic, Plexiglass, Leather |
| Air Assist: | Included |
| Fume Extraction Unit: | Optional |
| Safety Enclosure: | Not Specified |
Features
- High precision and cost effective production
- Optimum adaptation to application-specific requirements
- Flexible, easy integration and configuration
- Optionally: marking head with integrated vision system
Applications
- Electronics industry
- Automotive industry
- Medical and security technology
- Machine and tool construction
- ID and personalization sectors (personalization of cards, IDs and passports)
- All types of metal markings
- Production of plastics
- Markings that are imprinted when the object is stationary or in motion
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Germany
-
Sold by:
-
On FindLight:
since 2019
Frequently Asked Questions
The Y-Series includes 9 different fiber laser sources, spanning power and pulse width ranges on one modular platform.
The modular construction of the Y-Series fiber laser marker enables highest flexibility, application-specific configuration and easy integration in production lines and stand-alone systems like FOBA fiber laser marking machines.
The vision system that can be optionally integrated in the marking unit features markings in zero-defect quality and process reliability through automatic optical verification and validation steps.
The Y-Series fiber laser marker is used for industrial part marking in almost all metal and plastic processing industries.
The Y-Series fiber laser marker can make all kinds of codes (QR codes, DMC / DataMatrix Codes, Barcodes), alphanumeric characters, logos and letterings with high accuracy.
