Frequently Asked Questions
A beam delivery system in laser processing is responsible for guiding and focusing the laser beam onto the workpiece with precision and accuracy. It plays a crucial role in determining the quality of the laser processing operation.
Beam delivery systems increase efficiency in laser processing by accurately directing the laser beam, reducing waste, and ensuring optimal energy usage. They can also adjust the beam's size, shape, and focus to adapt to different processing requirements.
A beam delivery system generally includes components like beam expanders, collimators, mirrors, lenses, beam splitters, and focus adjustment devices. Each component plays a critical role in controlling the properties and path of the laser beam.
Choosing the right beam delivery system is vital as it directly impacts the quality and efficiency of the laser processing operation. A well-suited system will ensure precise beam control, optimal power distribution, and a high-quality output.
Beam delivery systems can be tailored to specific applications by selecting components that match the laser type, power, wavelength, and processing requirements. Different components can be used to control the beam's focus, divergence, and path according to the specific application needs.
Introduction to Beam Delivery Components
Beam delivery components are fundamental elements in laser systems, essential for transmitting and shaping the laser beam from its source to the workpiece. The performance and output quality of laser processes, such as welding, cutting, and engraving, significantly depend on these components.
Key Components
Beam Expanders: These are essentially two-lens optical systems that increase the diameter of the laser beam, enhancing the system's overall focus and precision. Beam expanders play a vital role in various applications, including laser scanning, laser illumination, and interferometry.
Collimators: A collimator ensures the laser beam's rays are parallel, making the beam less prone to divergence over distance. It is especially important in long-distance beam propagation, significantly improving the beam quality.

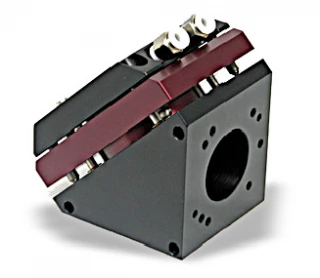

Mirrors: In the beam delivery system, mirrors are used to manipulate the direction of the laser beam. These high-reflectance components are carefully designed to withstand high laser power levels without damage or significant energy loss.
Lenses: Lenses are used to focus the laser beam onto the workpiece. They must be selected carefully based on the laser type, wavelength, and processing requirements to ensure optimal performance.

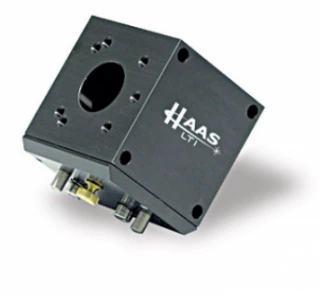

Beam Splitters: Beam splitters divide the laser beam into multiple paths. They are crucial in applications where a single laser source needs to be used for multiple simultaneous operations.
Importance of Beam Delivery Components
Beam delivery components directly influence the accuracy, efficiency, and quality of laser processing. They ensure that the laser beam follows the required path and reaches the target in the optimal state. They contribute to waste reduction, energy efficiency, and overall system reliability.
The right set of beam delivery components allows the laser system to be tailored to specific processing requirements. The beam's size, shape, divergence, and focus can be controlled and manipulated as needed, facilitating a wide range of applications. In addition, with the correct use and alignment of these components, beam delivery systems can handle varying power levels, wavelengths, and beam diameters without compromising on precision or quality.
Choosing Beam Delivery Components
Choosing the right beam delivery components is crucial. Considerations must include the type and power of the laser, the wavelength, and the specific processing requirements. Additionally, factors such as the required beam quality, the system's operating environment, and budget constraints should be taken into account. Always ensure the chosen components are compatible with each other and the rest of the laser system for seamless operation.
Conclusion
In conclusion, beam delivery components form the backbone of any laser system, playing a vital role in transmitting and manipulating the laser beam. A well-designed beam delivery system, equipped with the right components, can significantly enhance the efficiency, accuracy, and output quality of laser processes. As technology advances, we can expect further improvements in these components, leading to even more powerful and versatile laser systems in the future.
