560nm 1W Continuous Wave Visible Fiber Laser
Description

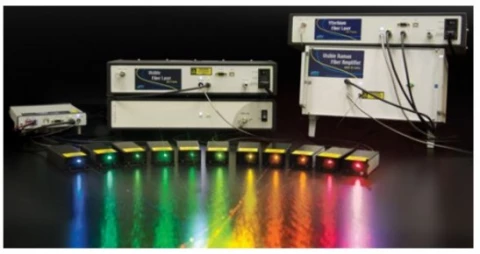

MPBC’s CW Visible Fiber Laser Series are an ideal choice for applications where wavelength stability are paramount. Available wavelengths: 488 nm, 514 nm, 532 nm, 542 nm, 546 nm, 560 nm, 570 nm, 580 nm, 583 nm, 589 nm, 592 nm, 595 nm, 606 nm, 620 nm, 628 nm, 642 nm, 647 nm, 658 nm, 670 nm, 750 nm, 775 nm. Output power range from 100 mW to 5W CW, and are available in a compact OEM modules for system integration or 2RU-Rack mount modules for laboratory use. All units have the same compact size laser head, making the VFLs easy to integrate for system applications.
560nm 1W Continuous Wave Visible Fiber Laser
Specifications |
|
---|---|
Center Wavelength: | 560 nm |
Output Power: | 1 W |
Beam Quality (M^2): | 1.08 |
Features
- Narrow Linewidth
- Active Power Stabilization to ensure longterm power stability of < 2%
- Excellent wavelength stability to ensure spectral purity (± 0.02 nm)
- Graphical User Interface for easy command and control
- Compact laser head
- Tunable output power (from 20% to 100% of nominal) to adapt to application-specific requirements
- High reliability
- Maintenance-free
Applications
- Flow Cytometry
- Fluorescence Microscopy
- Structured Illumination Microscopy
- Super Resolution Microscopy
- 3rd Generation DNA Sequencing
- Entertainment
- Military, and Scientific Research
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
External Vendor
![](/assets/web/images/claim.png)
Claim MPB Communications Inc. Page to edit and add data
Frequently Asked Questions
The MPBC CW Visible Fiber Laser Series is used in applications such as flow cytometry, fluorescence microscopy, structured illumination microscopy, super resolution microscopy, 3rd generation DNA sequencing, entertainment, military, and scientific research.
The available wavelengths for the MPBC CW Visible Fiber Laser Series are 488 nm, 514 nm, 532 nm, 542 nm, 546 nm, 560 nm, 570 nm, 580 nm, 583 nm, 589 nm, 592 nm, 595 nm, 606 nm, 620 nm, 628 nm, 642 nm, 647 nm, 658 nm, 670 nm, 750 nm, and 775 nm.
The output power range of the MPBC CW Visible Fiber Laser Series is from 100 mW to 5W CW.
The power tunability range of the MPBC CW Visible Fiber Laser Series is from 20% to 100% of nominal to adapt to application-specific requirements.
The MPBC CW Visible Fiber Laser Series has excellent wavelength stability to ensure spectral purity (± 0.02 nm).
