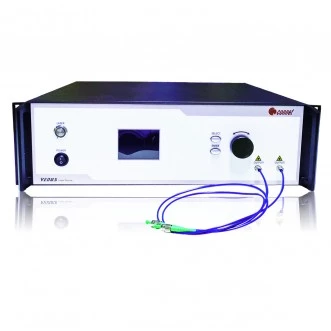

1.0um CoSF-D High Power Narrow Linewidth Single Frequency Fiber Laser
Description
Connet CoSF-D narrow linewidth single frequency fiber laser is a low-noise fiber laser independently developed by patented technology. It adopts the Distributed Feedback Bragg Grating (DFB) type fiber laser technology and has independent intellectual property to achieve stable linear polarization, single longitudinal mode and ultra-narrow linewidth single-frequency laser output. The unique Relative Intensity Noise (RIN) suppression technique guarantees the low noise operation of the CoSF-D narrow linewidth single frequency fiber laser.
The CoSF-D narrow linewidth single frequency fiber laser of Connet has excellent performance with the output optical spectrum linewidth of kHz level and the ultra-low frequency noise and intensity noise. The output OSNR can be up to 45dB or more.
The 1.0um CoSF-D high power narrow linewidth single frequency fiber laser uses the main oscillator power amplifier (MOPA) structure design. Based on CoSF-D basic module and Integrated cascaded low noise fiber amplifier, the output power can be up to 50W.
Using the all polarization-maintaining fiber design, the laser can achieve high output polarization extinction ratio (PER), the other higher output power can be provided as required. The center wavelength can be freely selected in the range of 1015nm to 1110nm, such us 1018nm, 1030nm, 1053nm, 1064nm and 1083nm, etc.
1.0um CoSF-D High Power Narrow Linewidth Single Frequency Fiber Laser
Specifications |
|
|---|---|
| Center Wavelength: | 1015 - 1110 nm |
| Output Power: | 50 W |
| Output Mode: | |
| Beam Quality (M^2): | 1.1 |
| Spectral Linewidth: | -- nm |
| Output Power Stability: | 1.75% ~ 2% |
| Output Fiber Type: | PMF |
| Output Fiber Length: | >0.5 m |
| Interface: | Other / Not-specified |
| Cooling: | Other |
| Electrical Requirements: | 110V - 60Hz, 115V - 50Hz, 115V - 60Hz, 120V - 60Hz, 127V - 50Hz, 127V - 60Hz, 220V - 50Hz, 230V - 50Hz, 230V - 60Hz, 240V - 50Hz |
| Output Power Options: | 10, 20, 50 W |
Features
- Ultra-narrow linewidth < 20kHz
- Stable single-frequency & single polarization operation
- No mode hopping, No bursting noise
- Low phase noise and low relative intensity noise
- Flexible design, multiple wavelengths optional
- Linear polarization output, high PER
Applications
- Optical fiber sensing
- LiDAR
- Cold atom physics
- Laser spectroscopy
- Coherent communication
- Other scientific research
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
Some applications include optical fiber sensing, LiDAR, cold atom physics, laser spectroscopy, coherent communication, and other scientific research.
The center wavelength can be freely selected in the range of 1015nm to 1110nm, such as 1018nm, 1030nm, 1053nm, 1064nm and 1083nm, etc.
The output optical spectrum linewidth is at the kHz level and has ultra-low frequency noise and intensity noise. The output OSNR can be up to 45dB or more.
The output power can be up to 50W.
The laser can achieve high output polarization extinction ratio (PER).
