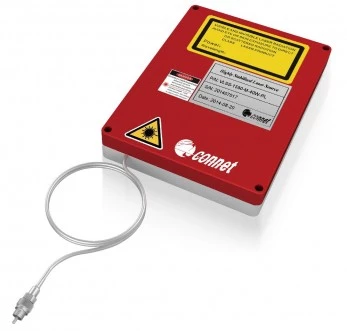

1.5um CoSF-D Narrow Linewidth Single Frequency Fiber Laser Basic Module
Description
Connet CoSF-D narrow linewidth single frequency fiber laser is a low-noise fiber laser independently developed by patented technology. It adopts the Distributed Feedback Bragg Grating (DFB) type fiber laser technology and has independent intellectual property to achieve stable linear polarization, single longitudinal mode and ultra-narrow linewidth single-frequency laser output. The unique Relative Intensity Noise (RIN) suppression technique guarantees the low noise operation of the CoSF-D series high power narrow linewidth single frequency fiber laser.
Connet CoSF-D narrow linewidth single frequency fiber laser has excellent performance with the output optical spectrum linewidth of kHz level and the ultra-low frequency noise and intensity noise. The basic module of the CoSF-D series narrow linewidth single frequency fiber laser is compact and robust with strong environmental interference capability. The output power can be up to 10mW or more.
Connet 1.5um CoSF-D narrow linewidth single frequency fiber laser basic module has two types of products based on different optical configuration. Each types of product has its own unique characteristics, suitable for different applications.
CoSF-D-ER-M: based on Er-doped fiber, ultra-narrow linewidth(<1KHz)and low phase noise.
CoSF-D-EY-M: based on Er-Yb Co-doped fiber, narrow linewidth(<15KHz) and low RIN.
The standard wavelength of 1.5um CoSF-D narrow linewidth single frequency fiber laser is 1550.12nm .The center wavelength can be chosen freely in the 1530-1570nm range, such as the standard wavelengths of ITU.
1.5um CoSF-D Narrow Linewidth Single Frequency Fiber Laser Basic Module
Specifications |
|
|---|---|
| Center Wavelength: | 1530 - 1570 nm |
| Output Power: | 0.01 W |
| Output Mode: | Single Frequency, Single Longitudinal Mode |
| Beam Quality (M^2): | <1.05 |
| Spectral Linewidth: | -- nm |
| Output Power Stability: | 0.9% ~ 1.0% |
| Output Fiber Type: | PM-1550 |
| Output Fiber Length: | >0.5 m |
| Interface: | RS-485 |
| Cooling: | Air Cooled |
| Electrical Requirements: | Other / Not Specified |
Features
- Ultra-narrow linewidth
- Stable single-frequency & single polarization operation
- No mode hopping, No bursting noise
- Low phase noise and low relative intensity noise
- Flexible design, multiple wavelengths optional
- Linear polarization output, high PER
- Mini size, robust package
Applications
- Optical fiber sensing
- LiDAR
- Hydrophone
- Laser spectroscopy
- Coherent communication
- Gas absorption measurement
- Other scientific research
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
The laser can be used in optical fiber sensing, LiDAR, hydrophone, laser spectroscopy, coherent communication, gas absorption measurement, and other scientific research.
The two types are CoSF-D-ER-M, based on Er-doped fiber with ultra-narrow linewidth (<1KHz) and low phase noise, and CoSF-D-EY-M, based on Er-Yb Co-doped fiber with narrow linewidth (<15KHz) and low RIN.
It is a low-noise fiber laser that produces stable linear polarization, single longitudinal mode, and ultra-narrow linewidth single-frequency laser output.
The output power can be up to 10mW or more.
The standard wavelength is 1550.12nm, but the center wavelength can be chosen freely in the 1530-1570nm range, such as the standard wavelengths of ITU.
