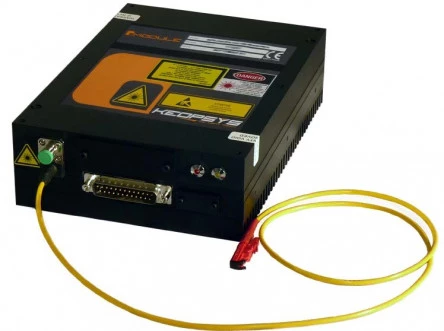

CEFL-KILO - Continuous Wave Erbium Fiber Laser
Description
The CEFL-KILO series (Continuous Erbium-doped fiber amplifier) are designed for
continuous wave operations in the 1.5μm range.
The lasers are single frequency fiber lasers specially designed for applications which require
a high precision such as LIDAR, atomic spectroscopy, or atom cooling. The MOPA system
provides low RIN and high power. With no maintenance, these fiber lasers offer comfort and accuracy.
The single frequency fiber system integrates several isolators to ensure stability and security
versus backlight reflection. CEFL-KILO series are available from 1 to 15W CW of output power with an ultra narrow
linewidth (down to 1kHz).
The single frequency fiber laser can be thermally tuned in wavelength, and its central
emission line can be modulated for locking purposes.
CEFL-KILO is available in EOM module for integration applications or user-friendly
benchtop for laboratories experiences.
The CEFL-KILO fiber laser is manufactured according a production process which ensures
to all lasers a perfect reproducibility of performances and a high level of reliability. Lumibird
integrates standard and proven components for a high global MTBF value.
Finally, the fiber laser does not need specific installation. However Lumibird will offer free
support to its first start on request.
CEFL-KILO - Continuous Wave Erbium Fiber Laser
Specifications |
|
|---|---|
| Center Wavelength: | 1555 nm |
| Output Power: | 15 W |
| Beam Quality (M^2): | < 1.1 |
Features
- Narrow linewidth
- Single longitudinal mode
- Operating wavelength from 1545 to 1565 nm
- Output power up to 15 W
- Ultra low phase noise and RIN
- Excellent SMSR
- Wavelength tunability (optional)
- Laser frequency modulation (optional)
- Diffraction limited output
- Random or linear polarization
- Maintenance free
- Request pricing
Applications
• LIDAR
• Acoustic or seismic sensing
• Atom cooling,
• Atomic spectroscopy
• Optical tweezing
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
France
-
Sold by:
-
On FindLight:
since 2019
Frequently Asked Questions
The CEFL-KILO series is designed for continuous wave operations in the 1.5μm range.
The CEFL-KILO series is suitable for applications such as LIDAR, atomic spectroscopy, atom cooling, acoustic or seismic sensing, and optical tweezing.
The CEFL-KILO series is available from 1 to 15W CW of output power.
No, these fiber lasers offer comfort and accuracy with no maintenance.
Yes, the fiber laser does not need specific installation, but Lumibird offers free support for its first start on request.
