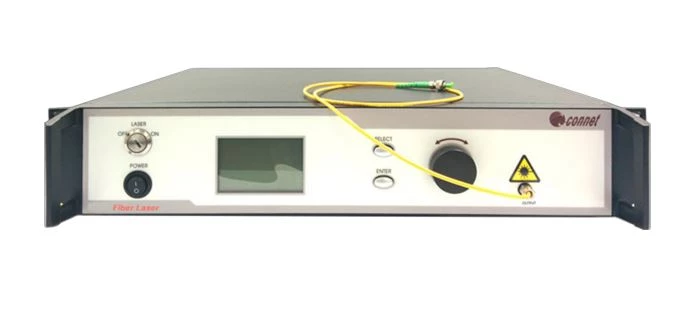

CoSF-R-TM-B-HP Ultra-narrow Linewidth Single Frequency Fiber Laser
Description
Introducing the Connet CoSF-R: Optimized Traveling Wave Cavity Ultra-Narrow Linewidth Single-Frequency Fiber Laser. This cutting-edge fiber laser represents a breakthrough in low-noise technology, delivering exceptional performance and reliability, thanks to our patented innovations.
At the heart of the CoSF-R single-frequency fiber laser is the unique "optimized traveling wave cavity" design, which effectively eliminates the standing wave space hole burning phenomenon commonly encountered in linear cavity fiber lasers. By combining this design with our meticulously engineered ultra-narrow bandwidth fiber filter, we ensure the selection of a single longitudinal mode output and guarantee the laser's single frequency operation. Additionally, our all-fiber polarization control technology eradicates the polarization hole burning effect, enabling stable linear polarization, single longitudinal mode, and ultra-narrow linewidth single-frequency laser output.
One of the standout features of the CoSF-R ultra-narrow linewidth single-frequency fiber laser is its exceptional performance. With a linewidth of less than 1kHz, our laser boasts ultra-low phase noise and frequency noise characteristics. Moreover, the incorporation of an ultra-long laser cavity design sets the CoSF-R apart from other commercial short-cavity single frequency lasers, as it significantly reduces overall noise levels.
Specifically, the CoSF-R-TM-B-MP model operates within the 1.9-2.0um band and can achieve an output power of up to 5W. We also offer higher output power products upon request. The standard wavelength options include 1908nm, 1940nm, 1950nm, and 1960nm. Additionally, we provide an optional wavelength range spanning from 1900nm to 2090nm, allowing for versatile applications.
Experience the Connet CoSF-R: an ultra-narrow linewidth single-frequency fiber laser that sets new standards in performance, noise reduction, and reliability.
CoSF-R-TM-B-HP Ultra-narrow Linewidth Single Frequency Fiber Laser
Specifications |
|
|---|---|
| Center Wavelength: | 1090-2090 nm |
| Output Power: | 50 W |
| Output Mode: | Continuous Wave (CW), Modulated, Single Longitudinal Mode |
| Beam Quality (M^2): | 1.3 |
| Spectral Linewidth: | -- nm |
| Output Power Stability: | 2% ~ 3% |
| Output Fiber Type: | PMF, Other / Non-specified |
| Output Fiber Length: | >0.5 m |
| Interface: | RS-232 |
| Cooling: | Air Cooled |
| Electrical Requirements: | 110V - 60Hz, 115V - 50Hz, 115V - 60Hz, 120V - 60Hz, 127V - 50Hz, 127V - 60Hz, 220V - 50Hz, 230V - 50Hz, 230V - 60Hz, 240V - 50Hz |
Features
- Ultra-narrow linewidth <<1kHz
- Ultra-low phase noise and frequency noise
- Ultra-low relative intensity noise (RIN)
- Stable single frequency, single polarization output
- No mode-hopping
- Benchtop all-in-one package
- PZT option
Applications
- Distributed optical fiber sensing
- Coherent LiDAR
- Fiber optic hydrophone
- Laser spectroscopy
- Coherent communication
- Gas absorption measurement
- Cold atomic physics
- Other scientific research
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
What are some of the applications of the CoSF-R ultra-narrow linewidth single-frequency fiber laser?
The CoSF-R ultra-narrow linewidth single-frequency fiber laser can be used in distributed optical fiber sensing, coherent LiDAR, fiber optic hydrophone, laser spectroscopy, coherent communication, gas absorption measurement, cold atomic physics, and other scientific research.
The CoSF-R-TM-B-HP Ultra-narrow Linewidth Single Frequency Fiber Laser is a low-noise ultra-narrow linewidth fiber laser that uses patented technology to achieve exceptional performance and reliability.
The linewidth of the CoSF-R ultra-narrow linewidth single-frequency fiber laser is less than 1kHz, which results in ultra-low phase noise and frequency noise characteristics.
The CoSF-R-TM-B-MP model operates within the 1.9-2.0um band and can achieve an output power of up to 5W. Higher output power products can be provided upon request.
The unique "optimized traveling wave cavity" design effectively eliminates the standing wave space hole burning phenomenon commonly encountered in linear cavity fiber lasers.
