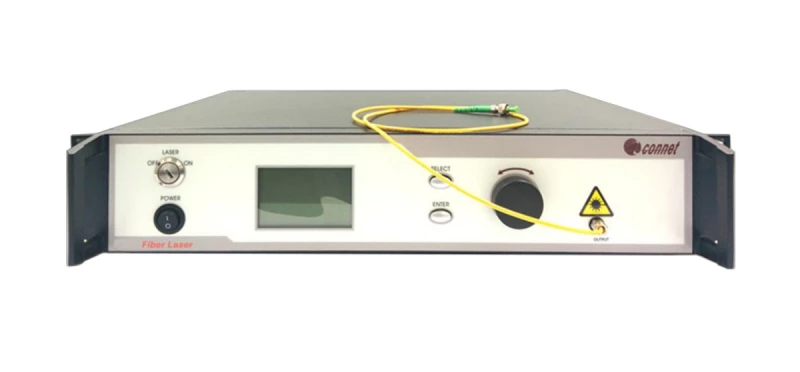

CoSF-R-YB-B-HP Ultra-narrow Linewidth Single Frequency Fiber Laser
Description
The CoSF-R-YB-B-HP Ultra-narrow Linewidth Single Frequency Fiber Laser by Connet is a low-noise, ultra-narrow linewidth fiber laser designed using patented technology. It features the optimized traveling wave cavity design, which eliminates standing wave space hole burning and ensures single longitudinal mode output.
With polarization control technology and an all-fiber design, this laser achieves stable linear polarization, single longitudinal mode operation, and ultra-narrow linewidth single-frequency laser output. The CoSF-R-YB-B-HP operates in the 1.0um band and offers excellent performance with a linewidth of less than 1kHz and ultra-low phase noise and frequency noise.
CoSF-R-YB-B-HP Ultra-narrow Linewidth Single Frequency Fiber Laser
Specifications |
|
|---|---|
| Center Wavelength: | 1010-1120 nm |
| Output Power: | 100 W |
| Output Mode: | Continuous Wave (CW), Single Frequency, Single Longitudinal Mode |
| Beam Quality (M^2): | 1.3 |
| Spectral Linewidth: | -- nm |
| Output Power Stability: | 0.5% ~ 0.6% |
| Output Fiber Type: | PMF |
| Output Fiber Length: | > 0.5 m |
| Interface: | RS-232 |
| Cooling: | Other |
| Electrical Requirements: | 110V - 60Hz, 240V - 50Hz |
| Linewidth: | <<1 KHz |
| Output Polarization: | Linear |
| Polarization Extinction Ratio (PER): | 23 dB |
| Output Isolation: | 50 dB |
| Wavelength Thermal Tuning: | 0.8 nm |
| PZT Wavelength Modulation: | Optional |
| Modulation Frequency (linear): | 10 kHz |
| Modulation Wavelength Range: | >8 GHz |
| Operating Temperature: | +10 to +40 °C |
| Storage Temperature: | -20 to +60 °C |
| Optical Connector: | FC/APC |
| Weight: | <10 kg |
| Dimension: | 510 x 480 x 150 mm |
Features
- Ultra-narrow linewidth <<1kHz
- Ultra-low phase noise and frequency noise
- Ultra-low relative intensity noise (RIN)
- Stable single frequency, single polarization output
- No mode-hopping
- Benchtop all-in-one package
- Optional PZT fast modulation
Applications
- Distributed optical fiber sensing
- Coherent LiDAR
- Fiber optic hydrophone
- Laser spectroscopy
- Coherent communication
- Gas absorption measurement
- Cold atomic physics
- Other scientific research
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
The CoSF-R-YB-B-HP Ultra-narrow Linewidth Single Frequency Fiber Laser is suitable for distributed optical fiber sensing, coherent LiDAR, fiber optic hydrophone, laser spectroscopy, coherent communication, gas absorption measurement, cold atomic physics, and other scientific research.
The features of the CoSF-R-YB-B-HP Ultra-narrow Linewidth Single Frequency Fiber Laser include ultra-narrow linewidth <<1kHz, ultra-low phase noise and frequency noise, ultra-low relative intensity noise (RIN), stable single frequency, single polarization output, no mode-hopping, benchtop all-in-one package, and optional PZT fast modulation.
The CoSF-R-YB-B-HP Ultra-narrow Linewidth Single Frequency Fiber Laser is a low-noise, ultra-narrow linewidth fiber laser designed using patented technology. It features the optimized traveling wave cavity design, which eliminates standing wave space hole burning and ensures single longitudinal mode output.
The output power of the CoSF-R-YB-B-HP Ultra-narrow Linewidth Single Frequency Fiber Laser is optional from 20W to 100W. Higher output power products can be provided on request.
The standard wavelength range of the CoSF-R-YB-B-HP Ultra-narrow Linewidth Single Frequency Fiber Laser includes 1053nm, 1064nm, 1083nm, and the optional wavelength range is 1010-1120nm.
