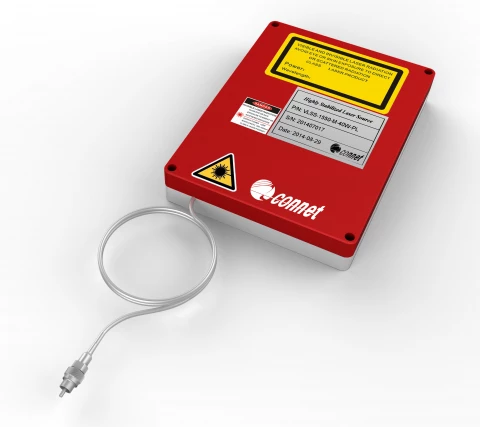

Connet CoSF-R-YB-M Single Frequency Fiber Laser Module
Description
This advanced fiber laser module is designed for ultra-narrow linewidth single-frequency laser output with extraordinary noise control.
It employs patented technology to eliminate standing wave space hole burning, ensuring ultra-stable and ultra-narrow linewidth performance. The all-fiber design, coupled with polarization control technology, guarantees stable linear polarization, single longitudinal mode, and remarkable laser output.
CoSF-R-YB-M operates in the 1.0um band, with output power options ranging from 5mW to 100mW, and even higher output power available upon request. This module excels in a wide range of applications, from distributed optical fiber sensing to coherent LiDAR and various scientific research endeavors.
Connet CoSF-R-YB-M Single Frequency Fiber Laser Module
Specifications |
|
---|---|
Center Wavelength: | 1010-1120 nm |
Output Power: | 0.1 W |
Output Mode: | Continuous Wave (CW), Single Frequency, Single Longitudinal Mode |
Beam Quality (M^2): | 1.1 |
Spectral Linewidth: | -- nm |
Output Power Stability: | 0.4% ~ 0.5% |
Output Fiber Type: | PMF |
Output Fiber Length: | 0.5 m |
Interface: | RS-485 |
Cooling: | Air Cooled |
Electrical Requirements: | Other / Not Specified |
Power Supply: | 12 V-DC |
Operating Temperature: | 0 to +60 ℃ |
Storage Temperature: | -40 to +85 ℃ |
Dimensions: | 175 x 130 x 29 mm |
Linewidth: | <<1 kHz |
RIN Peak Frequency: | 70 kHz |
Output Polarization: | Linear |
Polarization Extinction Ratio (PER): | 23 dB |
Features
- Ultra-narrow linewidth: <<1kHz
- Ultra-low phase noise and frequency noise
- Low relative intensity noise (RIN)
- Stable single-frequency, single-polarization output
- No mode-hopping
- Compact package: 175x130x29mm
- Exceptional reliability
Applications
- Distributed optical fiber sensing
- Coherent LiDAR
- Fiber optic hydrophone
- Laser spectroscopy
- Coherent communication
- Gas absorption measurement
- Cold atomic physics
- Other scientific research
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
The CoSF-R-YB-M Single Frequency Fiber Laser Module is suitable for distributed optical fiber sensing, coherent LiDAR, fiber optic hydrophone, laser spectroscopy, coherent communication, gas absorption measurement, cold atomic physics, and other scientific research.
The output power of the basic module is optional from 5mW to 200mW. Higher output power products can be provided on request.
The polarization control technology eliminates the polarization hole burning effect based on the all-fiber design, thereby achieving stable linear polarization, single longitudinal mode, and ultra-narrow linewidth single-frequency laser output.
The CoSF-R-YB-M Single Frequency Fiber Laser Module comes in a small sized package of 175x130x29mm.
The standard wavelength range includes 1053nm, 1064nm, 1083nm, and the optional wavelength range is 1011-1120nm.
