CVFL-GIGA 5xx series - Visible Fiber Lasers
Description

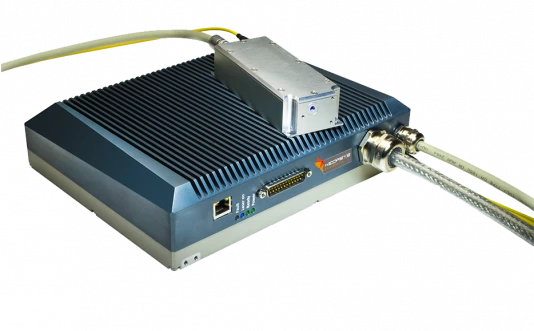

The Lumibird CVFL-GIGA are frequency converted Ytterbium doped fiber lasers emitting at
a design fixed wavelength from 520nm up to 590nm.
The design is composed by an all-fiber laser cavity emitting in the IR range and a frequency
conversion module which converts IR laser to visible laser. The frequency conversion
module is a single pass periodically poled crystal integrated in a dust free mechanical
package. This frequency conversion module is very compact and might be placed up to 3
meters ahead from the laser box. No active cooling is required for the module.
These fiber lasers represent a very reliable, robust and stable solution compare to other
DPSS technologies.
CVFL-GIGA 5xx series - Visible Fiber Lasers
Specifications |
|
|---|---|
| Center Wavelength: | From 520 up to 590 / Standard 520, 532, 546, 560, 577 nm |
| Output Power: | Up to 3 W |
| Beam Quality (M^2): | < 1.2 |
Features
• Output power up to 3 W
• 520, 532, 546, 560 and 577 standard wavelengths
• 20 GHz linewidth
• Linear polarization
• Short modulated pulse option
• Optional Limited longitudinal mode number operation
• Diffraction limited output
• Robust and reliable
• Turn-key system
Applications
• Super-resolution microscopy
• DNA sequencing
• Medical application (ophthalmology and dermatology)
• Laser shows
• Laser Doppler Velocimetry
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
France
-
Sold by:
-
On FindLight:
since 2019
Frequently Asked Questions
The output power can go up to 3 W.
The standard wavelengths are 520, 532, 546, 560, and 577.
The fiber lasers can be used for super-resolution microscopy, DNA sequencing, medical applications (ophthalmology and dermatology), laser shows, and laser Doppler velocimetry.
No, active cooling is not required for the module.
For ordering information and custom solutions, you can contact Lumibird at websales@keopsys.com.
