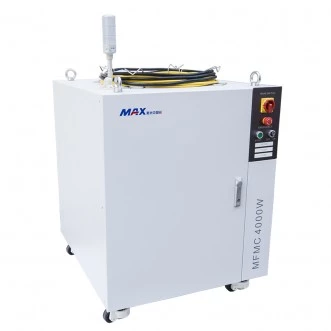

Mid-Power Multi-Mode CW Fiber Laser Precision Cutting System 2000W-4000W
Description
MFMC Series CW Fiber Laser product sprovide a wide range of wavelength from 1060nm to 1100nm.The lasers are water-cooled and maintenance-free and with a wall plug efficiency of more than 25% and deliver high efficiency, high reliability and high performance.Maxphotonics' MFMC Series CW Fiber Laser Series are Class 4 laser products and are designed and tested with safety.
Mid-Power Multi-Mode CW Fiber Laser Precision Cutting System 2000W-4000W
Specifications |
|
|---|---|
| Center Wavelength: | 1080 nm |
| Output Power: | 4000 W |
| Beam Quality (M^2): | -- |
| Operation Mode: | CW/Modulated |
| Polarization: | Random |
| Power Tunability: | 10 to 100% |
| Modulation Frequency: | ≤ 5 kHz |
Features
High Power Density with Flat-top Distribution: Cladding layer dilution rate less than 3%
High Beam Spot Concentricity: Suitable for laser welding and cladding stereolithography; Reduce process commissioning time
Fiber Core Diameter Optional: 800um, 1000um customized options
Wider fiber core diameter range makes our laser applicable to more applications such as cladding and hardening
QBH or LOE Output: Stronger anti-reflective ability with LOE output
High Level Vertical Integration: All key components are designed and produced in house; Strict quality control, high consistency and reliability
Applications
Metal Cutting
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Germany
-
Sold by:
-
On FindLight:
since 2018
Frequently Asked Questions
The MFMC Series CW Fiber Laser provides a wide range of wavelength from 1060nm to 1100nm.
The MFMC Series CW Fiber Laser has a wall plug efficiency of more than 25%.
The MFMC Series CW Fiber Laser Series are Class 4 laser products and are designed and tested with safety.
The MFMC Series CW Fiber Laser can cut a variety of metal materials, including Carbon Steel, Silicon Steel, Stainless Steel, Aluminum Alloy, Titanium Alloy, Galvanized Sheet, Pickling Plate, Aluminum Zinc Plate, and Cooper.
The fiber core diameter range of the MFMC Series CW Fiber Laser is optional, with 800um and 1000um customized options available.
