1.5um CW Single Mode Polarization Maintaining Fiber Amplifier
Description

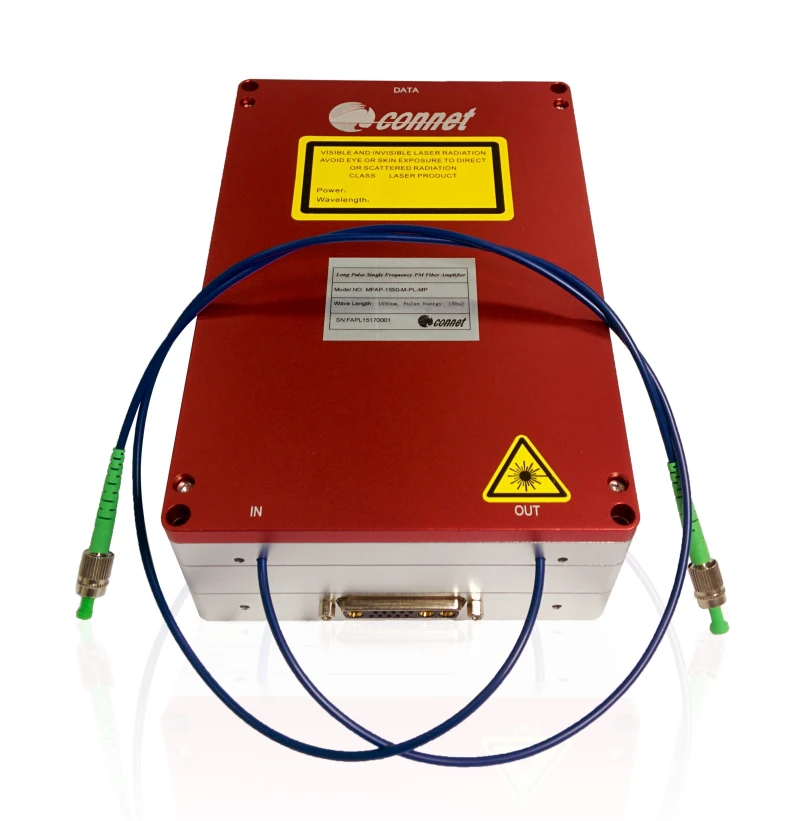

The Connet MFAP-1550-M-SF is a high-performance 1.5 µm CW single frequency polarization maintaining fiber amplifier, engineered for applications that demand precise signal fidelity and robust power output. Designed to amplify narrow-linewidth signals down to the kilohertz level, this module delivers up to 10W of output power while maintaining a near diffraction-limited beam quality (M² < 1.5).
Utilizing a multi-stage optical amplification architecture, the MFAP series suppresses nonlinear effects such as Stimulated Brillouin Scattering (SBS), preserving the integrity of the input signal. With its eye-safe 1550 nm wavelength, excellent polarization extinction ratio (PER ≥ 20 dB typical), and support for kHz-level signal amplification, this amplifier is an ideal choice for coherent LiDAR, space laser communication, interferometric sensing, and cold atom research.
The system includes advanced control options via RS232 and supports both ACC and APC modes. Configurable with FC/APC connectors or collimators, and optionally integrable with a high-power circulator, the amplifier is housed in a compact and rugged module suitable for laboratory and field deployments.
1.5um CW Single Mode Polarization Maintaining Fiber Amplifier
Specifications |
|
|---|---|
| Amplifier Type: | |
| Wavelength Range: | 1540 – 1565 nm |
| Min Input Power: | Not Specified |
| Max Output Power: | Not Specified |
| Nominal Gain: | Not Specified |
| Output Fiber Type: | |
| Output Power: | 10 W |
| Input Power: | 200 mW |
| Input Linewidth: | 0.01 kHz |
| Output Beam Quality: | 1.5 M² |
| Polarization Extinction Ratio: | 20 dB |
| Output Power Stability: | ±1 % |
| Optical Isolation: | 35 dB |
| Operating Temperature Range: | -35 to +65 °C |
| Storage Temperature Range: | -40°C to +85 °C |
| Input/Output Fiber Type: | SM, PM, or PLMA |
| Input/Output Fiber Length: | >0.3 m |
| Optical Connector: | FC/APC or Collimator |
| Dimensions: | 200×135×41 mm |
Features
- High Output Power: Delivers up to 10W at 1550 nm with excellent beam quality
- Single Frequency Support: Ideal for amplifying ultra-narrow linewidth signals down to kHz
- No SBS Generation: Optimized multi-stage design suppresses nonlinear scattering effects
- Diffraction-Limited Beam Quality: Maintains M² < 1.5 for coherent beam propagation
- Robust Polarization Control: Typical polarization extinction ratio of 20 dB
- Wide Compatibility: Supports PM, SM, or PLMA fibers with FC/APC or collimated output
Applications
- Space Laser Communication: Ensures eye-safe high-power signal delivery for spaceborne links
- Coherent LiDAR: Enhances detection accuracy with narrow-linewidth and stable output
- Interferometric Sensors: Maintains signal coherence for precision measurement systems
- Cold Atomic Physics: Suitable for optical trapping and manipulation applications
- Scientific Research: Reliable tool for experiments demanding high spectral fidelity
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
Yes, there is a control software for the amplifier.
The amplifier is suitable for space laser communication, interferometric sensors, coherent Lidar, cold atomic physics, and scientific research.
The maximum output power of the amplifier is 10W.
The polarization extinction ratio (PER) of the amplifier is between 17 and 20 dB.
The output wavelength of the amplifier is 1550nm.
