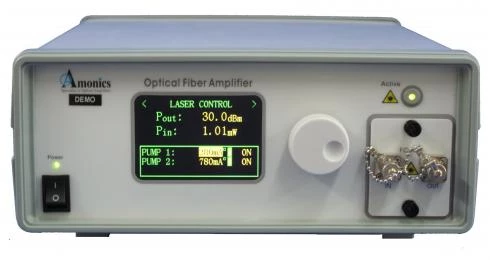

Amonics - Extended L-Band EDFA - AEDFA-L-EX1
Description
Amonics’ specialist products, L-band Erbium-doped Fiber Amplifiers(EDFA), are made with high power pump laser and high stability pump combiners, robust in high power boosting. The result are EDFAs that possess high output power, high gain with very low noise, and are ideal for high power EDFA applications.The turnkey microprocessor controlled benchtop EDFAs manage alarms and status indicators. An integrated RS232 computer interface enables easy control, diagnostic functions and data acquisition. The benchtop EDFA series consist of different type of EDFAs for various applications such as general purpose, pre-amplifier, booster, in-line, polarization maintaining, C+L band amplification.
Amonics - Extended L-Band EDFA - AEDFA-L-EX1
Specifications |
|
|---|---|
| Amplifier Type: | SOA - Semiconductor Optical Amplifier |
| Wavelength Range: | 1570-1610nm |
| Max Output Power: | 30 dBm |
| Nominal Gain: | - dB |
Applications
- DWDM applications
- SONET/SDH Systems
- Optical Communications
- Fiber Optic Sensing
- Booster, In-line & Pre-amp
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The Amonics Extended L-Band EDFA is a specialist product made with high power pump laser and high stability pump combiners, robust in high power boosting. It is an Erbium-doped Fiber Amplifier that possesses high output power, high gain with very low noise, and is ideal for high power EDFA applications.
The Amonics Extended L-Band EDFA is ideal for DWDM applications, SONET/SDH Systems, Optical Communications, Fiber Optic Sensing, Booster, In-line & Pre-amp.
The control mode of the Amonics Extended L-Band EDFA is ACC, with an option for APC and AGC.
The operation temperature range for the Amonics Extended L-Band EDFA is 0 to +40 oC, while the storage temperature range is -10 to +70 oC.
The available optical connectors for the Amonics Extended L-Band EDFA are FC/APC, FC/UPC, SC/APC, and SC/UPC.
