High Power Erbium-Doped Fiber Amplifier - EDFA300 S/P
Description

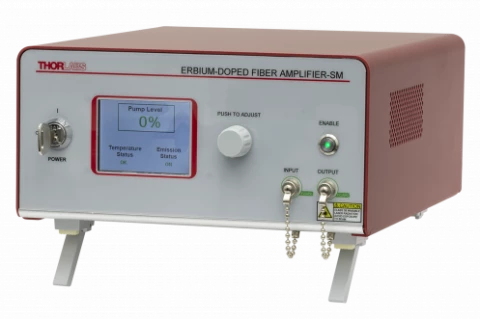

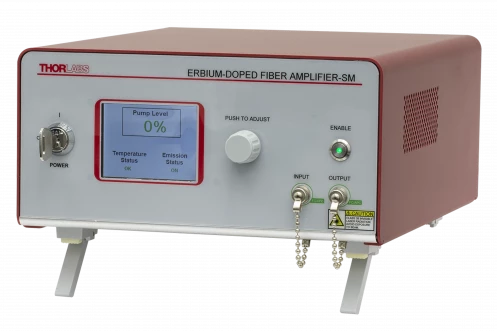

Thorlabs EDFA300x core-pumped erbium-doped fiber amplifiers (EDFAs) offer >24.5 dBm output power with a low noise figure of <6 dB. The EDFA300S is a single mode EDFA with minimal sensitivity to the input light polarization, while the EFDA300P is a polarization-maintaining EDFA that only amplifies input light polarized along the slow axis of the fiber. Each EDFA300x instrument includes built-in input and output isolators to protect the input laser source from any amplified spontaneous emission or back reflections, as well as to prevent the pump light from exiting the amplifier. If additional dispersion compensation is needed at the input or output, dispersion-compensating patch cables are available from stock or patch cables with custom dispersion compensation are available from Tech Support.
High Power Erbium-Doped Fiber Amplifier - EDFA300 S/P
Specifications |
|
|---|---|
| Amplifier Type: | EDFA - Erbium-Doped Fiber Amplifier |
| Wavelength Range: | 1530-1565nm |
| Max Output Power: | 26 dBm |
| Nominal Gain: | 40 dB |
| Maximum Input Power: | 13 dBm |
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2020
Frequently Asked Questions
The EDFA300 S/P offers an output power of >24.5 dBm.
The EDFA300 S/P has a low noise figure of <6 dB.
The EDFA300S is a single mode EDFA, while the EDFA300P is a polarization-maintaining EDFA.
The built-in isolators protect the input laser source from amplified spontaneous emission or back reflections and prevent the pump light from exiting the amplifier.
Yes, dispersion-compensating patch cables are available from stock, and custom dispersion compensation patch cables can be obtained from Tech Support.
