MOA: Miniaturized Telecom Optical Amplifier
Description

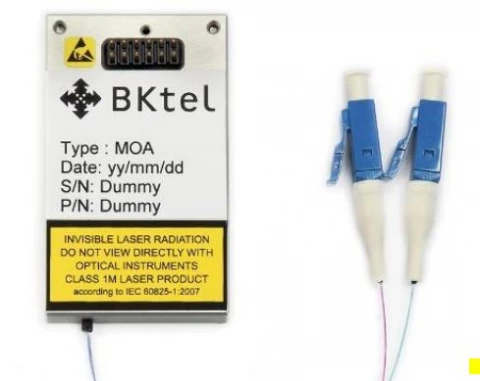

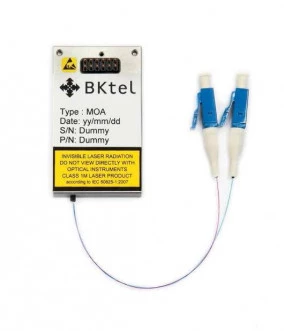

The MOA is a miniaturized high power fiber optic amplifier from Bktel capable of producing up to 17dBm of output power between 1529 nm to 1564nm. This series of fiber amplifiers can be configured with single or multiple output ports terminated with your choice of industry standard connectors including SC/APC and FC/APC.
The MOA is capable of handling input powers from -30 to 8 dBm and provides 30dB of optical isolation, making sure to protect the seed laser from dangerous back reflections. This amplifier also feathers a polarization mode dispersion of 0.5ps and a polarization mode gain of 0.3dB.
All of these features, combined with its compact form factor, low power consumption, and industry standard RS232 communication interface, make it the ideal OEM amplifier for demanding high power applications. All of these features make the MOA series of fiber optic amplifiers a robust tool for applications like LIDAR, free space communications, and many others.
MOA: Miniaturized Telecom Optical Amplifier
Specifications |
|
|---|---|
| Amplifier Type: | Not Specified |
| Wavelength Range: | 1529-1564nm |
| Min Input Power: | -30 dBm |
| Max Output Power: | +17 dBm |
| Nominal Gain: | 5.5 dB |
| Output Fiber Type: | Not Specified |
| Power Consuption: | 1.5 W |
Features
- High Output Power, up to +17dB
- Miniaturized package (30 x 50 x 8 mm)
- Low Noise Figure & Power Consumption
Applications
- Long-Haul, Metro and Access Networks
- Single Channel Networks
- Test & Measurement
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The MOA can be configured with single or multiple output ports terminated with your choice of industry standard connectors including SC/APC and FC/APC.
The MOA is a miniaturized high power fiber optic amplifier capable of producing up to 17dBm of output power between 1529 nm to 1564nm.
The MOA series of fiber optic amplifiers is suitable for applications like LIDAR, free space communications, and many others.
The MOA is capable of handling input powers from -30 to 8 dBm.
The MOA has a low power consumption of 1.5W.
