20-40 GHz Intensity Modulators for Analog Applications AM20, AM40
Description

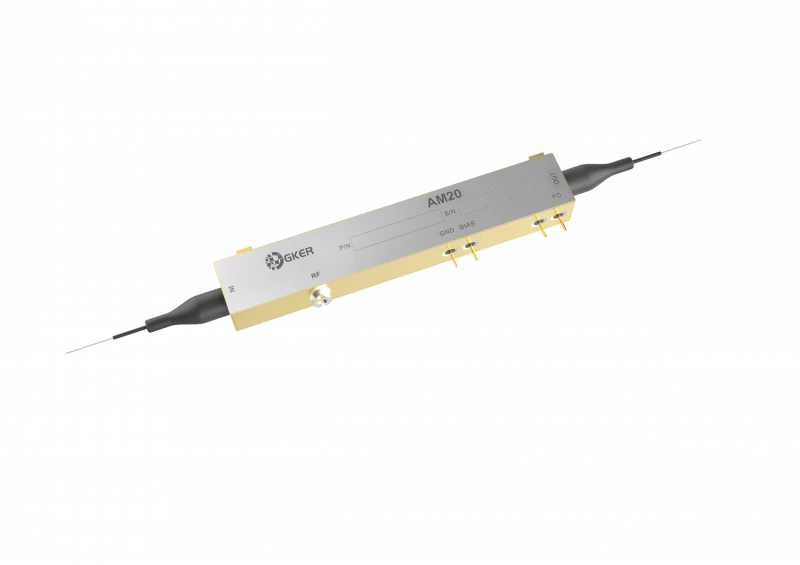

The GKER Photonics 20-40 GHz Intensity Modulators (AM20 & AM40 Series) are designed for high-frequency analog applications, providing exceptional performance and reliability. Utilizing the Mach-Zehnder Interferometer (MZI) architecture, these modulators offer a unique combination of high linearity, low drive voltage, and a compact footprint. With operational frequencies ranging from 20 GHz to beyond 40 GHz, the AM20 modulator covers the 20-30 GHz range, while the AM40 modulator extends beyond 30 GHz.
Engineered with X-Cut Lithium Niobate (LiNbO3) and Titanium Indiffused Waveguides, these modulators ensure minimal signal degradation and optimal performance across the C+L-Band. The integrated monitor photodiode and polarizer, along with a zero-chirped modulator design, contribute to the modulators' superior efficiency.
Ideal for digital transmission, high-frequency fiber optic links, delay lines, and telemetry systems, these modulators meet the increasing demands of modern analog fiber optic communication. GKER Photonics' commitment to quality and customization allows for tailored solutions to meet specific customer requirements.
20-40 GHz Intensity Modulators for Analog Applications AM20, AM40
Specifications |
|
|---|---|
| Operating Wavelength: | 1525 - 1615 nm |
| Insertion Loss: | < 4.5 (3.5 typ) < 5.0 (4.0 typ) dB |
| Optical Return Loss: | > 45 dB |
| Polarization Extinction Ratio: | > 20 (23 typ) dB |
| S21 Electro-Optic Bandwidth: | > 20 (23 typ) GHz |
| S11 Electrical Return Loss: | < - 10 (- 12 typ) dB |
| RF Vπ Voltage: | < 5.0 (4.5 typ) 60 V |
| Bias Vπ Voltage: | < 5.5 (5.0 typ) V |
| Bias Port Impedance: | 1 MΩ |
Features
- Titanium Indiffused Waveguides: Ensures precise signal transmission and stability
- X-Cut LiNbO3: Provides high electro-optic efficiency and long-term reliability
- C+L-Band Operation: Compatible with a wide range of wavelength applications
- Operating up to 60 GHz: Supports high-frequency applications with superior performance
- Zero-Chirped Modulator: Minimizes dispersion for clearer signal transmission
- Low Drive Voltage: Reduces power consumption and enhances efficiency
- Low Optical Insertion Loss: Ensures minimal signal loss during transmission
- Integrated Monitor Photodiode: Enables real-time monitoring of signal integrity
- Integrated Polarizer: Enhances signal quality by controlling polarization effects
- RoHS Compliant: Meets environmental standards for hazardous substances
Applications
- Digital Transmission: Optimizes performance in high-speed data networks
- High Frequency Fiber Optic Links: Ideal for advanced analog and digital communication systems
- Delay Lines: Perfect for precise timing and signal processing in communication networks
- Telemetry Systems: Provides reliable signal modulation for remote monitoring and control
