C-Band 10 GHz LiNbO³ Phase Modulator PM10-C
Description

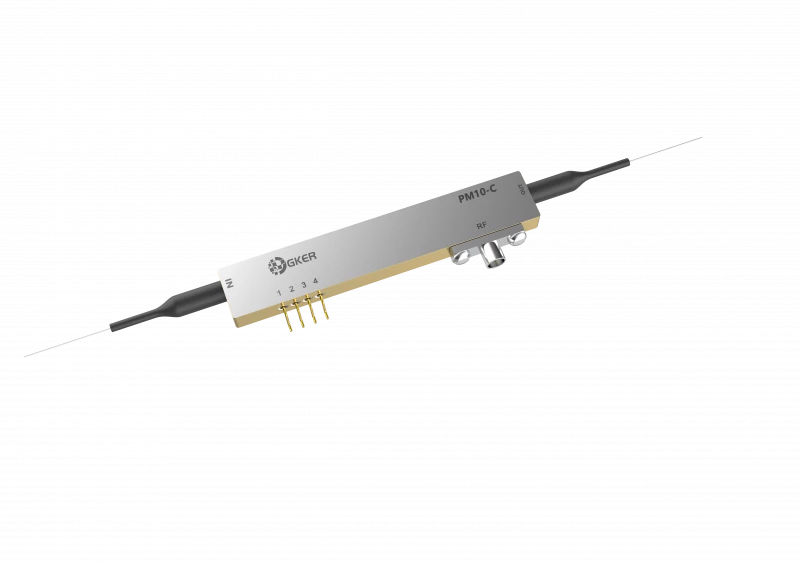

The GKER Photonics C-Band 10 GHz LiNbO₃ Phase Modulator (PM10-C) is a high-performance phase modulator designed to meet the stringent requirements of advanced optical communication systems. This modulator operates over the C-Band and is engineered with Z-Cut Lithium Niobate (LiNbO₃) technology, ensuring low drive voltage and superior linearity across the frequency range up to 10 GHz. With its low optical insertion loss and smooth frequency response, the PM10-C is ideal for a variety of demanding applications, including FM spectroscopy, frequency shifting, laser linewidth broadening, and quantum key distribution.
The PM10-C modulator is also equipped with a robust construction that includes a titanium indiffused waveguide and precise polarization control, offering excellent stability and reliability. It supports a wide range of optical communication tasks, from interferometric fiber sensing to laser beam combining, making it a versatile tool for researchers and engineers.
With a compact design, the PM10-C modulator can be easily integrated into existing systems, and its compliance with Telcordia GR-468-Core and GR-326 standards ensures long-term reliability and performance. Whether for academic research or industrial applications, the GKER PM10-C Phase Modulator provides a cutting-edge solution for high-frequency optical modulation needs.
C-Band 10 GHz LiNbO³ Phase Modulator PM10-C
Specifications |
|
|---|---|
| Operating Wavelength Range: | 1530-1565 nm |
| Insertion Loss, IL: | - dB |
| Optical Return Loss, RL1: | 40 dB |
| Polarization Dependent Loss1: | 5 dB |
| S21 Electro-optic Bandwidth: | 10 GHz |
| ΔS21 Ripple: | - dB |
| S11 Electrical Return Loss: | - dB |
| Vπ RF Voltage: | - V |
| RF Input Impedance: | - Ω |
Features
- C-Band Operation: Optimized for performance across the 1530-1565 nm wavelength range
- Z-Cut LiNbO₃ Technology: Ensures low drive voltage and high linearity for accurate phase modulation
- Low Optical Insertion Loss: Maintains signal integrity with typical losses of 2.5 dB without connectors
- Smooth Frequency Response: Delivers consistent performance up to 10 GHz
- Integrated Polarization Control: Achieves a polarization extinction ratio of over 20 dB, enhancing signal quality
- Compact Design: Small footprint allows for easy integration into optical systems
Applications
- FM Spectroscopy: Facilitates precise frequency modulation for spectroscopy experiments
- Frequency Shifting: Ideal for altering laser frequencies in advanced optical systems
- Laser Linewidth Broadening: Enables control of laser linewidth in various applications
- Quantum Key Distribution: Supports secure communication through quantum cryptography
- Interferometric Fiber Sensing: Enhances the accuracy of fiber optic sensors
