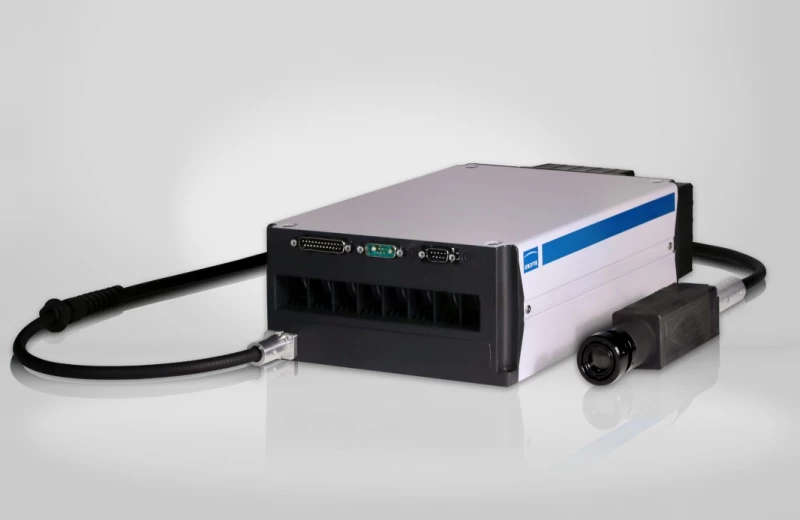

JenLas Fiber ns 105 Nanosecond Fiber Laser
Description
Experience precision and versatility in industrial marking and micromachining with JenLas® Fiber ns 25 - 105, an advanced nanosecond fiber laser by Jenoptik. This class 4 OEM laser source empowers a wide range of applications, including marking, scribing, laser cleaning, surface structuring, resistor trimming, PCB trace cutting, foil cutting, and thin film ablation. Its robust performance and ease of integration make it a valuable addition to industrial machines.
JenLas Fiber ns 105 Nanosecond Fiber Laser
Specifications |
|
|---|---|
| Wavelength: | 1085 nm |
| Average Output Power: | 100 W |
| Pulse Duration: | 220-250ns |
| Beam Quality (M^2): | 1.8 |
| Max Pulse Repetition Rate: | 200 kHz |
| Pulse Width (FWHM, Typ.): | 125 ns |
| Pulse Width (20%): | 50-200 ns |
| Pulse Energy (max.): | 1.0 nJ |
| Maximum Peak Power: | 7.0 kW |
| Output Power Stability (typ.): | ± 2.5 % |
| Beam Delivery Cable Length: | 4 m |
| Polarization: | random |
| Beam Diameter (150 Mm From Beam Exit): | fixed collimator output beam diameter Ø 3 mm or Ø 7 mm |
| Internal Pilot Laser: | 650 nm |
| Operation Temperature: | +15 to +45 °C |
| Cooling: | forced air |
| Laser Head: | 24 V / 22.5 A |
| Laser Controller: | 24 V / 1.9 A |
| Control Interface: | RS232, TTL |
| Size (L X W X H): | 319 x 224 x 142 mm |
| Weight: | 8.5 kg |
Features
- Scalable power level from 20W to 100W
- Rugged industry-proven fiber laser technology
- Enhanced robustness against backreflection
- Designed for seamless integration into industrial machines
- Complete control through software, hardwired, or mixed methods
- Versatile with add-on parts, from collimation optics to complex optical solutions
- Includes an on-axis guiding laser for precision applications
Applications
- Industrial Marking and Scribing of Metals, Plastics, Ceramics
- Laser Cleaning of Surfaces
- Generation of Surface Structures
- Trimming of Resistors and PCB Traces
- Cutting and Drilling of Thin Foils
- Thin Film Ablation from Transparent Substrates
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The JenLas Fiber ns series is available at 25, 35, 55, and 105 watt power levels.
The pulse durations of the JenLas Fiber ns series are 125 – 150 nanoseconds.
The JenLas Fiber ns is powered via a 24V power source.
The JenLas Fiber ns can be controlled via software, a hard-wired connection, or a mixture of both, depending on your integration needs.
The JenLas Fiber ns can be used for marking, scribing, laser cleaning, generation of surface structures, trimming, cutting, drilling, and thin film ablation from transparent substrates.
