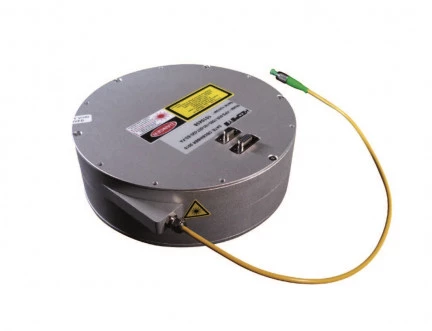

PEFL-MIRVISION SERIES - 1.5µm Pulsed Erbium Fiber Laser
Description
The PEFL-MIRVISION series is a range of 1.5µm pulsed fiber laser transmitters, delivering
high peak power and high energy per pulse in compact modules for long-range applications.
A varied choice of models offers the possibility to operate over a wide range of operating
setpoints (pulse duration, pulse repetition frequency and energy) allowing to be suitable for
a various of high-accuracy systems. Compact pulsed laser transmitters are commonly used
in applications such as Airborne 3D scanning and mapping, telemetry, obstacle detection
and supercontinuum generation.
The all-in-fiber design requires no maintenance. The PEFL-MIRVISION has been tested under
vibrations and shocks conditions in accordance with military standards (MIL-STD-810G,
RTCA-DO-160G…) allowing operations in the harshest environmental conditions over a
long period of time.
Lumibird electronic board designs offer a wide range of functionalities. Platforms incorporate
a microcontroller for internal controls, alarms, and RS232/USB communication making the
laser compatible all systems. Pulses are triggered by an external signal supplied by the user
system.
PEFL-MIRVISION SERIES - 1.5µm Pulsed Erbium Fiber Laser
Specifications |
|
|---|---|
| Wavelength: | 1545 nm |
| Average Output Power: | From 3 to 10 W |
| Pulse Duration: | 0.5-200ns |
| Beam Quality (M^2): | -- |
| Max Pulse Repetition Rate: | 250 kHz |
| Energy Per Pulse: | Up to 350 µJ |
Features
- 1.5 μm eye-safe operation
- Energy per pulse up to 350 μJ
- Peak power up to 25 kW
- Choice of pulse duration from 0.5 ns to 200 ns
- Pulse repetition frequency from 15 kHz to 2 MHz
- Linear or random polarization
- High output-beam quality (from 1.5 to 2.5)
- Low power consumption
- Wide operating temperature range (-35 °C to +65 °C)
- Rugged and compact package
Applications
- Telemetry, range-finding
- Obstacle detection
- Airborne survey, mapping
- 3D scanning
- Supercontinuum generation
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
France
-
Sold by:
-
On FindLight:
since 2019
Frequently Asked Questions
The PEFL-MIRVISION series laser has a wavelength of 1.5µm.
The laser can deliver up to 350 µJ of energy per pulse.
The laser is suitable for applications such as telemetry, range-finding, obstacle detection, airborne survey and mapping, 3D scanning, and supercontinuum generation.
No, the all-in-fiber design of the laser requires no maintenance.
The laser has been tested under vibrations and shocks conditions in accordance with military standards (MIL-STD-810G, RTCA-DO-160G…) allowing operations in the harshest environmental conditions over a long period of time.
