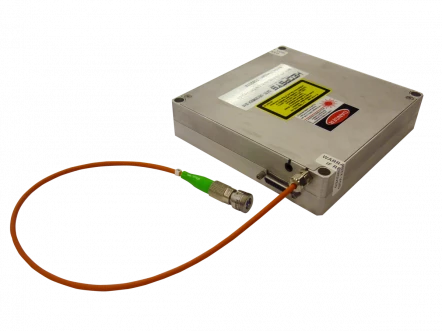

PYFL-KULT - 1 µm Ultra-compact Laser Transmitter
Description
The PYFL-KULT series is a range of 1µm pulsed fiber laser transmitters, delivering high
peak power and high energy per pulse in ultra-compact modules with diffraction-limited
output beam for range finding applications. A varied choice of models offers the possibility
to operate over a wide range of operating setpoints (pulse duration, pulse repetition
frequency and energy) allowing to be suitable for a various of high-accuracy systems.
Compact pulsed laser transmitters are commonly used in applications such as 3D scanning,
mapping, telemetry, and also harmonic and supercontinuum generation.
The compact platforms allow an easy integration in highly integrated systems. The
all-in-fiber design requires no maintenance. The PYFL-KULT has been tested under
vibrations and shocks conditions in accordance with military standards (MIL-STD-810G,
RTCA-DO-160G…) allowing operations in the harshest environmental conditions over a
long period of time.
Lumibird electronic board designs offer a wide range of functionalities. The control of the
PYFL-KULT can be analogic or digital. Platforms incorporate a microcontroller for internal
controls, alarms, and RS232/USB communication making the laser compatible all systems.
Pulses are triggered by an external signal supplied by the user system
PYFL-KULT - 1 µm Ultra-compact Laser Transmitter
Specifications |
|
|---|---|
| Wavelength: | 1064 nm |
| Average Output Power: | Up to 2 W |
| Pulse Duration: | 1-3ns |
| Beam Quality (M^2): | 1.1 to 1.3 |
| Max Pulse Repetition Rate: | 1000 kHz |
| Energy Per Pulse (EPP): | Up to 25 µJ |
Features
- 1064 nm operating wavelength
- Energy per pulse up to 25 μJ
- Peak power up to 25 kW
- Pulse duration 1 ns to 3 ns
- Pulse repetition frequency from 5 kHz to 1 MHz
- Continuous or burst operation
- Linear or random polarization
- Diffraction limited output beam
- Low power consumption
- Wide operating temperature range (-35 °C to +65 °C)
- Compact and rugged module
Applications
- Supercontinuum generation
- Harmonic generation
- Telemetry
- Range-finding
- 3D scanning
- Mapping
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
France
-
Sold by:
-
On FindLight:
since 2019
Frequently Asked Questions
The operating wavelength of the PYFL-KULT laser transmitter is 1064 nm.
The applications of the PYFL-KULT laser transmitter include supercontinuum generation, harmonic generation, telemetry, range-finding, 3D scanning, and mapping.
The PYFL-KULT laser transmitter has an energy per pulse of up to 25 µJ and a peak power of up to 25 kW.
The pulse duration range of the PYFL-KULT laser transmitter is from 1 ns to 3 ns.
The operating temperature range of the PYFL-KULT laser transmitter is from -35 °C to +65 °C.
