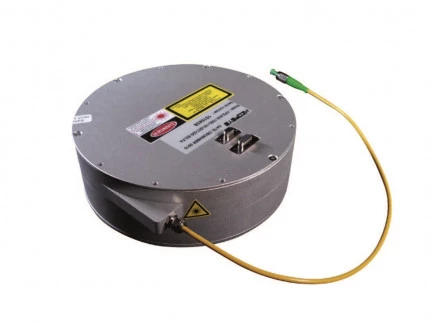

PYFL-MIRVISION - 1 µm High Power Fiber Laser
Description
The PYFL-MIRVISION series is a range of 1µm pulsed fiber laser transmitters, delivering
high peak power and high energy per pulse in compact modules for long-range applications.
A varied choice of models offers the possibility to operate over a wide range of operating
setpoints (pulse duration, pulse repetition frequency and energy) allowing to be suitable for
a various of high-accuracy systems. Compact pulsed laser transmitters are commonly used
in applications such as Airborne 3D scanning and mapping, telemetry, and also harmonic
and supercontinuum generation.
The all-in-fiber design requires no maintenance. The PYFL-MIRVISION has been tested under
vibrations and shocks conditions in accordance with military standards (MIL-STD-810G,
RTCA-DO-160G…) allowing operations in the harshest environmental conditions over a
long period of time.
Lumibird electronic board designs offer a wide range of functionalities. Platforms incorporate
a microcontroller for internal controls, alarms, and RS232/USB communication making the
laser compatible all systems. Pulses are triggered by an external signal supplied by the user
system.
PYFL-MIRVISION - 1 µm High Power Fiber Laser
Specifications |
|
|---|---|
| Wavelength: | 1064 nm |
| Average Output Power: | Up to 10 W |
| Pulse Duration: | 1-4ns |
| Beam Quality (M^2): | <1.3 |
| Max Pulse Repetition Rate: | 1000 kHz |
| Energy Per Pulse: | Up to 100 µJ |
Features
- Energy per pulse up to 100 μJ
- Peak power up to 25 kW
- Choice of pulse duration from 1 ns to 4 ns
- Pulse repetition frequency from 50 kHz to 1 MHz
- Linear or random polarization
- High output-beam quality
- Low power consumption
- Wide operating temperature range (-35 °C to +65 °C)
- Rugged and compact package
Applications
- Telemetry
- Range-finding / Obstacle detection
- Airborne survey
- Mapping / 3D scanning
- Harmonic generation
- Bathymetry
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
France
-
Sold by:
-
On FindLight:
since 2019
Frequently Asked Questions
The energy per pulse of the PYFL-MIRVISION fiber laser can be up to 100 µJ.
The peak power of the PYFL-MIRVISION fiber laser can be up to 25 kW.
The operating temperature range of the PYFL-MIRVISION fiber laser is from -35 °C to +65 °C.
Some applications for the PYFL-MIRVISION fiber laser include telemetry, range-finding/obstacle detection, airborne survey, mapping/3D scanning, harmonic generation, and bathymetry.
No, the all-in-fiber design of the PYFL-MIRVISION fiber laser requires no maintenance.
