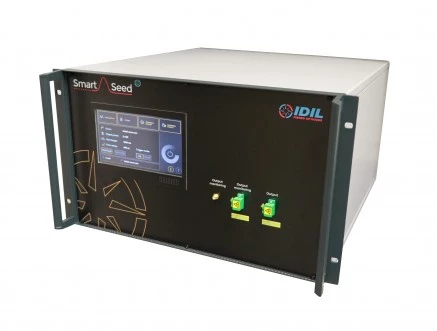

Seeder Laser / Front End Laser / Oscillator
Description
IDIL Fibres Optiques designs and manufactures front end laser that are used for high power laser systems seeding.
IDIL Fibres Optiques has a extensive and recognized experience within Front End Laser in the field of international standing projects. As an example, IDIL has collaborated with the CEA (the French Alternative Energies and Atomic Energy Commission) since 1995, within the framework of the LMJ project (the Megajoule Laser).
Our seeder laser (Smart Seed) is available at different wavelengths (1030nm, 1053nm, 1064nm) and integrates all the optical functions needed to obtain the best performance of pulse (from 300ps to 25ns) such as narrow linewidth fiber laser, phase modulation, amplification, synchronization and pulse shaping (Arbitrary Waveform Generator).
Seeder Laser / Front End Laser / Oscillator
Specifications |
|
|---|---|
| Wavelength: | 1030 nm |
| Repetition Rate: | 0.01 MHz |
| Output Power: | -- W |
| Pulse Duration: | 300000 fs |
Features
Electronic control to guarantee long term stability of extinction ratio
Internal phase modulation to avoid SBS effect
User adjustable pulse waveform / step : 125ps
Controlled by 7” touchscreen – User friendly
Quick installation
Remotely controlled, GUI interface
Applications
1 30 nm front end source: XFEL project
Collaboration with Laser Impulse1030 nm front end source: HIPER project
Collaboration with Rutherford Appleton Laboratory...
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
France
-
Sold by:
-
On FindLight:
since 2015
Frequently Asked Questions
The SMART-SEED Front End Laser is used for high power laser systems seeding.
The SMART-SEED Front End Laser is available in 1030nm, 1053nm, and 1064nm wavelengths.
Some of the features of the SMART-SEED Front End Laser include high temporal extinction ratio (>50dB), electronic control to guarantee long term stability of extinction ratio, internal phase modulation to avoid SBS effect, user adjustable pulse waveform/step: 125ps, and controlled by 7” touchscreen – user friendly.
The temporal resolution on the pulse shape of the SMART-SEED Front End Laser is 125 ps.
The energy of the SMART-SEED Front End Laser is > 500 pJ (1 ns pulse width) and > 10 nJ (20 ns pulse width).
