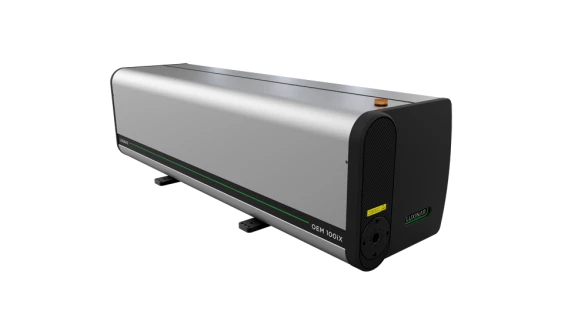

OEM 100iX 10.6um CO₂ Laser
Description
The OEM series of sealed CO₂ laser sources, comprising OEM 45iX, OEM 65iX and OEM 100iX, can operate over a wide range of pulse widths and frequencies including safe operation through the acoustic regions and over a broad range of coolant temperatures. A compact solution that can be easily integrated into industrial processing production lines, the OEM series can be sited in confined spaces in any orientation both with or without covers.
OEM 100iX 10.6um CO₂ Laser
Specifications |
|
|---|---|
| Gas Medium: | CO2 |
| Wavelength: | 10.6 um |
| Output Power: | 1000 W |
| Mode Quality (M^2): | <1.2 |
| Beam Diameter: | 11.2 ± 1.0 mm |
| Beam Divergence (Full Angle): | < 1.75 mrad |
| Polarization: | Linear |
| Cooling: | Water-to-Water |
Features
OEM 100iX - 1kW sealed CO₂ laser source
Power range 50-1000W
The OEM 100iX CO₂ sealed laser source offers higher speeds and increased productivity for industrial processing applications. This 1kW laser incorporates proven RF-excited slab laser design with the latest leading-edge technologies to give:
- A high quality, round, symmetrical beam for high-speed processing applications
- A short optical pulse with high peak power for improved edge quality and minimal heat affected zone (HAZ)
- An IP66-rated system capable of operating in the harshest of industrial environments
- A compact design with fully in-field serviceable RF module for simple integration and servicing
- A minimum shipment power 20% higher than rated power to ensure extended operational lifetime
- A typical power stability of ± 1% using optional power feedback control and narrow wavelength band to ensure a high level of process repeatability
- Safety performance level D (EN 13849) as specified in the latest European Standards
Applications
- Cutting
- Drilling
- Marking
- Engraving
- Scribing
- Perforating
- Welding
- Kiss Cutting
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2019
Frequently Asked Questions
The power range of the OEM 100iX CO₂ laser source is 50-1000W.
The safety performance level of the OEM 100iX CO₂ laser source is D (EN 13849) as specified in the latest European Standards.
The typical power stability of the OEM 100iX CO₂ laser source is ± 1% using optional power feedback control and narrow wavelength band to ensure a high level of process repeatability.
The typical shipment power of the OEM 100iX CO₂ laser source is 1330W.
The wavelength of the OEM 100iX CO₂ laser source is 10.6µm.
