Page 7 - CW Semiconductor Lasers

This 808nm diode laser produces 10000mW from a 200um emitter in the free space packages or 8000mW from the fiber in the fiber coupled packages. It has a low threshold current and high slope efficiency, which results in a low operating current which enhances reliability.

Specifications

Center Wavelength: 0.808 um
Output Power: 10000 mW

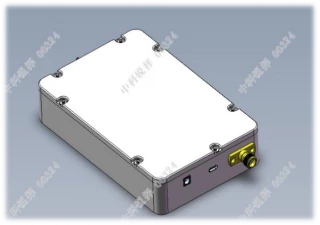

The VENUS series 793nm multi-mode pump laser source of Connet has high power and high brightness output with a built-in Single Emitter laser.   The control system based on the advanced microprocessor, combined with high-precision ATC and ACC (APC) control circuits, realizes the highly stable output of the laser, and at ...

Specifications

Center Wavelength: 0.793 um
Output Power: 50,000 mW
Dimensions: 320(L) x 280(B) x 150(H) mm
Storage Temperature: -40 to +85 ℃
Operating Temperature: 0 to +30 ℃
The VENUS series multi-mode pump laser source of Connet is designed for high power fiber laser and amplifier as the high- stability pump source. It has high power and high brightness output. One single emitter pump diode laser has been installed inside.  The VENUS series multi-mode pump laser source of Connet adopts a ...

Specifications

Center Wavelength: 0.976 um
Output Power: 60,000 mW
Dimensions: 320(L) x 280(B) x 150(H) mm
Storage Temperature: -40 to +85 C
Operating Temperature: 0 to +30 C

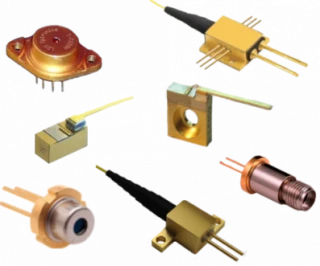

The LDX-XXXX-808 is a high-power, multimode laser diode designed to provide reliable and efficient laser performance. With a wavelength of 808nm, it offers exceptional output power suitable for a wide range of applications. This laser diode is available in various configurations to meet your specific requirements.

Specifications

Center Wavelength: 0.808 um
Output Power: 6000 mW
Operating Temperature: 25 °C
Emitter Size: 200 um
Output From Fiber: 4800 mW
The LDX-XXXX-808 is a high-power, multimode laser diode designed to provide reliable and efficient laser performance. With a wavelength of 808nm, it offers exceptional output power suitable for a wide range of applications. This laser diode is available in various configurations to meet your specific requirements.

Specifications

Center Wavelength: 0.808 um
Output Power: 2000 mW
Operating Temperature: 25 °C
Emitter Size: 100 um
Output From Fibe: 2000 mW
The LDX-XXXX-1550 is a high-performance, made-in-the-USA, multimode laser diode offered by RPMC Lasers Inc. This laser diode delivers exceptional output power and is customizable to suit various applications. With a proven track record of reliability and performance, this laser diode is a dependable choice for your laser system needs.

Specifications

Center Wavelength: 1.55 um
Output Power: 800 mW
Package Types: Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
Output Power: 800 mW
Operating Temperature: 25 °C
The LDX-XXXX-1550 is a high-performance, multimode laser diode designed for various applications. With a wavelength of 1550nm and exceptional output power capabilities, this laser diode provides reliable and efficient laser solutions for a wide range of industries. It offers high efficiency, customizable packaging, and options for ...

Specifications

Center Wavelength: 1.55 um
Output Power: 1000 mW
Package Types: Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
Operating Temperature: 25 °C
Threshold Current (mA) Typ: 350 mA
The LDX-XXXX-808 is a high-power, multimode laser diode designed to provide reliable and efficient laser performance. With a wavelength of 808nm, it offers exceptional output power suitable for a wide range of applications. This laser diode is available in various configurations to meet your specific requirements.

Specifications

Center Wavelength: 0.808 um
Output Power: 3000 mW
Emitter Size: 100 um
Output From Fiber: 2400 mW
Min Fiber Size HHL & BTF: 100 um
The LDX-XXXX-885 is a high-power multimode laser diode designed to provide reliable and efficient laser performance at a wavelength of 885nm. This laser diode offers a wide range of output power options, with up to 6000mW in free space and up to 4800mW when used with fiber optics. It boasts high output power and dynamic range, ...

Specifications

Center Wavelength: 0.885 um
Output Power: 6000 mW
Operating Temperature: 25 °C
Threshold Current: 350 mA
Threshold Current: 4600 mA
The LDX-XXXX-1550 is a high-power multimode laser diode designed to provide reliable and efficient laser performance at a wavelength of 1550nm. This laser diode offers a wide range of output power options, with up to 5000mW in free space and up to 1400mW when used with fiber optics. It boasts high output power and dynamic range, ...

Specifications

Center Wavelength: 1.550 um
Output Power: 1500 mW
Operating Temperature: 25 °C
Threshold Current: 500 mA
Operating Current: 3700 mA
The LDX-XXXX-808 is a versatile 808nm multimode laser diode with exceptional output power and efficiency. It offers custom packaging options and can be tailored to meet various wavelength and design requirements.

Specifications

Center Wavelength: 0.808 um
Output Power: 1200 mW
Min Fiber Size HHL & BTF: 100 um
Min Fiber Size 9mm SMA: 200 um
Operating Temperature: 25 °C
The LDX-XXXX-860 is a versatile multimode laser diode with a wavelength of 860nm. It offers high output power and dynamic range, making it suitable for a wide range of applications. Custom packaging options are available, and custom wavelengths and laser designs can be accommodated upon request.

Specifications

Center Wavelength: 0.860 um
Output Power: 5000 mW
Operating Temperature: 25 °C
Threshold Current: 750 mA
Operating Current: 4800 mA
Connet's VENUS series 808nm Multi-mode Pump Laser Source leverages Connet's proprietary AWL (Active Wavelength Locking) technology to stabilize the peak wavelength within the range of 808 +/- 3nm, even when the power is reduced to half. This advanced technology significantly enhances the stability and efficiency of the laser ...

Specifications

Center Wavelength: 0.808 um
Output Power: 0.05 mW
Peak Operating Wavelength: 811 nm
Spectral Width (FWHM): 0.5 nm
Stability Of Output Power: ±0.5%
Connet's VENUS series High Stability Diode Laser Source offers versatile solutions by accommodating different diode lasers, including F-P, DFB, and ECL, tailored to user requirements. Operating across typical wavelengths such as 750nm, 808nm, 852nm, 1035nm, 1064nm, 1310nm, and 1550nm, this laser source provides options for ...

Specifications

Center Wavelength: 0.600 um
Output Power: >10 mW
Dimensions: 340(L) x 240(W) x 100(H) mm
Storage Temperature: -40 to +85 ℃
Operating Temperature: 0 to +50 ℃
The 830L-1XA Laser Diode Module is a compact and versatile laser source from RPMC Lasers Inc. It operates at a wavelength of 830nm and offers multiple fiber-coupled options. With its ultra-compact all-in-one design and thermally stabilized optics, this laser module ensures reliable and maintenance-free operation. It features ...

Specifications

Center Wavelength: 0.83 um
Output Power: 130 mW
Polarization Direction: Horizontal
Polarization Contrast: 2000:1
Longitudinal Modes: Multiple
The FLPD-2332-03-DFB-BTF laser diode is a cost effective, highly coherent laser source. The DFB laser diode chip is packaged in an industry standard hermetically sealed 14 pin butterfly package with TEC, thermistor and PD.

Specifications

Center Wavelength: 2.332 um
Output Power: 3 mW
Linewidth: <2 MHz
