Page 7 - Multi-Mode Fiber-Coupled Diode Lasers

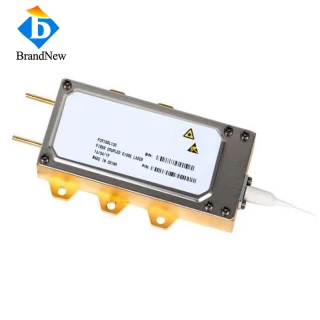

350W 793nm Fiber Coupled Diode Laser
Hangzhou Brandnew Technology Co., Ltd.
Add to watch list
350W 793nm Fiber Coupled Diode Laser
Compare
Delivering up to 350W of diode laser into a 200um core fiber, the system makes it easy to develop new applications. This fiber coupled diode laser is manufactured by adopting specialized fiber-coupling techniques, resulting in volume products with a high efficiency, stability and superior beam quality.   The products ...

Specifications
Laser Type: Continuous Wave (CW)
Fiber Type: Multi-Mode
Wavelength: 793 nm
Output Power: 350000 mW
Fiber Core Diamater: 200 um
Data Sheet
Inquire Price

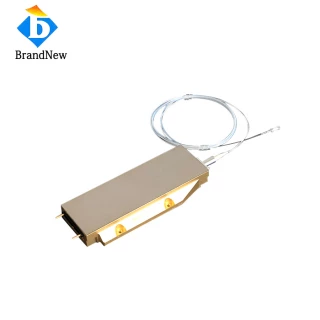

800W 976nm Fiber Coupled Diode Laser
Hangzhou Brandnew Technology Co., Ltd.
Add to watch list
800W 976nm Fiber Coupled Diode Laser
Compare
Brandnew supply high brightness and high power fiber coupled diode laser which can be used in laser pumping, laser cutting and laser welding. This diode laser is suitable to meet the needs of you who are looking for excellent performance and great quality. 800W 976nm High Power Fiber Coupled Diode Laser, the superior combination ...

Specifications
Laser Type: Continuous Wave (CW)
Fiber Type: Multi-Mode
Wavelength: 976 nm
Output Power: 800000 mW
Fiber Core Diamater: 220 um
Data Sheet
Inquire Price

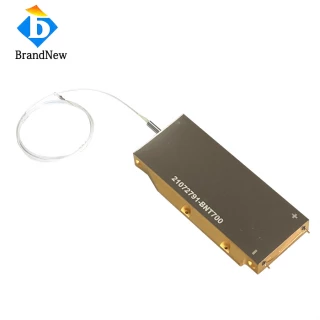

300W 808nm Fiber Coupled Diode Laser
Hangzhou Brandnew Technology Co., Ltd.
Add to watch list
300W 808nm Fiber Coupled Diode Laser
Compare
These high power fiber coupled laser diodes offer up to 300 Watts of CW optical output power into a 200 micrometer fiber pigtail. These devices are based on a high reliability multi-single emitter design. Their multi-single emitter based design delivers very good heat dissipation through the package which leads to excellent thermal ...

Specifications
Laser Type: Continuous Wave (CW)
Fiber Type: Multi-Mode
Wavelength: 808 nm
Output Power: 300000 mW
Fiber Core Diamater: 200 um
Data Sheet
Inquire Price

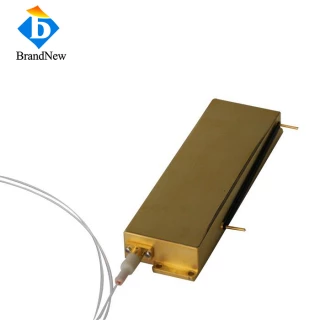

100W 808nm Fiber Coupled Laser Diode
Hangzhou Brandnew Technology Co., Ltd.
Add to watch list
100W 808nm Fiber Coupled Laser Diode
Compare
The 808nm products are achieved by transforming the asymmetric radiation from the 100W laser diode chip into an output fiber with small core diameter by using special micro optics. 100W 808nm Fiber Coupled Laser Diode leverages a long history of fiber-coupled packages, incorporating a highly-reliable design in a scalable commercial ...

Specifications
Laser Type: Continuous Wave (CW)
Fiber Type: Multi-Mode
Wavelength: 808 nm
Output Power: 100000 mW
Fiber Core Diamater: 200 um
Data Sheet
Inquire Price

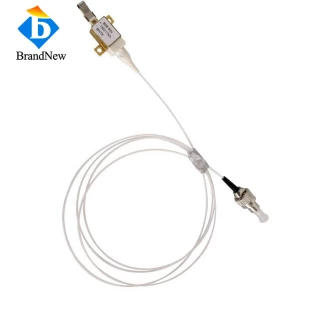

10W 940nm Fiber Coupled Laser Diode
Hangzhou Brandnew Technology Co., Ltd.
Add to watch list
10W 940nm Fiber Coupled Laser Diode
Compare
These 10W, 940nm fiber coupled laser diodes offer high efficiency and robust thermal design structure. They are designed to yield lifetimes of thousands of hours at their full rated power for applications including material processing, materials sample illumination and medical uses. They are also used for solid-state laser pumping, ...

Specifications
Laser Type: Continuous Wave (CW)
Fiber Type: Multi-Mode
Wavelength: 940 nm
Output Power: 10000 mW
Fiber Core Diamater: 105 um
Data Sheet
Inquire Price

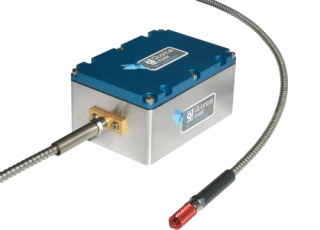

APF series - Fiber coupled QCW diode stack
Lumibird
Add to watch list
APF series - Fiber coupled QCW diode stack
Compare
Fiber coupled QCW diode modules  38.5 x 81 x 56 mm For more information

Specifications
Laser Type: Modulated
Fiber Type: Multi-Mode
Wavelength: 808/915/940/980 nm
Output Power: 600000 mW
Fiber Core Diamater: 0.6/1 um
Data Sheet
Inquire Price
APF series : Fiber coupled QCW diode stack
Quantel Laser by Lumibird
Add to watch list
APF series : Fiber coupled QCW diode stack
Compare
Fiber coupled QCW diode stack For more information

Specifications
Laser Type: Modulated
Fiber Type: Multi-Mode
Wavelength: 808/915/940/980 nm
Output Power: 600000 mW
Fiber Core Diamater: 0.6/1 um
Data Sheet
Inquire Price

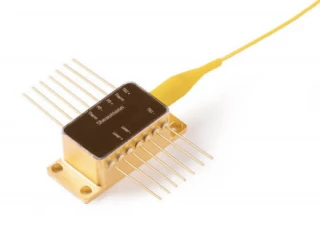

14 Pin Multimode 1064nm - 2W Butterfly Module
Sheaumann Laser, Inc.
Add to watch list
14 Pin Multimode 1064nm - 2W Butterfly Module
Compare
Sheaumann’s butterfly modules are electrically isolated and hermetically sealed with an internal TEC, thermistor and photodiode. Butterfly modules are ideal for industrial or commercial use but can be customized for military applications with optional protection against damaging reverse currents. Sheaumann’s proprietary ...

Specifications
Laser Type: Continuous Wave (CW)
Fiber Type: Multi-Mode
Wavelength: 1064 nm
Output Power: 2000 mW
Fiber Core Diamater: - um
Data Sheet
Inquire Price
14 Pin Multimode 975nm - 3W Butterfly Module
Sheaumann Laser, Inc.
Add to watch list
14 Pin Multimode 975nm - 3W Butterfly Module
Compare
Sheaumann’s butterfly modules are electrically isolated and hermetically sealed with an internal TEC, thermistor and photodiode. Butterfly modules are ideal for industrial or commercial use but can be customized for military applications with optional protection against damaging reverse currents. Sheaumann’s proprietary ...

Specifications
Laser Type: Continuous Wave (CW)
Fiber Type: Multi-Mode
Wavelength: 975 nm
Output Power: 3000 mW
Fiber Core Diamater: - um
Data Sheet
Inquire Price
14 Pin Multimode 808nm - 3W Butterfly Module
Sheaumann Laser, Inc.
Add to watch list
14 Pin Multimode 808nm - 3W Butterfly Module
Compare
Sheaumann’s butterfly modules are electrically isolated and hermetically sealed with an internal TEC, thermistor and photodiode. Butterfly modules are ideal for industrial or commercial use but can be customized for military applications with optional protection against damaging reverse currents. Sheaumann’s proprietary ...

Specifications
Laser Type: Continuous Wave (CW)
Fiber Type: Multi-Mode
Wavelength: 808 nm
Output Power: 3000 mW
Fiber Core Diamater: - um
Data Sheet
Inquire Price
14 Pin Multimode 915nm - 1.5W Butterfly Module
Sheaumann Laser, Inc.
Add to watch list
14 Pin Multimode 915nm - 1.5W Butterfly Module
Compare
Sheaumann’s butterfly modules are electrically isolated and hermetically sealed with an internal TEC, thermistor and photodiode. Butterfly modules are ideal for industrial or commercial use but can be customized for military applications with optional protection against damaging reverse currents. Sheaumann’s proprietary ...

Specifications
Laser Type: Continuous Wave (CW)
Fiber Type: Multi-Mode
Wavelength: 915 nm
Output Power: 1500 mW
Fiber Core Diamater: - um
Data Sheet
Inquire Price
Customized SW-Series Fiber Coupled Laser Module
Opt Lasers
Add to watch list
Customized SW-Series Fiber Coupled Laser Module
Compare
W-Series Laser Modules is a series of modules with single wavelength (single color) fiber coupled into a multimode fiber. As the light source high power visible laser diode is used. SW - Series laser modules are available in 405nm, 450nm, 520nm and 638nm at various power levels.

Specifications
Laser Type: Continuous Wave (CW)
Fiber Type: Multi-Mode
Wavelength: 405 nm
Output Power: - mW
Fiber Core Diamater: - um
Data Sheet
Inquire Price
Customized IRGBV-HPL-Series Fiber Coupled Laser Module
Opt Lasers
Add to watch list
Customized IRGBV-HPL-Series Fiber Coupled Laser Module
Compare
IRGBV-Series Laser Modules is a series of modules with multiple wavelengths couples into single multimode fiber. As the light source high-power laser diodes are used. IRGBV-HPL - Series laser modules are available in different combinations and with different wavelengths (405nm, 450nm, 520nm and 638nm) High-PowerCompact ...

Specifications
Laser Type: Continuous Wave (CW), Modulated
Fiber Type: Single Mode, Multi-Mode
Wavelength: 450 nm
Output Power: 2000 mW
Fiber Core Diamater: 300 um
Data Sheet
Inquire Price
Pilot Laser Red-Green
Electro Optical Components Inc (EOC)
Add to watch list
Pilot Laser Red-Green
Compare
IMM Photonics has developed a new duplex module as a pilot laser for high-power laser systems for the use in medical engineering or material processing. A red (635 nm) and a green laser diode (520 nm) are coupled on a common fiber. The fiber end can either be bare or equipped with all readily available fiber optic connectors during ...

Specifications
Laser Type: Modulated
Fiber Type: Multi-Mode
Wavelength: 520 nm
Output Power: 8-20 mW
Fiber Core Diamater: 50 um
Data Sheet
Inquire Price
Visotek DL Diode Laser Series Low Power
Visotek Inc
Add to watch list
Visotek DL Diode Laser Series Low Power
Compare
The Visotek DL Series Diode Laser is a cost-effective, turnkey platform for operating a variety of diodes. The 19” housing includes a fiber coupled diode and power supply/driver electronics. Its microprocessor-controlled cooling system adapts the temperature of the diode to the output power, thus stabilizing the wavelength. Visotek ...

Specifications
Laser Type: Continuous Wave (CW), Modulated
Fiber Type: Multi-Mode
Wavelength: 808 nm
Output Power: 10000 mW
Fiber Core Diamater: 50 um
Data Sheet
Inquire Price
Visotek DL Diode Laser Series High Power
Visotek Inc
Add to watch list
Visotek DL Diode Laser Series High Power
Compare
The Visotek DL Series Diode Laser is a cost-effective, turnkey platform for operating a variety of diodes. The 19” housing includes a fiber coupled diode and power supply/driver electronics. Its microprocessor-controlled cooling system adapts the temperature of the diode to the output power, thus stabilizing the wavelength. Visotek ...

Specifications
Laser Type: Continuous Wave (CW), Modulated
Fiber Type: Multi-Mode
Wavelength: 808 nm
Output Power: 250000 mW
Fiber Core Diamater: 400 um
Data Sheet
Inquire Price
Visotek DL Diode Laser Series Medium Power
Visotek Inc
Add to watch list
Visotek DL Diode Laser Series Medium Power
Compare
The Visotek DL Series Diode Laser is a cost-effective, turnkey platform for operating a variety of diodes. The 19” housing includes a fiber coupled diode and power supply/driver electronics. Its microprocessor-controlled cooling system adapts the temperature of the diode to the output power, thus stabilizing the wavelength. Visotek ...

Specifications
Laser Type: Continuous Wave (CW), Modulated
Fiber Type: Multi-Mode
Wavelength: 808 nm
Output Power: 30000 mW
Fiber Core Diamater: 200 um
Data Sheet
Inquire Price
FERMION I SERIES TURNKEY FIBRE COUPLED LASERS
Warsash Scientific Pty Ltd
Add to watch list
FERMION I SERIES TURNKEY FIBRE COUPLED LASERS
Compare
The Fermion I Series of Turnkey Fibre Coupled Lasers are designed to make using lasers easy and convenient. These systems have higher output powers, typically 10-60mW coupled to single mode fibre, versus 1mW or less that is usually available. A range of discrete wavelengths cover the span from 405nm to 1600nm. Internally the ...

Specifications
Laser Type: Continuous Wave (CW), Pulsed
Fiber Type: Multi-Mode
Wavelength: 1600 nm
Output Power: 50 mW
Fiber Core Diamater: 45000 um
Data Sheet
Inquire Price
FERMION III SERIES HIGHER POWER FIBRE COUPLED LASERS
Warsash Scientific Pty Ltd
Add to watch list
FERMION III SERIES HIGHER POWER FIBRE COUPLED LASERS
Compare
The Fermion III Series of Turnkey Fibre Coupled Lasers are designed to make using lasers easy and convenient. These systems have higher output powers, typically 50 to 490mW coupled to 100 micron core fibre. A range of discrete wavelengths cover the span from 375nm to 1064nm. Internally the lasers are coupled to 100 micron core fibre. ...

Specifications
Laser Type: Continuous Wave (CW), Pulsed
Fiber Type: Multi-Mode
Wavelength: 1064 nm
Output Power: 490 mW
Fiber Core Diamater: 100 um
Data Sheet
Inquire Price
GSDL-445-300 Stabilized Diode Laser
MicroMaterials
Add to watch list
GSDL-445-300 Stabilized Diode Laser
Compare
The GSDL-445-300 is a self contained turn-key laser system. It is a fiber coupled 445 nm diode laser with its spectrum stabilized on a single mode with a narrow linewidth of 0.002 nm. The output power is also stabilized at 300 mW. The power drift of less than 0.3 % over 8 hrs makes it an ideal laser for long term analytical ...

Specifications
Laser Type: Modulated
Fiber Type: Multi-Mode
Wavelength: 445 nm
Output Power: 300 mW
Fiber Core Diamater: 200 um
Data Sheet
Inquire Price
