IR Single Frequency DPSS Laser FPYL-1064-XXW-SLM
Description
The FPYL-1064-XXW-SLM is an infrared (IR) single frequency DPSS (Diode-Pumped Solid-State) laser designed for applications requiring stable and precise laser output. Operating at a wavelength of 1064nm with an output power ranging from 1 to 10W (to be specified), this laser provides a high-quality beam with single longitudinal mode operation and a TEM00 transverse mode.
With exceptional power stability, narrow spectral linewidth, and long coherence length, it is suitable for applications demanding high precision and single frequency performance.
IR Single Frequency DPSS Laser FPYL-1064-XXW-SLM
Specifications |
|
|---|---|
| Wavelength: | 1064 nm |
| Max Output Power: | 10000 mW |
| Cooling Method: | Chiller cooling |
| Tunability: | Fixed Wavelength |
| Power Stability (RMS, Over 4 Hours): | <3 % |
| Spectral Linewidth: | <0.00001 nm |
| Coherence Length: | >50 m |
| Noise Of Amplitude (RMS, 1-20MHz): | <0.5 % |
| Polarization Ratio: | >100:1 |
| Warm-up Time (minutes): | <15 minutes |
| Beam Diameter At The Aperture (1/e²): | ~1.5 mm |
| Beam Divergence (full Angle): | <1.5 mrad |

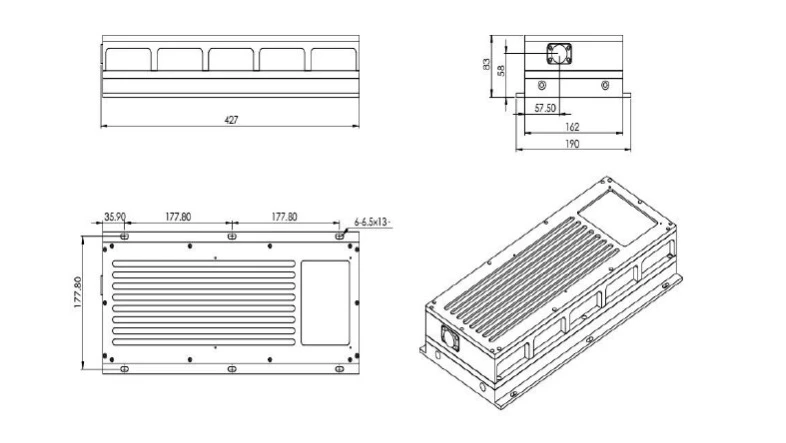

| Beam Height From Base Plate: | 58 mm |
| Pointing Stability After Warm-up: | <0.05 mrad |
| Operating Temperature: | 20-30 ℃ |
| Longitudinal Mode: | Single |
| Transverse Mode: | TEM00 |
Features
- Wavelength of 1064nm with ±1nm accuracy
- Output power ranging from 1 to 10W (to be specified)
- Continuous wave (CW) operating mode
- TEM00 transverse mode
- Single longitudinal mode
- Power stability of less than 1% (RMS, over 4 hours)
- Spectral linewidth of less than 0.00001nm
- Coherence length greater than 50m
- Low amplitude noise of less than 0.5% (RMS, 1-20MHz)
- High polarization ratio of greater than 100:1
- Fast warm-up time of less than 10 minutes
- M² factor of less than 1.2
- Beam diameter at the aperture (1/e²) of approximately 1.5mm
- Low beam divergence of less than 1.5mrad (full angle)
- Beam height from the base plate of 58mm
- Pointing stability of less than 0.05mrad after warm-up
- Operating temperature range of 20°C to 30°C
- Expected lifetime of 10,000 hours
Applications
- Interferometry
- Optical metrology
- Laser spectroscopy
- Holography
- Precision laser marking
- Laser trapping and cooling
- Atomic physics experiments
- Nonlinear optics
- Quantum optics
