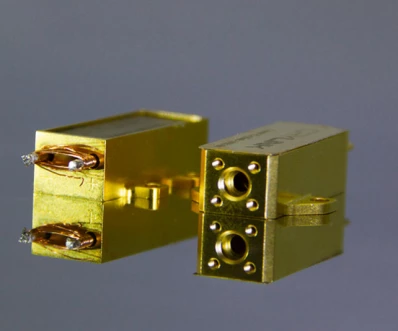

1535nm Eye-Safe solid state laser (Er Glass Laser)
Description
Wavelength of 1.4-2.0 um is less harmful to the human eye, so a laser with this wavelength range is called the human eye-safe laser. This wavelength range is located in the atmospheric transmission window, the absorption and scattering of the laser is only 1/50 of the 1.06um laser, which is of great significance for long distance action, especially for military applications.
1535nm Eye-Safe solid state laser (Er Glass Laser)
Specifications |
|
|---|---|
| Avg. Power: | 12m W |
| Wavelength: | 1535 nm |
| Repetition Rate: | 0.1-1kHz |
| Spatial Mode (M^2): | |
| Pulse Duration: | 4 ns |
| Pulse-to-Pulse Stability (RMS): | % |
| Cooling: | Air |
| CL1535-100μJ-SL001: | 6ns 20Hz |
| CL1535-200μJ-SL002: | 4.5ns 10Hz |
| CL1535-300μJ-SL003: | 6ns 10Hz |
| CL1535-40μJ-SL004: | 5ns 1kHz |
Features
Based on Er: glass passive Q-switching technology
Eye safety
Extremely light weight
The smallest package size of its kind in the world
Wide operating temperature range
Applications
Laser ranging
Laser irradiation
Laser radar
Target recognition
Laser medical treatment
Optical fiber communication
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
Nanjing Metalaser Photonics Co.,Ltd. -
On FindLight:
since 2018
Frequently Asked Questions
The wavelength range of the 1535nm Eye-Safe solid state laser is less harmful to the human eye, hence it is considered safe.
The applications of the 1535nm Eye-Safe solid state laser include laser ranging, laser irradiation, laser radar, target recognition, laser medical treatment, and optical fiber communication.
The 1535nm Eye-Safe solid state laser has a wide operating temperature range.
The wavelength range of the 1535nm Eye-Safe solid state laser is 1.4-2.0 um.
The 1535nm Eye-Safe solid state laser is extremely lightweight and has the smallest package size of its kind in the world.
