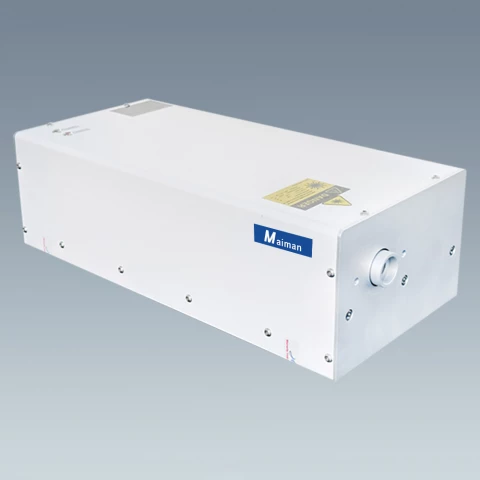

Maiman Laser 355nm 20W High Power UV Laser Source MMEPU-355-20
Tianjin Maiman Laser Technology Co., Ltd
Description
Maiman Laser 355nm High-power 20W UV laser source is a solid-state pulsed laser. It effectively solves the problem of power attenuation and has superior beam quality and pulse stability, worry-free use.
For more details, click Maiman Laser 355nm High Power UV Laser
Maiman Laser 355nm 20W High Power UV Laser Source MMEPU-355-20
Tianjin Maiman Laser Technology Co., Ltd
Specifications |
|
|---|---|
| Avg. Power: | 20 W |
| Wavelength: | 355 nm |
| Repetition Rate: | 50-500kHz |
| Spatial Mode (M^2): | 1.3 |
| Pulse Duration: | 12 ns |
| Pulse-to-Pulse Stability (RMS): | 3 % |

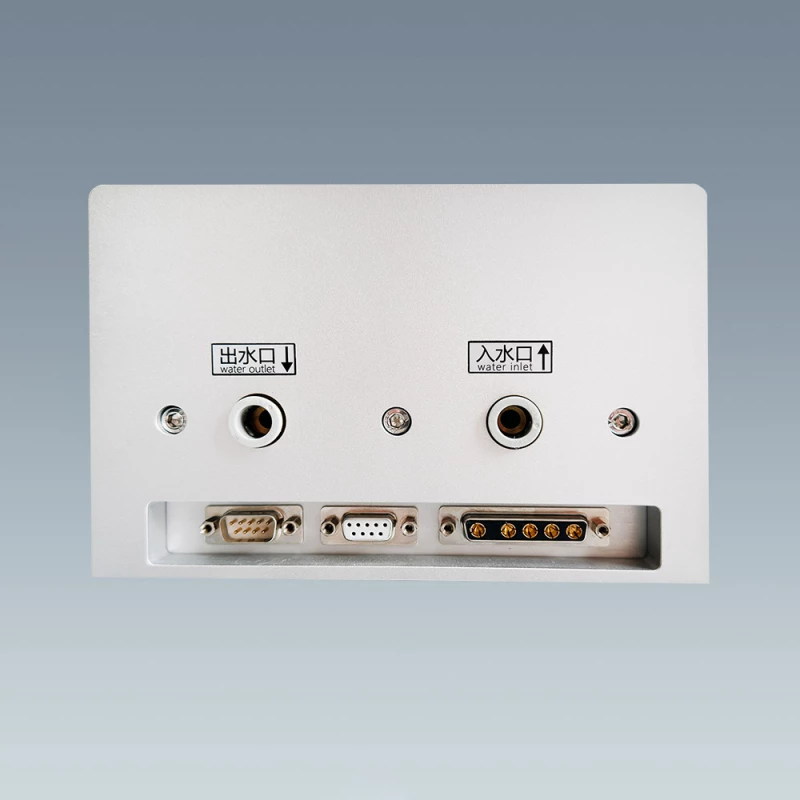

| Cooling: | Water-to-Water |
| Single Pulse Energy (uJ): | 400 uJ |
| Polarization Ratio: | Horizontal;>100:1 |

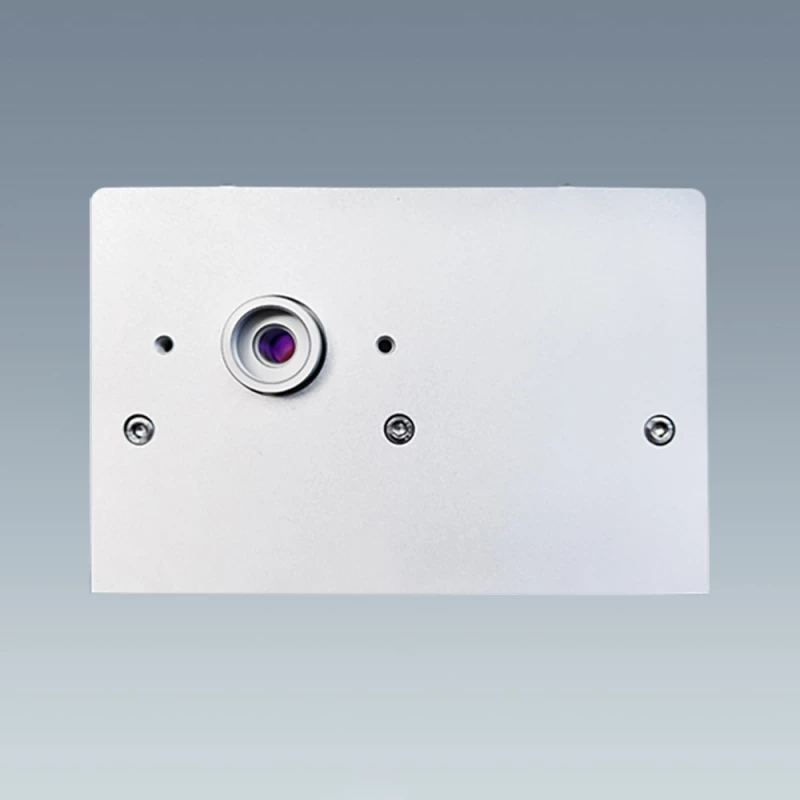

| Beam Diameter: | ~1mm(at exit)/~6mm(Built in beam expander) |
Features
- The laser power 20W;
- Adopt UV-clean patented technology to solve power attenuation, and worry-free use;
- The service life exceeds 20,000 hours, zero maintenance and regular commissioning is not required;
- Excellent beam quality M2 < 1.3, simple process and higher efficiency;
3-layer protection, protection grade IP65, more suitable for harsh working environment; - Rugged, easy to install and easy to integrate.
Applications
- Solar cell scribing
- PCB&FPC splitting and cutting
- Silicon wafer scribing
- Film cutting
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
Tianjin Maiman Laser Technology Co., Ltd -
On FindLight:
since 2023
Frequently Asked Questions
18-36 months
If our laser source's attenuation is more than 1% in 6 months or 8-10% @ 8.000 hours, Maiman Laser will be replacing the laser with a new one.
