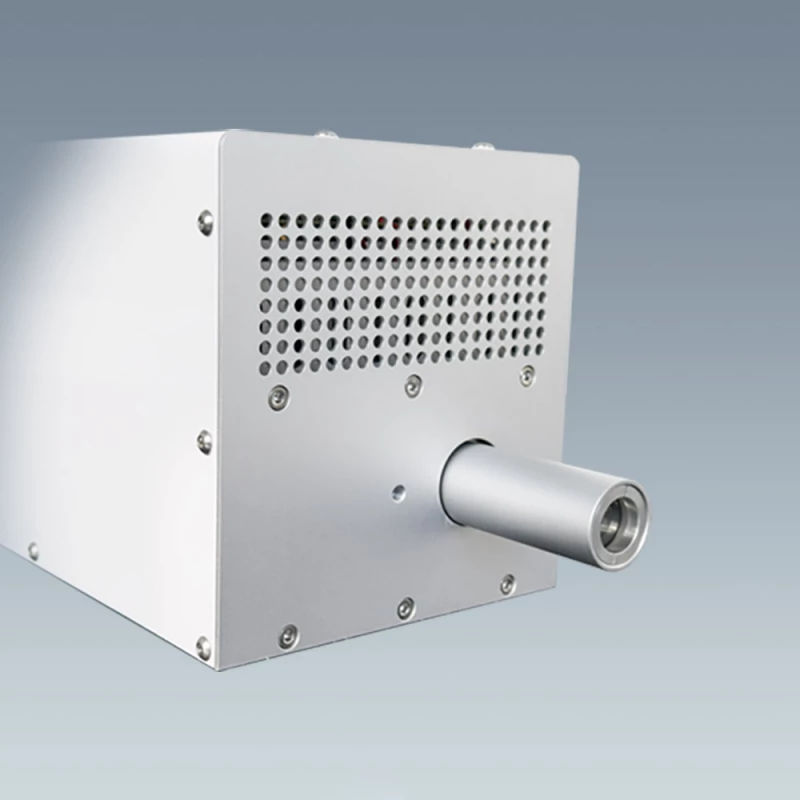

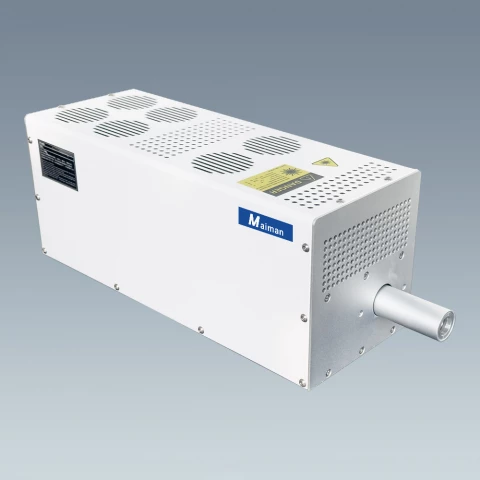

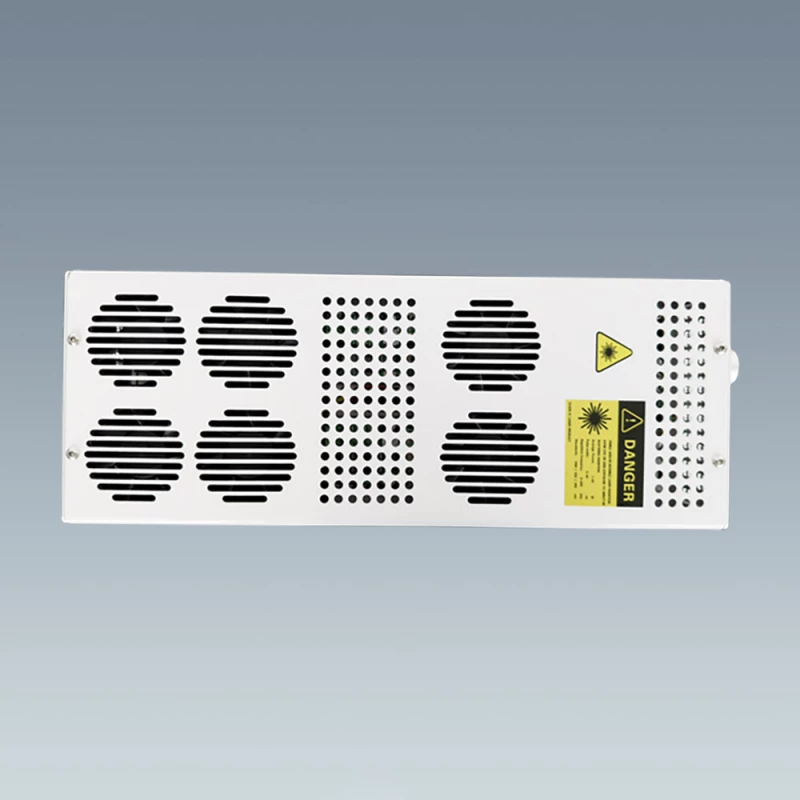

Maiman Laser 355nm Air-cooled UV Laser Source 3W 5W 8W MMEPU-AC-355-3/5/8
Description
Maiman Laser 355nm Air-cooled Utraviolet Laser Source with 3 options of output power-3W, 5W and 8W.
The air-cooled UV laser source does not require a chiller. It maintains superior beam quality and long-term stability and reliability even in harsh working environments. It can work properly at room temperature < 40° and RH < 50%.
It can complete high-precision, high-efficiency, carbon-free and exquisite markings on a wide range of materials including metal, plastic, glass, wood, stone, textiles, etc.
For more details, click Maiman Laser 355nm Air-cooled UV Laser
Maiman Laser 355nm Air-cooled UV Laser Source 3W 5W 8W MMEPU-AC-355-3/5/8
Specifications |
|
|---|---|
| Avg. Power: | 3/5/8 W |
| Wavelength: | 355±1 nm |
| Repetition Rate: | 20-500kHz |
| Spatial Mode (M^2): | 1.3 |
| Pulse Duration: | 15 ns |
| Pulse-to-Pulse Stability (RMS): | 3 % |
| Cooling: | Air |
| Single Pulse Energy (uJ): | 100/160/200 uJ |
| Beam Diameter: | ~0.8mm (at exit)/~5mm (6X beam divergence) |
| Long Term Stability: | <±3% |
| Polarization Ratio: | Horizontal;>100:1 |
| Beam Circularity: | >90% |
Features
- Solve power attenuation and meet 7*24 hours of work;
- Service life 20,000+ hours, zero maintenance, no need for regular commissioning;
- All-in-one laser, directly installed with a galvanometer, compatible with the rack of fibre laser marking machine;
- 3 layers of protection design, protection grade IP65, more suitable for harsh working environments (room temperature < 40°C, RH < 50%).
Applications
- Material marking - plastic, glass, metal molds, wood, packaging bags, jade, etc.
- Crystal internal engraving
- 3D printing
- Film cutting
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
Tianjin Maiman Laser Technology Co., Ltd -
On FindLight:
since 2023
Frequently Asked Questions
18-36 months
If our laser source's attenuation is more than 1% in 6 months or 8-10% @ 8.000 hours, Maiman Laser will be replacing the laser with a new one.
