Air DPSS

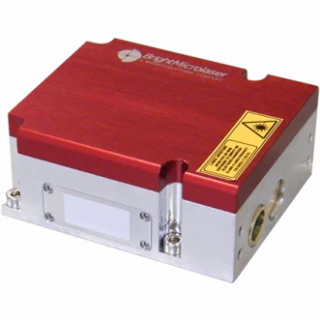

SB1-532-15-5: 532nm Microchip Laser
RPMC Lasers, Inc.
Add to watch list
SB1-532-15-5: 532nm Microchip Laser
Compare
The SB1-532-15-5 of our Microchip Series is a short nanosecond pulsed, 15uJ, low SWaP, ultra-compact, 5 kHz, passively Q-switched, DPSS laser.  The Microchip series, available at 1064, 946, 532, 473, 355 266, and 236.5nm, is capable of producing single-frequency operation with narrow linewidths, and an M^2 of <1.3 with a ...

Specifications
Avg. Power: 0.075 W
Wavelength: 532 nm
Repetition Rate: 0.001-5kHz
Spatial Mode (M^2): 1.3
Pulse Duration: 1.3 ns
Data Sheet
Inquire Price
SB1-532-20-1: Microchip Laser
RPMC Lasers, Inc.
Add to watch list
SB1-532-20-1: Microchip Laser
Compare
The SB1-532-20-1 of our Microchip Series is a short nanosecond pulsed, 20uJ, low SWaP, ultra-compact, 1 kHz, passively Q-switched, DPSS laser. Bright Microlaser has pushed its unique microchip laser technology further with the new, completely re-designed all-in-one SB1 model. Thanks to its advanced optical, mechanical and electronic ...

Specifications
Avg. Power: 0.02 W
Wavelength: 532 nm
Repetition Rate: 0.001-1kHz
Spatial Mode (M^2): 1.3
Pulse Duration: 1.3 ns
Data Sheet
Inquire Price
SB1-532-7-15: 532nm Microchip Laser
RPMC Lasers, Inc.
Add to watch list
SB1-532-7-15: 532nm Microchip Laser
Compare
The SB1-532-7-15 of our Microchip Series is a short nanosecond pulsed, 7uJ, low SWaP, ultra-compact, 15 kHz, passively Q-switched, DPSS laser. Bright Microlaser has pushed its unique microchip laser technology further with the new, completely re-designed all-in-one SB1 model. Thanks to its advanced optical, mechanical and electronic ...

Specifications
Avg. Power: 0.105 W
Wavelength: 532 nm
Repetition Rate: 0.001-15kHz
Spatial Mode (M^2): 1.3
Pulse Duration: 1.3 ns
Data Sheet
Inquire Price
SB1-946-12-5: 946nm Microchip Laser
RPMC Lasers, Inc.
Add to watch list
SB1-946-12-5: 946nm Microchip Laser
Compare
The SB1-946-12-5 of our Microchip Series is a short nanosecond pulsed, 12uJ, low SWaP, ultra-compact, 5 kHz, passively Q-switched, DPSS laser. Bright Microlaser has pushed its unique microchip laser technology further with the new, completely re-designed all-in-one SB1 model. Thanks to its advanced optical, mechanical and electronic ...

Specifications
Avg. Power: 0.06 W
Wavelength: 946 nm
Repetition Rate: 0.001-5kHz
Spatial Mode (M^2): 1.5
Pulse Duration: 2.0 ns
Data Sheet
Inquire Price
Onda 532nm Plus: 532nm High Energy Laser
RPMC Lasers, Inc.
Add to watch list
Onda 532nm Plus: 532nm High Energy Laser
Compare
The Onda nanosecond laser series, available with up to 10W at 1064nm and 532nm, was developed as a high-energy seeder for advanced MOPA systems. The Onda is a DPSS ns-laser platform aimed at high-end applications requiring both excellent beam quality and high peak power in materials such as metals, glass, plastics, and various ...

Specifications
Avg. Power: 10 W
Wavelength: 532 nm
Repetition Rate: 0-100kHz
Spatial Mode (M^2): 1.5
Pulse Duration: 10 ns
Data Sheet
Inquire Price
MPL NANO ONE
QS Lasers
Add to watch list
MPL NANO ONE
Compare
This compact and robust laser system boasts high pulse energy with excellent beam quality, ensuring precise material ablation and strong plasma generation. Advanced thermal management ensures stable operation, using only air cooling, while the exceptional beam quality guarantees consistent, accurate results across a wide range of ...

Specifications
Avg. Power: 1 W
Wavelength: 1064 nm
Repetition Rate: 0.001-0.1kHz
Spatial Mode (M^2): 1.3
Pulse Duration: 5-7 ns
Data Sheet
Inquire Price
SOL 6W-1064nm: 1064nm Nanosecond Laser
RPMC Lasers, Inc.
Add to watch list
SOL 6W-1064nm: 1064nm Nanosecond Laser
Compare
The SOL series is the most compact, air-cooled, Q-switched DPSS nanosecond laser available in the power range from 4W to 40W @ 1064nm. Available @ 1064nm, 532nm, and 355nm, the SOL laser series offers excellent beam quality and high peak power, capable of up to 10W and 650µJ at 532nm and 4W @ 355nm, making it the ideal source ...

Specifications
Avg. Power: 6 W
Wavelength: 1064 nm
Repetition Rate: 0.001-100kHz
Spatial Mode (M^2): 1.5
Pulse Duration: 15 ns
Data Sheet
Inquire Price
Wedge XB 532nm: 532nm Nanosecond Laser
RPMC Lasers, Inc.
Add to watch list
Wedge XB 532nm: 532nm Nanosecond Laser
Compare
The Wedge-XB laser series is a sub-nanosecond, 4mJ, single shot to 2KHz, air-cooled laser capable of 4MW of peak power at 1064nm. Second, third and fourth harmonics options (532nm, 355nm and 266nm) and wavelength conversion option (1.5um) widen the Wedge’s applications range. Based on a proprietary fast active Q-Switching ...

Specifications
Avg. Power: 2 W
Wavelength: 532 nm
Repetition Rate: 0.001-1kHz
Spatial Mode (M^2): 5
Pulse Duration: 1.5 ns
Data Sheet
Inquire Price
Wedge XB 1064nm: 1064nm Nanosecond Laser
RPMC Lasers, Inc.
Add to watch list
Wedge XB 1064nm: 1064nm Nanosecond Laser
Compare
The Wedge-XB laser series is a sub-nanosecond, 4mJ, single shot to 2KHz, air-cooled laser capable of 4MW of peak power at 1064nm. Second, third and fourth harmonics options (532nm, 355nm and 266nm) and wavelength conversion option (1.5um) widen the Wedge’s applications range. Based on a proprietary fast active Q-Switching ...

Specifications
Avg. Power: 1 W
Wavelength: 1064 nm
Repetition Rate: 0.001-1kHz
Spatial Mode (M^2): 5
Pulse Duration: 1.5 ns
Data Sheet
Inquire Price

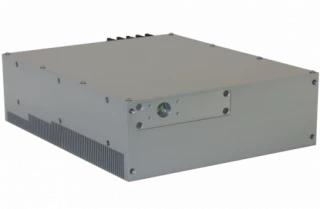

Wedge HB 532nm: 532nm Nanosecond Laser
RPMC Lasers, Inc.
Add to watch list
Wedge HB 532nm: 532nm Nanosecond Laser
Compare
The Wedge-HB laser series is a sub-nanosecond, 4mJ, single shot to 2KHz, air-cooled laser capable of 4MW of peak power at 1064nm. Second, third and fourth harmonics options (532nm, 355nm and 266nm) and wavelength conversion option (1.5um) widen the Wedge’s applications range. Based on a proprietary fast active Q-Switching ...

Specifications
Avg. Power: 2 W
Wavelength: 532 nm
Repetition Rate: 0.001-2kHz
Spatial Mode (M^2): 2
Pulse Duration: 1.5 ns
Data Sheet
Inquire Price
Wedge XF 1064nm: 1064nm Picosecond Laser
RPMC Lasers, Inc.
Add to watch list
Wedge XF 1064nm: 1064nm Picosecond Laser
Compare
Wedge XF sub-nanosecond (300ps), DPSS laser produces up to 70uJ of pulse energy at 1064nm, with operation from single shot to 100 kHz, in a compact, air-cooled OEM solution. Second, Third and Fourth Harmonics (532, 355 and 266nm output) and wavelength conversion option (1.5um) widen the suitable applications range for the ...

Specifications
Avg. Power: 1.5 W
Wavelength: 1064 nm
Repetition Rate: 10-100kHz
Spatial Mode (M^2): 1.2
Pulse Duration: 0.4 ns
Data Sheet
Inquire Price
Wedge XF 532nm: 532nm Picosecond Laser
RPMC Lasers, Inc.
Add to watch list
Wedge XF 532nm: 532nm Picosecond Laser
Compare
Wedge XF sub-nanosecond (300ps), DPSS laser produces up to 70uJ of pulse energy at 1064nm, with operation from single shot to 100 kHz, in a compact, air-cooled OEM solution. Second, Third and Fourth Harmonics (532, 355 and 266nm output) and wavelength conversion option (1.5um) widen the suitable applications range for the ...

Specifications
Avg. Power: 0.5 W
Wavelength: 532 nm
Repetition Rate: 10-100kHz
Spatial Mode (M^2): 1.3
Pulse Duration: 0.4 ns
Data Sheet
Inquire Price
Wedge HF 355nm: 355nm Picosecond Laser
RPMC Lasers, Inc.
Add to watch list
Wedge-HF-355: 355nm Picosecond Laser
Compare
Wedge family has been fully renewed in terms of performances and available models.    Wedge HB and XB models are currently available at 1064nm, 1570nm, 3100nm, 532nm, 355nm and 266nm. laser pulse energy reaches 4 mJ with 1.5 ns pulse width. Wedge-HF and Wedge-XF models are available in a very compact unit, only 8x9x19 ...

Specifications
Avg. Power: 0.8 W
Wavelength: 355 nm
Repetition Rate: 10-100kHz
Spatial Mode (M^2): 1.5
Pulse Duration: 0.6 ns
Data Sheet
Inquire Price
SOL 3W-532: 532nm Nanosecond Laser
RPMC Lasers, Inc.
Add to watch list
SOL 3W-532: 532nm Nanosecond Laser
Compare
SOL laser series is a compact, air-cooled DPSS nanosecond laser that is capable of up to 40W and 2mJ at 1064nm, is offered in a rugged, lightweight single unit design that allows for easy and reliable integration in micro-machining and marking applications. The SOL series design, available at both 1064nm and 532nm, is based on a ...

Specifications
Avg. Power: 3 W
Wavelength: 532 nm
Repetition Rate: 10-100kHz
Spatial Mode (M^2): 2
Pulse Duration: 15 ns
Data Sheet
Inquire Price
Wedge HF 266nm: 266nm Picosecond Laser
RPMC Lasers, Inc.
Add to watch list
Wedge HF 266nm: 266nm Picosecond Laser
Compare
The Wedge-HF laser is a sub-nanosecond, single shot to 100kHz DPSS laser capable of up to 4W of average power at 1064nm and is available with harmonics options at 532nm, 355nm and 266nm. Second, third and fourth harmonics options (532, 355 and 266nm) and wavelength conversion option (1.5um) widen the Wedge’s applications ...

Specifications
Avg. Power: 0.180 W
Wavelength: 266 nm
Repetition Rate: 10-100kHz
Spatial Mode (M^2): 1.5
Pulse Duration: 1.5 ns
Data Sheet
Inquire Price
SOL 10W-532: 532nm Nanosecond Laser
RPMC Lasers, Inc.
Add to watch list
SOL 10W-532: 532nm Nanosecond Laser
Compare
SOL laser series is a compact, air-cooled DPSS nanosecond laser that is capable of up to 40W and 2mJ at 1064nm, is offered in a rugged, lightweight single unit design that allows for easy and reliable integration in micro-machining and marking applications. The SOL series design, available at both 1064nm and 532nm, is based on a ...

Specifications
Avg. Power: 10 W
Wavelength: 532 nm
Repetition Rate: 0.001-100kHz
Spatial Mode (M^2): 1.5
Pulse Duration: 10 ns
Data Sheet
Inquire Price
SOL 40W-1064nm: 1064nm Nanosecond Laser
RPMC Lasers, Inc.
Add to watch list
SOL 40W-1064nm: 1064nm Nanosecond Laser
Compare
The SOL series is the most compact, air-cooled, Q-switched DPSS nanosecond laser available in the power range from 4W to 40W @ 1064nm. Available @ 1064nm, 532nm, and 355nm, the SOL laser series offers excellent beam quality and high peak power, capable of up to 10W and 650µJ at 532nm and 4W @ 355nm, making it the ideal source ...

Specifications
Avg. Power: 40 W
Wavelength: 1064 nm
Repetition Rate: 0.001-100kHz
Spatial Mode (M^2): 2.5
Pulse Duration: 5 ns
Data Sheet
Inquire Price
SOL 30W-1064nm: 1064nm Nanosecond Laser
RPMC Lasers, Inc.
Add to watch list
SOL 30W-1064nm: 1064nm Nanosecond Laser
Compare
The SOL series is the most compact, air-cooled, Q-switched DPSS nanosecond laser available in the power range from 4W to 40W @ 1064nm. Available @ 1064nm, 532nm, and 355nm, the SOL laser series offers excellent beam quality and high peak power, capable of up to 10W and 650µJ at 532nm and 4W @ 355nm, making it the ideal source ...

Specifications
Avg. Power: 30 W
Wavelength: 1064 nm
Repetition Rate: 0.001-100kHz
Spatial Mode (M^2): 1.5
Pulse Duration: 7 ns
Data Sheet
Inquire Price
SOL 20W-1064nm: 1064nm Nanosecond Laser
RPMC Lasers, Inc.
Add to watch list
SOL 20W-1064nm: 1064nm Nanosecond Laser
Compare
The SOL series is the most compact, air-cooled, Q-switched DPSS nanosecond laser available in the power range from 4W to 40W @ 1064nm. Available @ 1064nm, 532nm, and 355nm, the SOL laser series offers excellent beam quality and high peak power, capable of up to 10W and 650µJ at 532nm and 4W @ 355nm, making it the ideal source ...

Specifications
Avg. Power: 20 W
Wavelength: 1064 nm
Repetition Rate: 0.001-100kHz
Spatial Mode (M^2): 2.5
Pulse Duration: 10 ns
Data Sheet
Inquire Price
SOL 5W-532: 532nm Nanosecond Laser
RPMC Lasers, Inc.
Add to watch list
SOL 5W-532: 532nm Nanosecond Laser
Compare
SOL is the most compact Q-switched DPSS nanosecond laser from Bright Solutions available in the power range 4W to 40W in the IR, 3W to 10W at 532nm and 2W of 355nm. These air-cooled DPSS nanosecond lasers are offered in a rugged and lightweight single unit, designed to allow easy and reliable integration in micro-machining ...

Specifications
Avg. Power: 5 W
Wavelength: 532 nm
Repetition Rate: 0.001-100kHz
Spatial Mode (M^2): 2
Pulse Duration: 10 ns
Data Sheet
Inquire Price
On FindLight marketplace you will find 251 different Air DPSS from suppliers around the world. With just a few clicks you can compare different Air DPSS and get accurate price quotes based on your needs and quantity required. Note that some wholesale suppliers may offer discounts for large quantities. From any product page you can directly contact any vendor within seconds.
