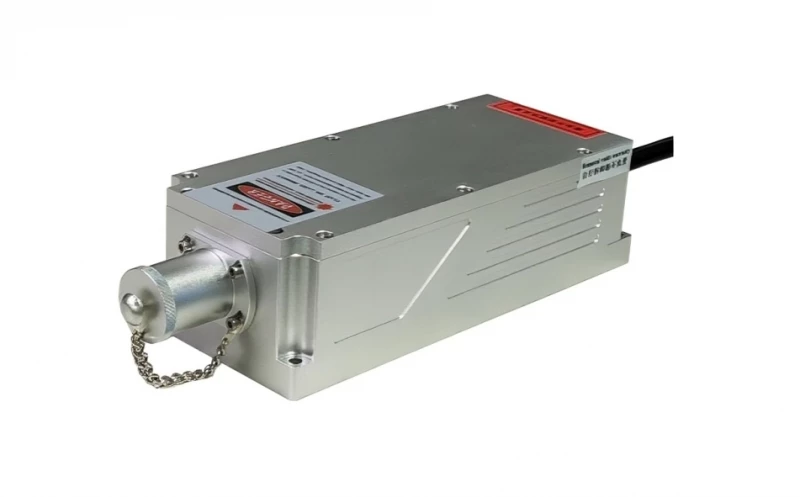

AO-S-266 266nm DPSS Ultraviolet Laser
Description
The AO-S series features all solid-state acousto-optic Q-switched lasers known for their high peak power, high repetition rate, and short pulse duration. These lasers find widespread use in material processing, measurements, scientific research, and more.
AO-S-266 266nm DPSS Ultraviolet Laser
Specifications |
|
|---|---|
| Avg. Power: | 0.1 W |
| Wavelength: | 266 nm |
| Repetition Rate: | .001-~5kHz |
| Spatial Mode (M^2): | <2 |
| Pulse Duration: | ~4 ns |
| Pulse-to-Pulse Stability (RMS): | 10 % |
| Cooling: | Conductive |
| Operating Mode: | Acousto-Optics Q-switched |
| Single Pulse Energy: | 1~5 μJ |
| Transverse Mode: | Near TEM00 |
| Beam Diameter At The Aperture: | 1/e 2 (mm) Elliptical(4:1), Beam spot ~1.5×0.4mm |
| Beam Divergence, Full Angle: | <2 mrad |
| Polarization Ratio: | >100:1 |
| Warm-up Time: | <10 min |
| Beam Height From Base Plate: | 30 mm |
| Operating Temperature: | 10~35 °C |
| Power Supply (90-264VAC): | PSU-AOM-DL |
| Expected Lifetime: | 5000 hours |
| Warranty: | 1 year |
Features
- High peak power
- High repetition rate
- Short pulse duration
- Stable performance
- Easy operation
- Long lifetime
Applications
- Material processing
- Measurements
- Scientific research
