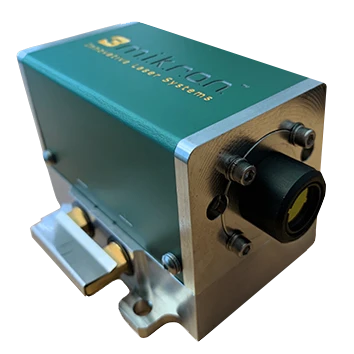

High Power 2 µm DPSSL DPM-100 (Tm:YAG) free / fiber
Description
The world's most powerful diode-pumped Tm:YAG laser module is available for industrial and medical applications. The average output power of up to 100 W and repetition rates of up to 500 Hz allows controlled and at the same time precise treatments.
High Power 2 µm DPSSL DPM-100 (Tm:YAG) free / fiber
Specifications |
|
|---|---|
| Avg. Power: | 100 / 80 W |
| Wavelength: | 2020 nm |
| Repetition Rate: | 0-500kHz |
| Spatial Mode (M^2): | 40 |
| Pulse Duration: | 100000 to 500000 ns |
| Pulse-to-Pulse Stability (RMS): | - % |
| Cooling: | Water-to-Water |
| Pulse Energy: | 1-8 / 0,8-6,4 J |
Features
- Compact monolithic laser systems
- Highly efficient diode pumping
- No high-voltage required
- Reduced waste heat
- Fiber-coupled versions available
- Maintenance free
- Process variability
Applications
- Medical applications
- Dentistry
- OEM applications
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Liechtenstein
-
Sold by:
-
On FindLight:
since 2015
Frequently Asked Questions
The average output power of the DPM-100 laser module is up to 100 W.
The DPM-100 laser module is suitable for medical applications, dentistry, and OEM applications.
No, the DPM-100 laser module does not require high voltage.
Yes, the DPM-100 laser module is maintenance-free.
Yes, fiber-coupled versions are available for the DPM-100 laser module.
