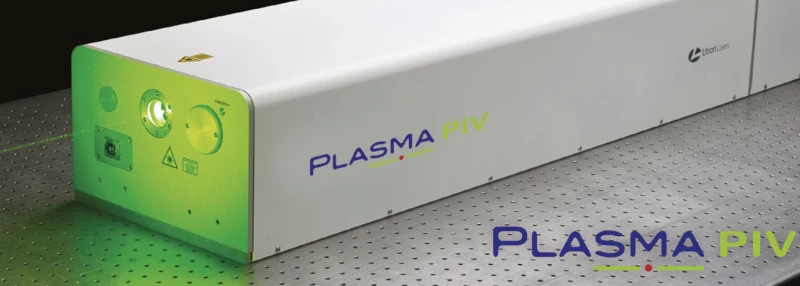

Litron Plasma P-75-100 PIV Laser
Description
The Plasma PIV system is a fully diode pumped dual head laser system designed specifically for PIV applications. It comprises two fully independent frequency doubled Nd:YAG lasers, that are beam combined to a common beam axis. These lasers each produce 532nm outputs of 100mJ per pulse up to 150Hz and 60mJ at 200Hz with pulse lengths of ~10ns. Pulsed diode pumping, ultra-stable mechanics, damage resistant optics and innovative design make the Plasma PIV system highly reliable. Offering a circular homogenous beam with a low M2 it is an ideal tool for high brightness, high homogeneity light-sheet formation.
Litron Plasma P-75-100 PIV Laser
Specifications |
|
|---|---|
| Avg. Power: | 75 W |
| Wavelength: | 532 nm |
| Repetition Rate: | 0-200kHz |
| Spatial Mode (M^2): | <10 |
| Pulse Duration: | 10 ns |
| Pulse-to-Pulse Stability (RMS): | 1.5 % |
| Cooling: | Water-to-Water |
Features
Energy up to 100mJ at 100Hz, 60mJ at 200Hz
10ns pulse duration
Variable repetition rate from 0 to 200Hz
M2
RMS stability <0.2% / 5 hours
Ultra compact PSU and cooler
Homogenous beam profile for optimal light-sheet formation
Intuitive operation using the LUCi touch screen control interface
Applications
PIV
Particle Sizing
Ti:S Pumping
Combustion Analysis
Laser Induced Fluorescence
Laser Peening
Double Pulse LIBS
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
The system benefits of the Litron Plasma P-100-100 PIV Laser include pulsed diode pumped resonator design with long life diode modules, motorized attenuator for precise energy control, independent energy control of each laser head, easy configuration for 3rd and 4th harmonics for LIF or PLIF, extremely compact laser head compared to lamp pumped equivalent, dedicated power supply and chiller, ruggedized laser head for harsh environments, and worldwide warranty and service.
Some applications of the Litron Plasma P-100-100 PIV Laser include PIV, particle sizing, Ti:S pumping, combustion analysis, laser induced fluorescence, laser peening, and double pulse LIBS.
The Litron Plasma P-75-100 PIV Laser is a fully diode pumped dual head laser system designed specifically for PIV applications.
Each laser head produces 532nm outputs of up to 100mJ per pulse up to 150Hz and 60mJ at 200Hz with pulse lengths of ~10ns.
The M2 RMS stability of the laser is <0.2% / 5 hours.
