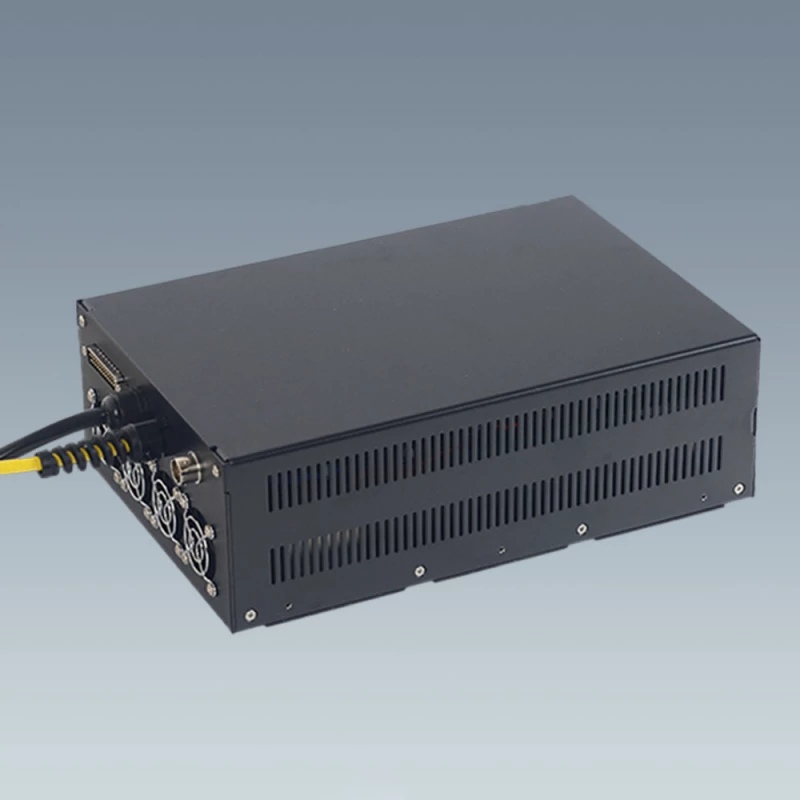

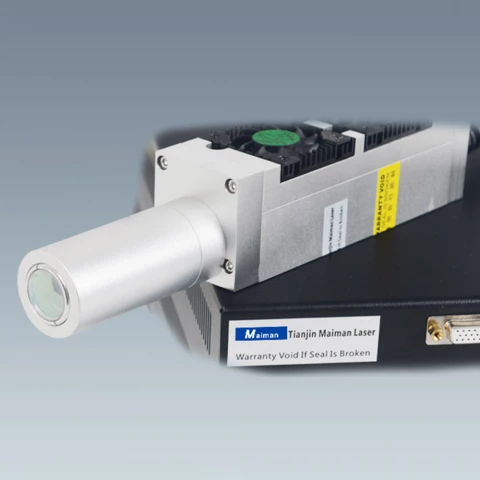

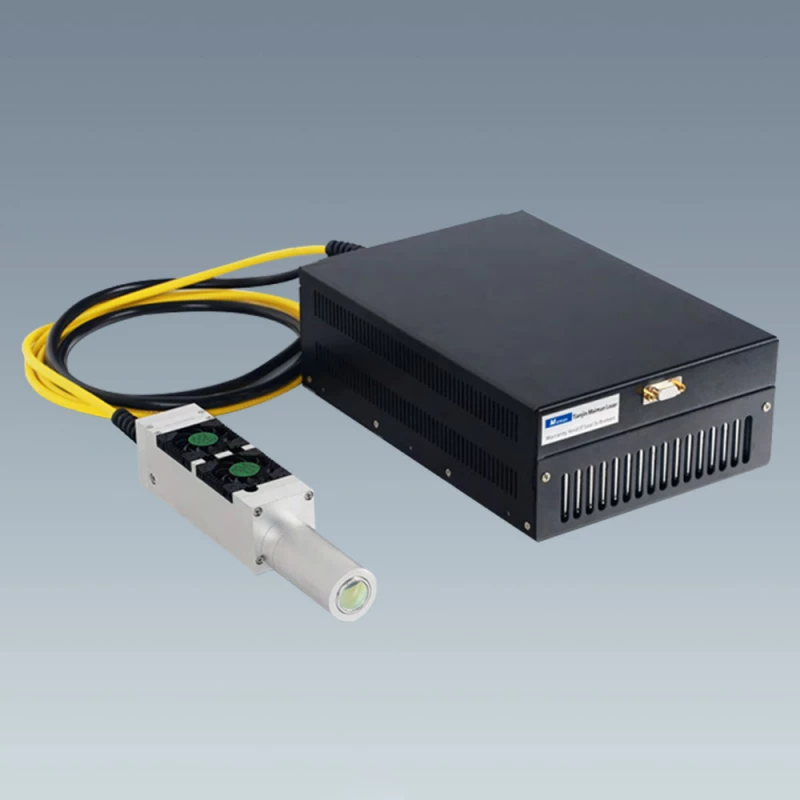

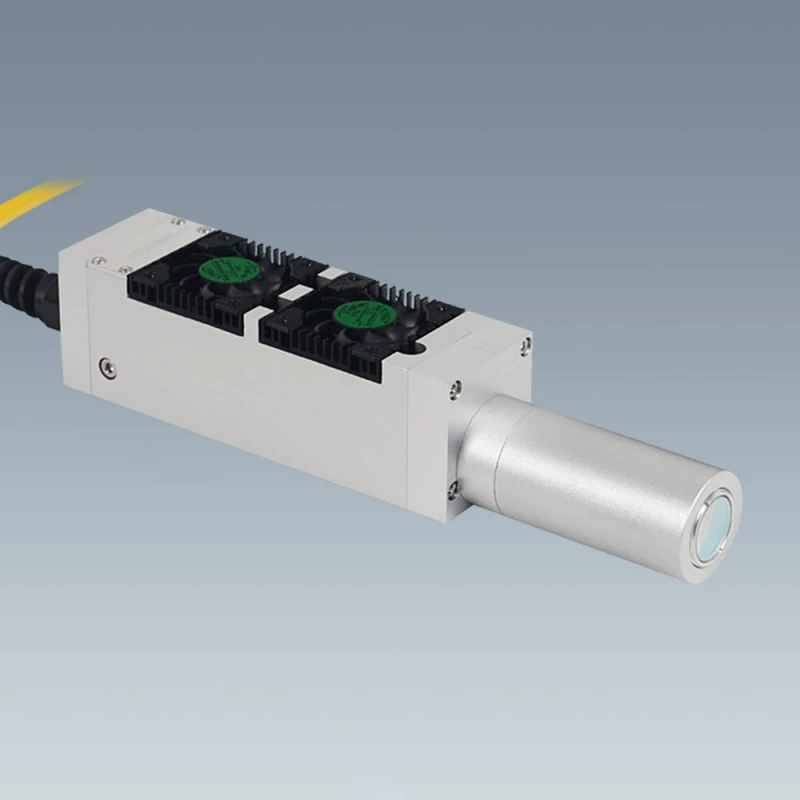

Maiman Laser 1064nm End Pumped Fiber Coupled Cold Light Infrared laser for High-reflective Material Marking
Tianjin Maiman Laser Technology Co., Ltd
Description
The frequency 20-30kHz, the short pulse width maintains at 6-8ns, resulting in lower processing heat and higher peak power, can achieve alumina black marking easily, with stronger processing capacity.
For more details, click Maiman Laser 1064nm Cold Light Infrared Laser
Maiman Laser 1064nm End Pumped Fiber Coupled Cold Light Infrared laser for High-reflective Material Marking
Tianjin Maiman Laser Technology Co., Ltd
Specifications |
|
|---|---|
| Avg. Power: | 8±1 W |
| Wavelength: | 1064 nm |
| Repetition Rate: | 20-30kHz |
| Spatial Mode (M^2): | ＜1.5 |
| Pulse Duration: | ~7 ns |
| Pulse-to-Pulse Stability (RMS): | <±3% % |
| Cooling: | Air |
Features
- The laser power 5-10W
- The short pulse width 6-8ns, the processing heat is only 1/10 that of fiber laser, which will not cause plastic scorch
- The peak power＞30kW, which is 10 times that of fiber laser, the processing capacity is stronger
- Anti-reflection function, easy to deal with high reflective materials such as gold, silver and copper
- Ultra-high stability, with service life exceeds 20,000 hours
Applications
- Material marking - Auto parts, high reflective materials, plastic shell, etc.
