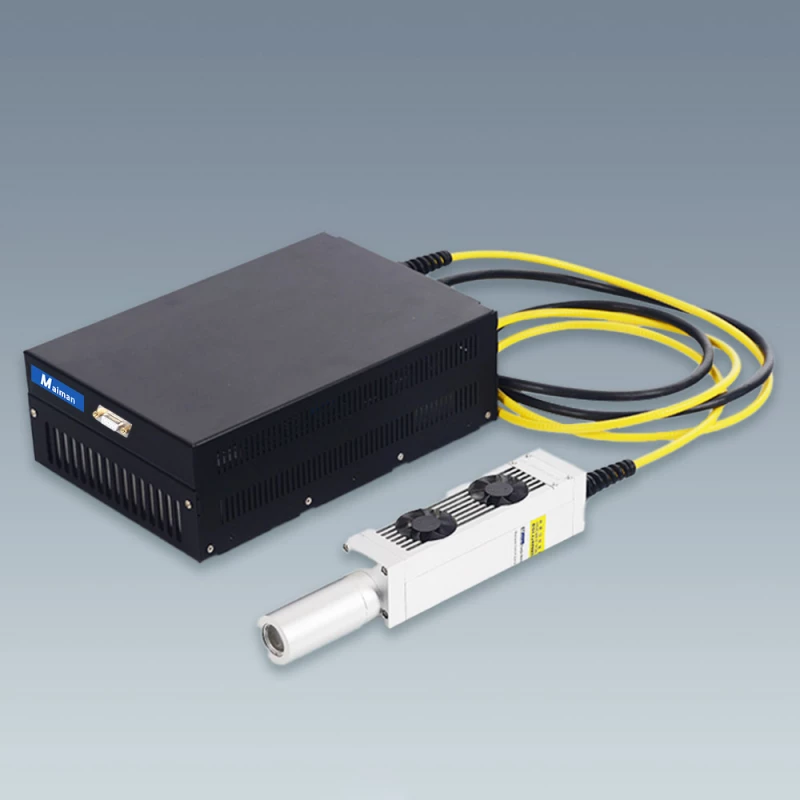

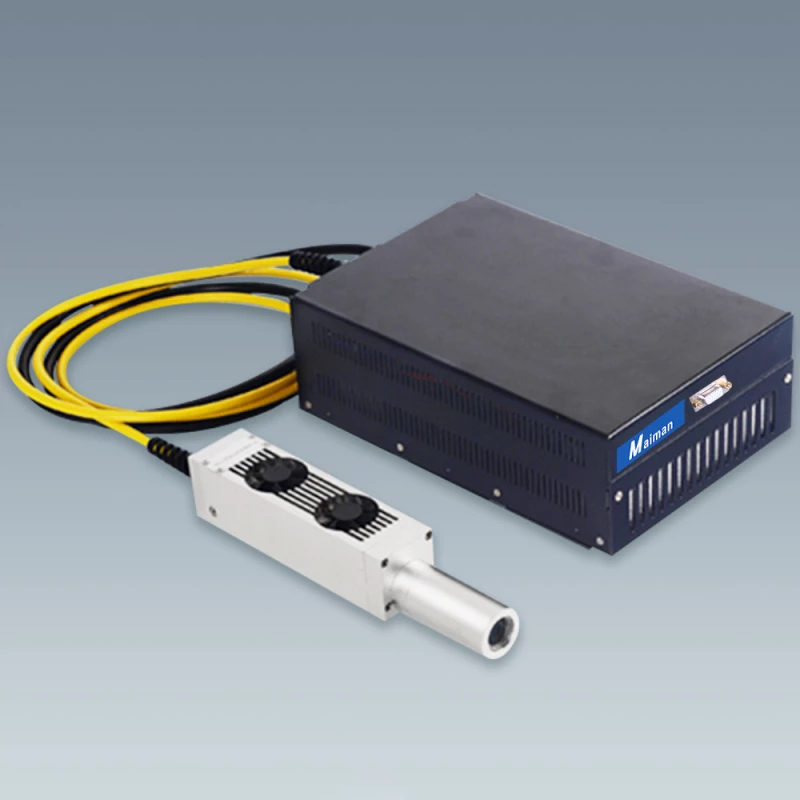

Maiman Laser 532nm End Pumped Fiber Coupled Green Laser 5 Watt MMEPGF-532-5L
Tianjin Maiman Laser Technology Co., Ltd
Description
This is an end pumped solid state fiber coupled output green laser. The repetition rate 20-30kHz, the pulse width maintains at 6-8ns, lower processing heat, higher peak power, better processing capacity.
For more details, click Maiman Laser 532nm Fiber Coupled Green Laser
Maiman Laser 532nm End Pumped Fiber Coupled Green Laser 5 Watt MMEPGF-532-5L
Tianjin Maiman Laser Technology Co., Ltd
Specifications |
|
|---|---|
| Avg. Power: | 5±0.5 W |
| Wavelength: | 532 nm |
| Repetition Rate: | 20-30kHz |
| Spatial Mode (M^2): | <1.3 |
| Pulse Duration: | ~7 ns |
| Pulse-to-Pulse Stability (RMS): | <±3% % |
| Cooling: | Air |
Features
- The laser power 4-5W
- Narrow pulse width, low thermal effect of processing, not easy to cause scorch on the plastic surface
- High peak power, strong processing ability, capable of processing more materials;
- Air-cooled structure, compact laser head, compatible with the optical path of fiber laser
- Service life exceeds 20000 hours
Applications
- Packaging films marking
- Gold-plated surface blackening treatment
- Metallic materials marking
- 3C product surface marking
