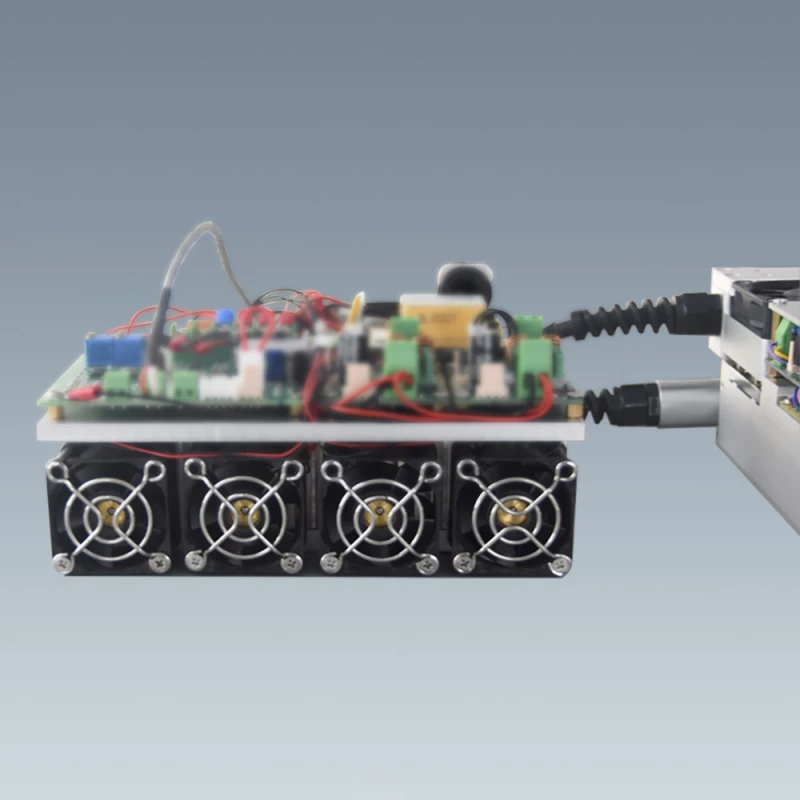

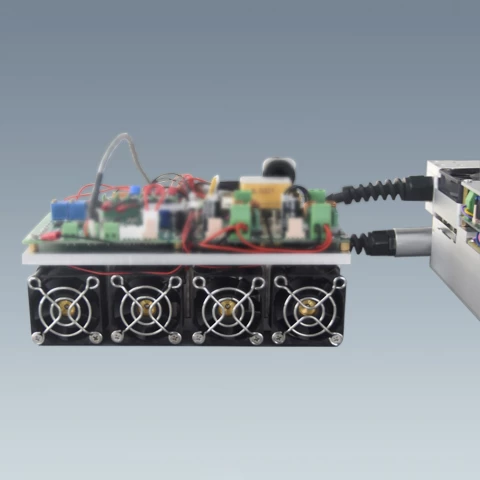

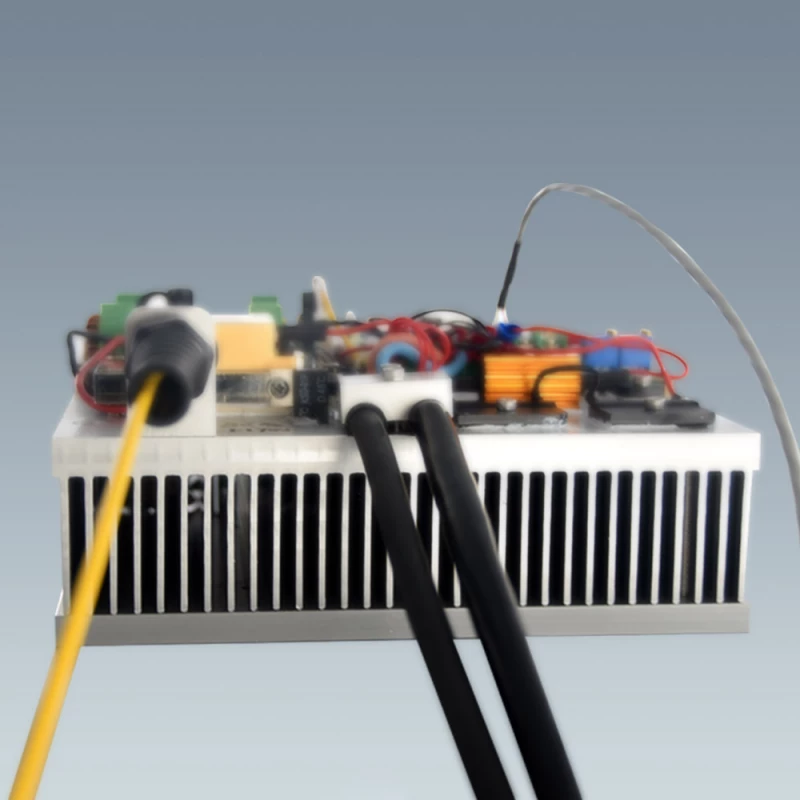

Maiman Laser 355nm Mini fiber-coupled air-cooled UV laser source 1Watt MMEPU-D-355-1
Tianjin Maiman Laser Technology Co., Ltd
Description
Compact size, can be held up with one hand; the pulse width 6-8ns, ultra-high peak power perfectly to realize the surface marking of electronic products.
For more details, click Maiman Laser 355nm Mini UV Laser 1 watt
Maiman Laser 355nm Mini fiber-coupled air-cooled UV laser source 1Watt MMEPU-D-355-1
Tianjin Maiman Laser Technology Co., Ltd
Specifications |
|
|---|---|
| Avg. Power: | 1 W |
| Wavelength: | 355±1 nm |
| Repetition Rate: | 15-20kHz |
| Spatial Mode (M^2): | <1.2 |
| Pulse Duration: | 7 ns |
| Pulse-to-Pulse Stability (RMS): | <3 % |
| Cooling: | Air |
| Single Pulse Energy: | 50 uJ |
| Long Term Stability: | <±3 % |
| Polarization Ratio: | Vertical;>100:1 |
| Beam Diameter: | 7 mm |
Features
- The laser power 1W;
- Solve power attenuation and meet 7*24 hours of work;
- Service life exceeds 20,000 hours, zero maintenance, no need for regular commissioning;
- Fiber coupled structure, laser head is compatible with optical path of fiber laser;
- Air-cooled laser and easy to integrate.
Applications
- Diamond girdle marking
- Precision marking on plastic and metal
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
Tianjin Maiman Laser Technology Co., Ltd -
On FindLight:
since 2023
Frequently Asked Questions
This fiber coupled UV laser's fiber cable is 2 meter long, we can provide custom length, like 3m or 5m.
Yes, we can increase its laser power to 1.3 watt.
It's air-cooled UV laser.
