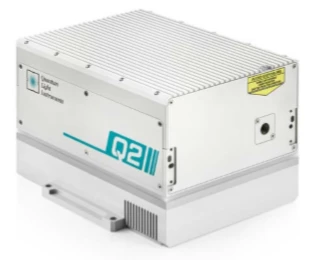

Quantas-Q2-266 High Energy Compact Nanosecond DPSS Laser
Description
Introducing the Q2 series Diode Pumped Air-cooled Q-switched Laser, a cutting-edge solution for applications demanding high peak power pulses. Engineered by Quantum Light Instruments, this laser boasts innovative water-free laser crystal end-pumping technology, delivering Gaussian-like, low-divergence laser beams.
With its versatile platform, the Q2 laser can be configured in multiple ways to meet diverse requirements. It offers pulse energies of up to 80 mJ and an impressive average power of up to 2 W, along with pulse repetition rates of up to 100 Hz. Its compact design integrates all laser electronics, eliminating the need for bulky external components.
The Q2 series is equipped with built-in sync pulse generators, remote monitoring capabilities via Ethernet interface, and optional accessories such as pulse energy monitors and harmonic generators for extended functionality. Whether used in LIBS, LIDAR, laser ablation, or other applications, the Q2 laser ensures precision, reliability, and ease of operation, making it the ideal choice for researchers and industrial users alike.
Quantas-Q2-266 High Energy Compact Nanosecond DPSS Laser
Specifications |
|
|---|---|
| Avg. Power: | 0.140 W |
| Wavelength: | 266 nm |
| Repetition Rate: | 0-0.02kHz |
| Spatial Mode (M^2): | -- |
| Pulse Duration: | 8 ns |
| Pulse-to-Pulse Stability (RMS): | 0.7 % |
| Cooling: | Air |
| Pulse Energy: | 1-.12 mJ |
| Beam Profile: | bell-shaped, >80% fit to Gaussian |
| Polarization: | linear, horizontal |
| Power Drift: | ± 3.0 % |
| Beam Divergence: | < 1.5 mrad |
| Jitter RMS: | 0.5 ns |
| Laser Head Dimensions: | 160 × 230 × 141 mm³ |
| Controller Dimensions: | 108 × 191 × 59 mm³ |
| Power Adapter Dimensions (typ.): | 80 × 120 × 60 mm³ |
| Ambient Temperature: | 15 – 30 °C |
| Relative Humidity: | 10 – 80 % (non-condensing) |
| Mains Voltage: | 90 – 230 VAC, single phase, 47 – 63 Hz |
| Average Power Consumption: | 30 W |
Features
- Up to 80 mJ pulse energy and up to 2 W average power
- Up to 100 Hz pulse repetition rate
- Air-cooled (water-free)
- 5 – 10 ns pulse duration
- Smoothly variable pulse repetition rate for 1053 nm output wavelength models
- Built-in sync pulse generator for triggering user equipment
- Remote monitoring and control via built-in Ethernet interface
- Optional 2 – 3 ns pulse duration at up to 60 mJ pulse energy (short cavity version)
- Optional attachable attenuator for fundamental wavelength
- Optional attachable pulse energy monitor
- Optional attachable 2nd harmonic generator
- Optional stand-alone 2nd, 3rd, 4th, or 5th harmonic generator
- Optional two-channel pulse generator
- Optional attachable beam guiding module
- Optional stand-alone air-purging unit for long lifetime of UV optics
Applications
- Light Induced Breakdown Spectroscopy (LIBS)
- Light Detection And Ranging (LIDAR)
- LCD repair
- Laser ablation/cleaning
- Time-of-Flight Spectroscopy (TOFS)
- Light Induced Fluorescence (LIF) Spectroscopy
- Flash photolysis
- Pulsed Light Deposition (PLD)
- Ophthalmology
- Time-domain thermoreflectance (TDTR)
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
Yes, the laser can be configured to emit 1053 nm or 1064 nm wavelength from Nd:YLF or Nd:YAG laser crystals respectively.
The Quantas-Q2-266 laser is suitable for a wide range of applications, including Light Induced Breakdown Spectroscopy (LIBS), Laser ablation/cleaning, Time-of-Flight Spectroscopy (TOFS), and Ophthalmology.
The Q2 laser boasts an innovative design resulting in a compact, user-friendly turnkey system that requires little maintenance. It integrates all laser electronics into its housing, eliminating the need for chillers or bulky power supplies.
Yes, the Q2 laser can be remotely monitored and controlled via a built-in Ethernet interface, allowing users to control the laser using any computer or even a cell phone with a modern web browser. Additionally, an API is provided for integration with user devices.
Optional accessories include attachable second harmonic generators, stand-alone harmonic generators, motorized attenuators, pulse energy monitors, two-channel pulse generators, attachable beam guiding modules, and air-purging units for UV optics longevity.
