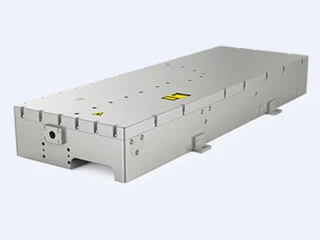

Spruce Low-Power 35Watt Nanosecond Green Laser Spruce-532-35
Description
Huaray-Spruce Mid-Power Nanosecond Green DPSS Lasers (35W) especially designed for industrial micro-machining field with high-quality laser beam, have the best reliability in industrial field of 24/7, which is suitable for industrial manufacturing environment. Meanwhile, they are characterized by long lifetime, shortest average maintenance time and low usage cost.
Spruce Low-Power 35Watt Nanosecond Green Laser Spruce-532-35
Specifications |
|
|---|---|
| Avg. Power: | 35 W |
| Wavelength: | 532 nm |
| Repetition Rate: | 50-200kHz |
| Spatial Mode (M^2): | 1.2 |
| Pulse Duration: | 20 ns |
| Pulse-to-Pulse Stability (RMS): | 3 % |
| Cooling: | Water-to-Water |
Features
- Stable output of power and pulse width
- Excellent beam quality, M²<1.2
- High beam pointing stability
- Wide repetition rate range:20-200kHz
- Controllable with RS232 interface
- Unique Intracavity frequency doubling technology.
- Triggerable external
Applications
The products are mainly used in FPC/PCB cutting, ceramic drilling dicing, glass/wafer cutting, applications of electronic packaging separated monomer; microporous production of material specific metal; clear the surface of the film, amorphous silicon thin film solar panels coated dash, etc., and is suitable for most metal and non-metallic surface machining or processing of the plated layer.
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
External Vendor
Claim Huaray Precision Laser Co. Ltd. Page to edit and add data
Frequently Asked Questions
The output power of the Spruce Low-Power 35Watt Nanosecond Green Laser is greater than 35W at 60kHz.
The wavelength of the Spruce Low-Power 35Watt Nanosecond Green Laser is 532nm.
The beam quality of the Spruce Low-Power 35Watt Nanosecond Green Laser is excellent, with M²<1.2.
The polarization ratio of the Spruce Low-Power 35Watt Nanosecond Green Laser is vertical, with a ratio greater than 100:1.
The Spruce Low-Power 35Watt Nanosecond Green Laser is classified as a Class 4 laser.
