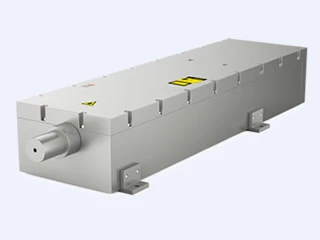

Spruce Low-Power Nanosecond Green Laser Spruce-532-10
Description
Huaray-Spruce Low-Power Green DPSS Lasers (10W) especially designed for industrial micro-machining field with high-quality laser beam, have the best reliability in industrial field of 24/7, which is suitable for industrial manufacturing environment. Meanwhile, they are characterized by long lifetime, shortest average maintenance time and low usage cost.
Spruce Low-Power Nanosecond Green Laser Spruce-532-10
Specifications |
|
|---|---|
| Avg. Power: | 10 W |
| Wavelength: | 532 nm |
| Repetition Rate: | 20-200kHz |
| Spatial Mode (M^2): | 1.2 |
| Pulse Duration: | 20 ns |
| Pulse-to-Pulse Stability (RMS): | 3 % |
| Cooling: | Water-to-Water |
Features
- Stable output of power and pulse width
- Excellent beam quality, M²<1.2
- High beam pointing stability
- Wide repetition rate range:20-200kHz
- Controllable with RS232 interface
- Unique Intracavity frequency doubling technology.
- Triggerable external
Applications
The products are mainly used in FPC / PCB cutting, ceramic drilling dicing, glass / wafer cutting, applications of electronic packaging separated monomer; microporous production of material specific metal; clear the surface of the film, amorphous silicon thin film solar panels coated dash, etc., and is suitable for most metal and non-metallic surface machining or processing of the plated layer.
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
External Vendor
Claim Huaray Precision Laser Co. Ltd. Page to edit and add data
Frequently Asked Questions
The Spruce Low-Power Nanosecond Green Laser is mainly used for FPC/PCB cutting, ceramic drilling dicing, glass/wafer cutting, applications of electronic packaging separated monomer, microporous production of material specific metal, clear the surface of the film, amorphous silicon thin film solar panels coated dash, etc.
The power output of the Spruce Low-Power Nanosecond Green Laser is greater than 10W at 50kHz.
The Spruce Low-Power Nanosecond Green Laser has excellent beam quality with M²<1.2.
The polarization ratio of the Spruce Low-Power Nanosecond Green Laser is vertical and greater than 100:1.
The size of the laser head for the Spruce Low-Power Nanosecond Green Laser is 517.5×130×84 mm³.
