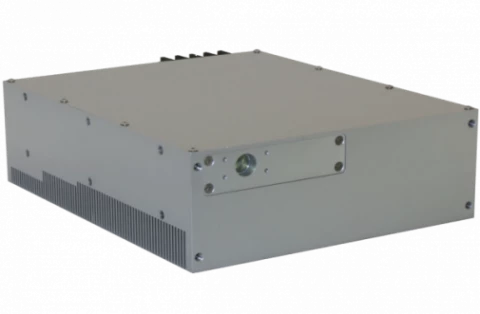

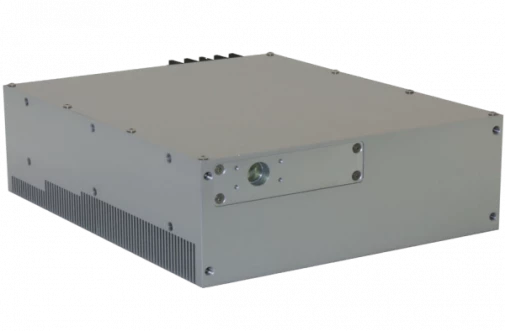

Wedge HF 266nm: 266nm Picosecond Laser
Description
The Wedge-HF laser is a sub-nanosecond, single shot to 100kHz DPSS laser capable of up to 4W of average power at 1064nm and is available with harmonics options at 532nm, 355nm and 266nm. Second, third and fourth harmonics options (532, 355 and 266nm) and wavelength conversion option (1.5um) widen the Wedge’s applications range.
Based on a proprietary fast active Q-Switching technology, these sealed DPSS lasers are insensitive to vibrations and harsh environments. The compact and lightweight package represents a great benefit in LIDAR and other aerospace applications, while short pulses and high peak powers, with relatively low heat generation, allows for efficient ablation and non-linear interaction in materials used for OEM applications such as micro-machining and specialty marking of glass, metals, polymers and other hard and soft materials, as well as scientific applications, including LIBs, spectroscopy and medical diagnostics.
Wedge is a flexible platform for realizing custom solutions such as meeting specific time/energy requirements, vibe/shock or other extreme environmental conditions, as well as compliance to Mil-specifications. High power amplifiers can be added to standard oscillators in order to increase performance and meet the demands of a variety of industrial and aerospace applications.
Several Wedge based MOPA lasers are currently employed as “optical engines” in high-demanding field applications. Performance, flexibility, industry proven reliability and overall low total cost of ownership makes the Wedge Series an ideal solution for many industrial, defense and scientific applications.
Wedge HF 266nm: 266nm Picosecond Laser
Specifications |
|
|---|---|
| Avg. Power: | 0.180 W |
| Wavelength: | 266 nm |
| Repetition Rate: | 10-100kHz |
| Spatial Mode (M^2): | 1.5 |
| Pulse Duration: | 1.5 ns |
| Pulse-to-Pulse Stability (RMS): | 5 % |
| Cooling: | Air |
Features
- >25uJ pulse energy
- 700ps to 1ns pulse width
- 10kHz to 50kHz
- Monolithic design
- Air cooling
- Low heat waste
- MOPA configurations
Applications
- Micromachining of glass
- Specialty marking
- Thin film removal
- Non-linear spectroscopy
- Harmonic and parametric generation
- Visible to IR OPO pumping
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The Wedge-HF laser is a sub-nanosecond, single shot to 100kHz DPSS laser capable of up to 4W of average power at 1064nm and is available with harmonics options at 532nm, 355nm and 266nm.
The Wedge-HF laser is used in LIDAR and other aerospace applications, as well as micro-machining and specialty marking of glass, metals, polymers and other hard and soft materials, scientific applications, including LIBs, spectroscopy and medical diagnostics.
The Wedge-HF laser has >25uJ pulse energy, 700ps to 1ns pulse width, 10kHz to 50kHz, monolithic design, air cooling, low heat waste, and MOPA configurations.
The compact and lightweight package of the Wedge-HF laser represents a great benefit in LIDAR and other aerospace applications.
Yes, the Wedge-HF laser is a flexible platform for realizing custom solutions such as meeting specific time/energy requirements, vibe/shock or other extreme environmental conditions, as well as compliance to Mil-specifications.
