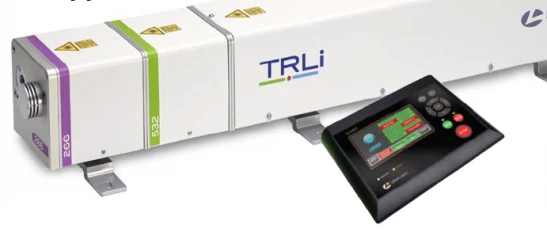

Litron TRLi HR 100-100
Description
High Repetition Rate Compact High Energy Q-switched Pulsed Nd:YAG Lasers.
Litron TRLi HR 100-100
Specifications |
|
|---|---|
| Wavelength: | 532 nm |
| Pulse Energy: | 60 mJ |
| Pulse Energy Stability: | 3 % |
| Pulse Duration: | 10 ns |
| Repetition Rate: | 0-100Hz |
Features
Twin-rod architecture for high beam homogeneity
Intelligent motorised auto-tuning of harmonics
Auto-stabilisation for ‘set and forget’ operation
Integrated motorised attenuator
Easy connections and fast start up
High energy high repetition rate output
Super Gaussian-coupled resonator
Rugged industrial design
LUCi touchscreen or PC control interface
Applications
Ti:Sa Pumping
Dye Laser Pumping
Deflashing
Cleaning
Spectroscopy
LIBS
LIDAR
Flash Photolysis
Ablation
PLD
Photoacoustic Imaging
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
The specifications of the Litron TRLi HR 100-100 include a pulse shape at 100Hz FWHM = 10.5ns, repetition rate of 100Hz, output energy of 100mJ at 532nm, pulse stability of 2% [0.6] RMS at 1064nm, pulse duration of ~10ns at 1064nm, beam diameter of 5mm, beam divergence of 2.5mrad, pointing stability of <100µrad, timing jitter of <0.5ns, linewidth of <0.7cm-1 at 1064nm, polarisation ratio of >90%, lamp life of 108 pulses, and cooling with water.
The Litron TRLi HR 100-100 features plug and play interchangeable harmonic modules, twin-rod architecture for high beam homogeneity, intelligent motorised auto-tuning of harmonics, auto-stabilisation for ‘set and forget’ operation, integrated motorised attenuator, easy connections and fast start up, high energy high repetition rate output, super Gaussian-coupled resonator, rugged industrial design, and LUCi touchscreen or PC control interface.
The applications of the Litron TRLi HR 100-100 include OPO pumping, Ti:Sa pumping, dye laser pumping, deflashing, cleaning, spectroscopy, LIBS, LIDAR, flash photolysis, ablation, PLD, and photoacoustic imaging.
The model options of the Litron TRLi HR 100-100 include built-in harmonic diode pointer, fully motorised hands free auto wavelength switching option with 532, 355, and 266nm available as a single unit.
The Litron TRLi HR 100-100 is a high repetition rate compact high energy Q-switched pulsed Nd:YAG laser.
