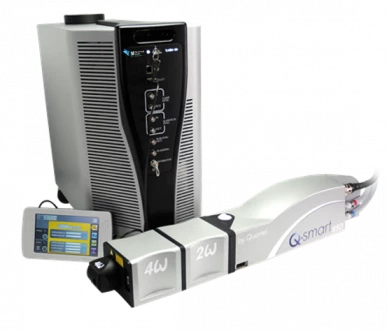

Q-smart 850
Description
The Q-smart 850 is the new pulsed Nd:YAG laser from Quantel. Controlled by the Q-Touch pad, it is a high energy, cost-effective laser system. Building on the Brilliant’s modularity and superior beam geometry, the Q-smart laser offers additional user-friendly features.
- Intuitive touch screen interface
- Innovative, hands-off harmonic generator phase matching
- Light, compact, and disconnectable
- 100 million shot flashlamp lifetime
- 2-year warranty
You can concentrate on the science of your experiment, or on the results of your application, and not have to worry that you are using a highly technical instrument. No need to adjust, align and no need to be a laser expert. Add a new module, four screws, a click on the Q-Touch, and the beam has a different color!
The Q-Smart laser can be vertically integrated in industrial environments. Ethernet control, easy flashlamp change, small footprint, and minimal volume make it the perfect candidate for system integration.
Q-smart 850
Specifications |
|
|---|---|
| Wavelength: | 1064 nm |
| Pulse Energy: | 850 mJ |
| Pulse Energy Stability: | ± 2 (0.6) % |
| Pulse Duration: | ~ 6 ns |
| Repetition Rate: | 10-10Hz |
Features
• Up to 850 mJ @ 1064 nm
• Robust and field proven technology
• Built to last thanks to ceramic reflectors and 100 million
shots flashlamp lifetime warranty
• Plug & play harmonics modules down to 213 nm, with
automatic phase-matching
• Cables and cooling lines fully disconnectable
• Intuitive touch screen interface and GUI
• Universal voltage
• SLM option (Single Longitudinal Mode)
Applications
- LiDAR
- LIBS
- MATERIAL PROCESSING
- ABLATION
- PULSED LASER DEPOSITION
- PHOTOACOUSTIC IMAGING
- DYE, OPO & Ti:Sa PUMPING
- SPECTROSCOPY
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
France
-
Sold by:
-
On FindLight:
since 2022
Frequently Asked Questions
The Q-smart 850 laser can be used for applications such as LiDAR, LIBS, material processing, ablation, pulsed laser deposition, photoacoustic imaging, dye, OPO, and Ti:Sa pumping, and spectroscopy.
The main features of the Q-smart 850 laser include up to 850 mJ energy output at 1064 nm, robust and field-proven technology, ceramic reflectors for durability, a 100 million shot flashlamp lifetime warranty, plug and play harmonics modules, intuitive touch screen interface, and universal voltage compatibility.
Yes, the Q-smart 850 laser is designed to be user-friendly with its intuitive touch screen interface and easy plug and play harmonics modules.
Yes, the Q-smart 850 laser can be vertically integrated into industrial environments due to its small footprint, minimal volume, and Ethernet control capabilities.
The Q-smart 850 laser comes with a 2-year warranty.
