Q-smart (850 mJ)
Description

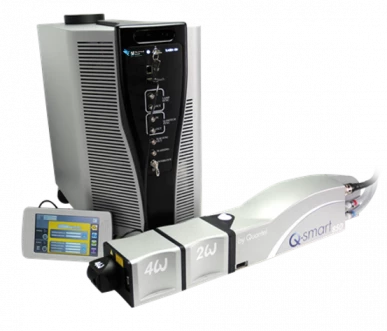

The Q-smart 850 is the new pulsed Nd:YAG laser from Quantel. Controlled by the Q-Touch pad, it is a high energy, cost-effective laser system. Building on the Brilliant’s modularity and superior beam geometry, the Q-smart laser offers additional user-friendly features.
- Intuitive touch screen interface
- Innovative, hands-off harmonic generator phase matching
- Light, compact, and disconnectable
- 100 million shot flashlamp lifetime
- 2-year warranty
You can concentrate on the science of your experiment, or on the results of your application, and not have to worry that you are using a highly technical instrument. No need to adjust, align and no need to be a laser expert. Add a new module, four screws, a click on the Q-Touch, and the beam has a different color!
The Q-Smart laser can be vertically integrated in industrial environments. Ethernet control, easy flashlamp change, small footprint, and minimal volume make it the perfect candidate for system integration.
Q-smart (850 mJ)
Specifications |
|
|---|---|
| Wavelength: | 1064 nm |
| Pulse Energy: | 850 mJ |
| Pulse Energy Stability: | ± 2 (0.6) % |
| Pulse Duration: | ~ 6 ns |
| Repetition Rate: | 10-Hz |
Features
• Up to 850 mJ @ 1064 nm
• Robust and field proven technology
• Built to last thanks to ceramic reflectors and 100 million
shots flashlamp lifetime warranty
• Plug & play harmonics modules down to 213 nm, with
automatic phase-matching
• Cables and cooling lines fully disconnectable
• Intuitive touch screen interface and GUI
• Universal voltage
• SLM option (Single Longitudinal Mode)
Applications
∙ LiDAR
∙ LIBS
∙ MATERIAL PROCESSING
∙ ABLATION
∙ PULSED LASER DEPOSITION
∙ PHOTOACOUSTIC IMAGING
∙ DYE, OPO & Ti:Sa PUMPING
∙ SPECTROSCOPY
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
France
-
Sold by:
-
On FindLight:
since 2019
Frequently Asked Questions
The Q-smart 850 is a pulsed Nd:YAG laser from Quantel that offers high energy and cost-effectiveness.
The Q-smart laser offers an intuitive touch screen interface and innovative, hands-off harmonic generator phase matching.
The Q-smart laser has a flashlamp lifetime of 100 million shots, ensuring durability and longevity.
Yes, the Q-smart laser can be vertically integrated in industrial environments due to its small footprint, easy flashlamp change, and Ethernet control.
The Q-smart laser is suitable for a variety of applications including LiDAR, LIBS, material processing, ablation, pulsed laser deposition, photoacoustic imaging, dye/OPO/Ti:Sa pumping, and spectroscopy.
