Aurora A22-10-100 OPO and integrated DPSS pump Laser
Description

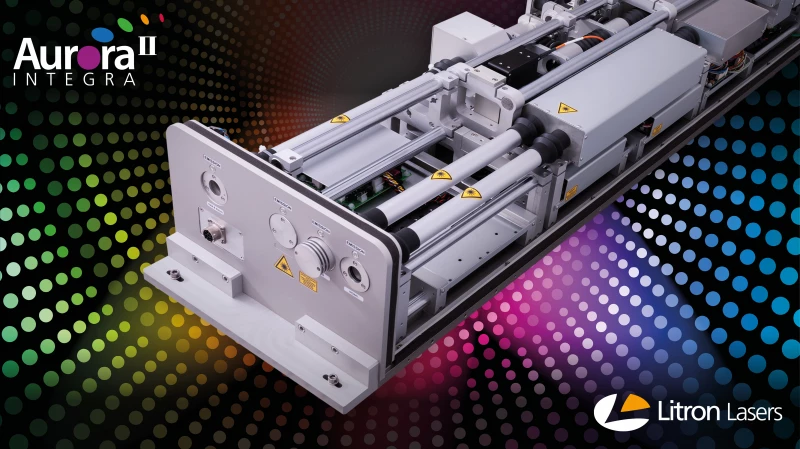

The Aurora II-355 DPSS Integra range of type II BBO OPOs has been designed with reliability, stability and ease of use in mind. This allows researchers to concentrate on their experiments and industrial systems integrators the peace of mind that their process will be consistent and robust. With a wide choice of integrated and optimised Nd:YAG pump lasers from 10Hz to 200Hz these are truly flexible systems. The Aurora II Integra is the first of a growing range of multi-wavelength systems where the OPO and pump source are supplied by the same manufacturer to offer a fully integrated single source solution. The Aurora II Integra builds on this with fully featured computer control of both the pump laser and OPO which allows ease of use and simple system integration.
Aurora A22-10-100 OPO and integrated DPSS pump Laser
Specifications |
|
|---|---|
| Total Tuning Range: | 450-1064nm |
| Core Tuning Range: | 1065-2300nm |
| Pulse Energy: | 10 mJ |
| Repetition Rate: | 100 Hz |
| Signal Polarization: | Horizontal |
| Idler Polarization: | Vertical |
Features
Tuning range 450-1064nm and 1064nm to 2.3μm
Linewidth <3cm-1
Fully integrated pump laser and OPO
Motorised OPO tuning with optional closed loop wavelength feedback
OPO optical compensation and 1064nm variable optical attenuator
Highly stable pump laser and corresponding OPO pulse energy
Full PC control via RS232
Applications
Photo Acoustic Imaging
Laser Induced Fluorescence
Photobiology
High Resolution Spectroscopy
Non Linear Spectroscopy
Remote Sensing
Process Monitoring
Combustion Research
Display Manufacture and Testing
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
The Aurora A22-10-100 OPO Laser can be used for Photo Acoustic Imaging, Laser Induced Fluorescence, Photobiology, High Resolution Spectroscopy, Non Linear Spectroscopy, Remote Sensing, Process Monitoring, Combustion Research, and Display Manufacture and Testing.
Yes, the pump laser and OPO are fully integrated in the Aurora A22-100-10 OPO Laser.
Yes, the Aurora A22-10-100 OPO Laser can be fully controlled via RS232.
The tuning range is 670-1064nm and 1064nm to 2.3μm.
The linewidth is less than 4cm-1.
