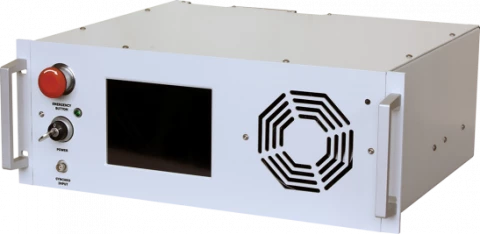

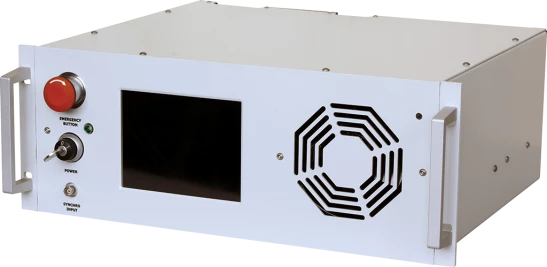

FLD-4U Flashlamp Driver
Description
FLD-4U flashlamp drivers are a family of laser power supplies for pulsed flashlamp pumped solid-state lasers such as Nd:YAG, Er:YAG, Alexandrite etc.
FLD-4U drivers are all-in-one solutions and embed all the neccessary subsystems - capacitor bank, capacitor charging power supply, simmer supply and discharge circuit (discharge circuits). FLD-4U can be equipped with up to two output channels and up to two flashlamps connected in series can be connected to the every output. In that way each FLD-4U is able to drive up to four flashlamps.
Drivers are 19"-rack mounted. Height is 4U, depth is around 400mm. All the important parameters - output voltage, pulse width and pulse repetition rate and others - can be adjusted via front panel user interface (7" colour display and touch panel) and RS-232 machine interface.
Please, check other our products, like discharge circuits, simmer supplies, capacitor chargers and FLD-kit - set of modules, which could be combined into a 1 kW to 4 kW (up to 8 kW on request) power supply for a pulsed flashlamp.
FLD-4U Flashlamp Driver
Features
- Pulsed output, variable pulse width
- Partial discharge scheme (complete discharge as an option)
- Up to 3.5 kW output power
- Up to 1350 V max. output voltage
- Display/touchscreen based user interface + RS-232 machine interface
- Embedded Pockels cell driver as an option
Applications
Flashlamp driving (lasers and IPL)
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Poland
-
Sold by:
-
On FindLight:
since 2020
Frequently Asked Questions
All the important parameters - output voltage, pulse width and pulse repetition rate and others - can be adjusted via front panel user interface (7'' colour display and touch panel) and RS-232 machine interface.
FLD-4U can be equipped with up to two output channels.
FLD-4U has pulsed output, variable pulse width, up to 3.5 kW output power, up to 1350 V max. output voltage, display/touchscreen based user interface + RS-232 machine interface, and embedded Pockels cell driver as an option.
FLD-4U is a family of flashlamp drivers (laser power supplies) for pulsed flashlamp pumped solid-state lasers such as Nd:YAG, Er:YAG, Alexandrite etc.
FLD-4U drivers are 19''-rack mounted. Height is 4U, depth is around 400mm.
