Description
SHBC is a second harmonic bandwidth compressor designed for generating narrow-bandwidth picosecond pulses from the broad-bandwidth output of PHAROS and CARBIDE femtosecond lasers.
It enables the creation of versatile optical setups using fixed-wavelength or tunable narrow-bandwidth picosecond pulses in combination with tunable-wavelength broadband femtosecond pulses. SHBC is particularly useful in sum-frequency generation (SFG) spectroscopy and femtosecond stimulated Raman spectroscopy (FSRS) applications.

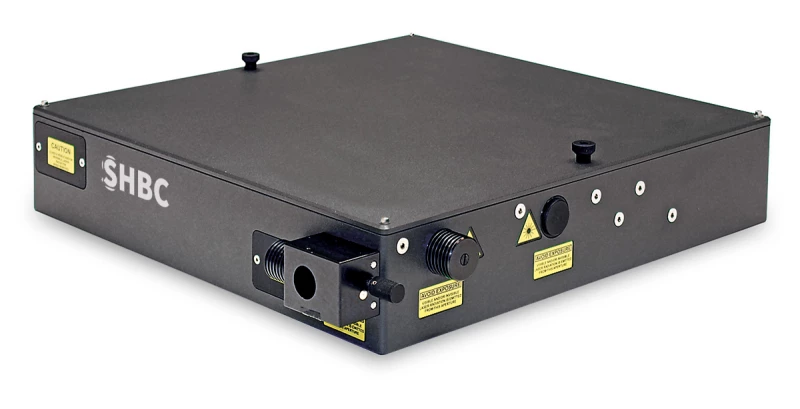

SHBC - Second Harmonic Bandwidth Compressor
Specifications
| Output Wavelength: | 515 nm |
|---|---|
| Conversion Ratio: | > 30 % |
| Output Pulse Bandwidth: | < 10 cm^-1 |
| Pulse Duration: | 2-4 ps |
| Pump Pulse Energy: | 4 mJ |
| Maximum Pump Power: | 40 W |
Download Data Sheet
Features
- Converts broad-bandwidth femtosecond laser output to narrow-bandwidth picosecond
- pulses
- Spectral bandwidth < 10 cm⁻¹
- Pulse duration of 2 – 4 ps
- High conversion efficiency (> 30%)
- Used for sum-frequency generation (SFG) spectroscopy and femtosecond stimulated
- Raman spectroscopy (FSRS)
- Compatible with PHAROS and CARBIDE femtosecond lasers
Applications
- Sum-frequency generation (SFG) spectroscopy
- Femtosecond stimulated Raman spectroscopy (FSRS)
- Nonlinear optics research
- Time-resolved spectroscopy
Frequently Asked Questions
What is the SHBC second harmonic bandwidth compressor used for?
The SHBC second harmonic bandwidth compressor is used for the formation of narrow bandwidth picosecond pulses from broadband output of ultrafast laser. It is used in applications such as Second Harmonic Generation (SHG), Bandwidth Compression, and Spectroscopy.
What is the conversion efficiency of the SHBC second harmonic bandwidth compressor?
The SHBC second harmonic bandwidth compressor has a high conversion efficiency to the narrow bandwidth second harmonic.
What is the output pulse bandwidth of the SHBC second harmonic bandwidth compressor?
The output pulse bandwidth of the SHBC second harmonic bandwidth compressor is less than 10 cm-¹.
What is the recommended area for fixing the SHBC second harmonic bandwidth compressor?
The recommended area for fixing the SHBC second harmonic bandwidth compressor is 500 × 500 × 150 mm.
What is the typical spectrum of the SHBC second harmonic bandwidth compressor output?
The typical spectrum of the SHBC second harmonic bandwidth compressor output is 0.09 cm-1.
