9829B - 51mm Photomultiplier Tube
Description
Photomultiplier Tube (PMT) by ADIT Electron Tubes.

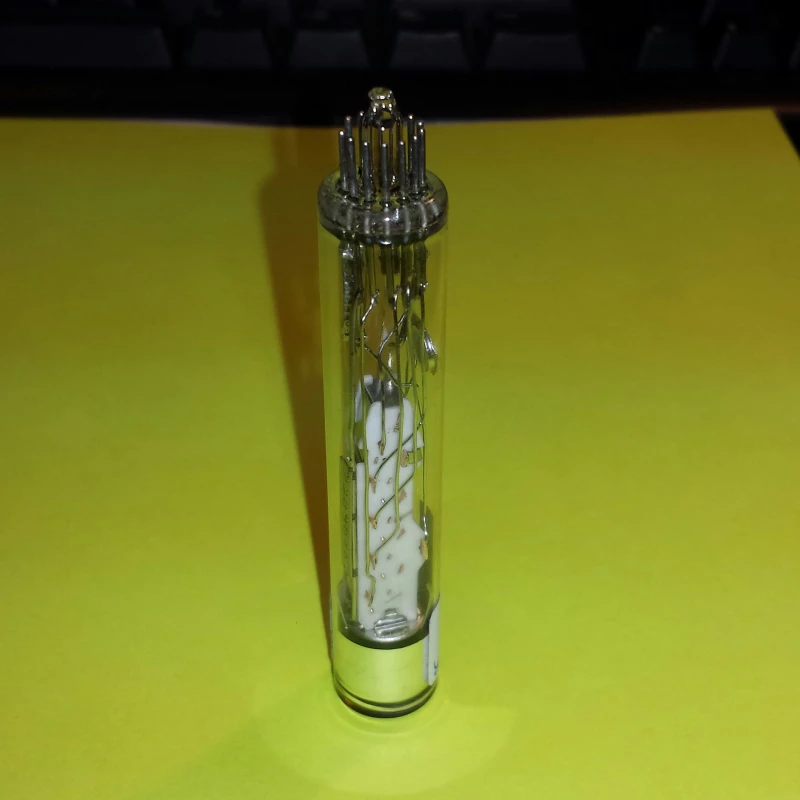

The 9829B is a 51 mm (2”) diameter, end window photomultiplier with a thin domed window, sandblasted for enhanced cathode sensitivity, blue-green sensitive bialkali photocathode and 12 BeCu dynodes of linear focused design for good linearity and timing.
The 9829QB is a variant for applications requiring uv sensitivity.
9829B - 51mm Photomultiplier Tube
Specifications |
|
|---|---|
| PMT Type: | PMT (photomutiplier tube) |
| Wavelength Of Max Response: | 350 nm |
| Wavelength Range: | 290-630nm |
| Rise Time: | 2 ns |
Features
- Fused silica option available for UV sensitivity
- Voltage dividers available
- Magnetic Shields available
Applications
- Liquid scintillation counting
- Photon counting of bio- and chemi-luminescent samples
- Low light level detection
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The 9829B is a 51 mm (2”) diameter photomultiplier tube.
The spectral range of the 9829B photomultiplier tube is 290 - 630 nm.
The 9829B photomultiplier tube is suitable for liquid scintillation counting, photon counting of bio- and chemi-luminescent samples, and low light level detection.
The dark count rate of the 9829B photomultiplier tube is 300 s-1.
Accessories for the 9829B photomultiplier tube can be chosen on request.
